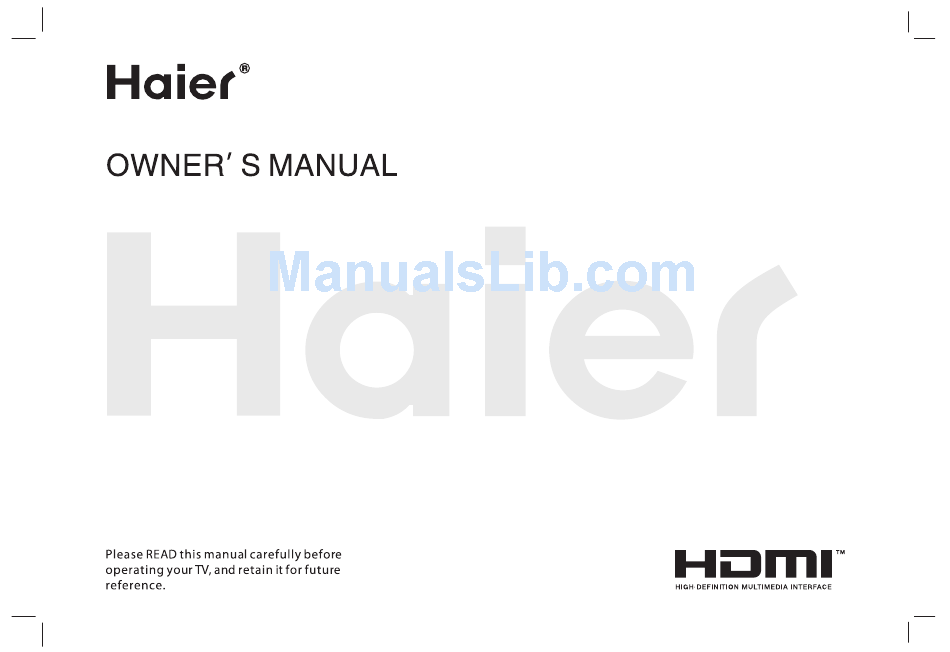

- Page 1 LE19K800/LE22K800/LE24K800...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ………………………………………………………………………………1 Important Safety Instructions Product Introduction ……………………………………………………………………………………………3 General Information………………………………………………………………………………………………3 Features……………………………………………………………………………………………………………4 Listing………………………………………………………………………………………………………………5 Installation ……………………………………………………………………………………6 & Connection ……………………………………………………………………………………………9 Panel Control Keys …………………………………………………………………………………………………10 Remote Control …………………………………………………………………………………12 Basic Operation Instruction Power On…………………………………………………………………………………………………………12 Standby……………………………………………………………………………………………………………12 Signal Source Selection…………………………………………………………………………………………12 Menu Operation Instruction ……………………………………………………………………………………12 PICTURE…………………………………………………………………………………………………………13 SOUND …………………………………………………………………………………………………………14 OSD………………………………………………………………………………………………………………15 TV…………………………………………………………………………………………………………………16... -
Page 3: Important Safety Instructions
Important Safety Instructions Thank you to choose the LCD TV with LED backlight made by our company, a valuable product with excellent quality and multiple functions. This machine will bring you more audiovisual enjoyment. Its design can insure user's safety. All machine are strictly tested before leaving factory. - Page 4 thing to knock, press, score the panel. Otherwise it will be harmful for the panel. The exchange cost is very high. 14）There is high voltage inside the machine but no parts which can be repaired by users themselves. In order to assure the people's safety, please don't open the case to repair it by yourself.
-
Page 5: Product Introduction
Product Introduction General Information ● High-quality LED backlight LCD screen, energy saving, environmental protection, ultra-thin, brilliant features. ● Having inter high quality speakers, which will give you purely audiovisual enjoyment and save your table place. ● Having many ideal connectors, you may directly connect your DVD, vidicon etc. its disport components of input connector let you enjoy beautiful image effect. -
Page 6: Features
Features ● interface specification: Interface Specification DB-15, 75Ω 0.5~0.7Vp-p H/V:TTL Level (Support mode refer to VGA Input Mode ) HDMI Video signal: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i Audio: LPCM 48KHz, 44.1KHz, 32KHz, 24Bit, 20Bit, 16Bit CVBS Input/Output 75Ω 1Vp-p (PAL/NTSC/SECAM) S-VIDEO Input Y: 75Ω... -
Page 7: Listing
Power adapter: 100-240VAC 60/50Hz Volume: 3W+3W TV receive system: PAL+NTSC/PAL+SECAM Storage channels: ● Working Environment: Atmosphere pressure: 86kPa～104kPa Temperature: 5℃～40℃ Humidity: 10%～85% ● Storage Environment: Atmosphere pressure: 86kPa～104kPa Temperature: -20℃～55℃ Humidity: 5%～95% ● VGA input mode 18.5" 21.5 / 23 "... -
Page 8: Installation & Connection
Installation & Connection Antenna Connection: It is better to use outdoor antenna or CATV cable if you want to watch the colorful and hi-definition pictures. Note: Please turn off TV power before the outdoor antenna is connected to the TV signal input port. Outdoor antenna can't be located near the high-voltage wires. - Page 9 Power Connection: nsert the power plug into the socket of the electrical source ( AC 100V-240V, 60/50Hz). Notes: 1. When connecting the power cord, be sure to turn off the machine and other equipment's power. CVBS, DVD Player or other 2.
- Page 10 Earphone Socket: The TV speakers will be shut off when earphone is inserted into this socket.( Please adjust the volume to a suitable size, to avoid sounds excessive to affect the hearing.) S-VIDEO Input Connection: Through S-VIDEO/AUDIO cables to connect external AUDIO/VIDEO equipment to the machine's AUDIO/VIDEO input port, and press "SOURCE"...
-
Page 11: Panel Control Keys
5. Hang the machine onto the slot of the wall mounting board. Then lock the two bolts on the sides. Note: Installation method is different because of Hanging arm hardware's structure ● Must install the wall pendant on firm wall surface, please do not install this machine on ceiling or vehicles. ●... -
Page 12: Remote Control
Remote Control Function Invalid POWER Turn on or standby Power Mute MUTE Eliminate sound Numerical key Number input button Freeze picture Numerical key Program list Look through program list SMART S Intelligent sound mode selection Program list SMART P Intelligent image mode selection Up or Down cursor button: function select;... - Page 13 STOP ( ROTATE ( ) PREV. ( For USB operation NEXT ( REV. ( F WD. ( Remote control battery installation method: Take off the cover of battery box, fix two AAA batteries with 1.5 volt, and conform with the polarity of remote control battery box.
-
Page 14: Basic Operation Instruction
Basic Operation Instruction Power On Plug power cord into the electrical socket, press '' '' button on the control panel, then press '' '' key on the control panel, or press ''POWER'' key on the remote control to turn on the TV. Standby Press ''Power''key on the remote control. -
Page 15: Picture
3. Press ''Up/Down'' key on the remote control or ''CH+/CH-'' on the control panel to select what is needed to adjust in sort menu. 4. Press ''Left/Right'' key on the remote control or ''VOL+/ VOL-'' on the Picture Mode Soft control panel to adjust the value or setting. -
Page 16: Sound
Function Description Option Picture Mode Select picture mode "Standard", "Soft", "User," "Bright" four modes. Contrast Adjust the contrast of whole picture Increasing analog value increases Contrast; Decreasing analog value decreases Contrast(0-100). Brightness Adjust brightness and blackness of Increasing analog value increases brightness; whole picture Decreasing analog value decreases brightness(0-100). -
Page 17: Osd
★Remote Control Shortcut Keys SMART S: Press SMART S key on the remote control. You can switch the function among the , "Standard", "Music", "Movie", "User" four modes. MUTE: Open or close sound. VOL+/VOL-: Add or reduce volume. Option Function Description Sound Mode Adjust audio effect mode... - Page 18 Option Function Description OSD Language elect language for OSD display There are many languages to select OSD Duration Adjust duration of OSD menu Increasing analog value, extend duration time of OSD menu; (15, 30, 45, 60). Unit: second OSD Transparency Adjust halftone of OSD menu Increasing analog value increases halftone;...
- Page 19 Press "Right" cursor key to cancel operation and continue auto search ). All of the TV programs will be saved automatically. Auto Search Manual Search Found Progtranme Select to enter the submenu of . Then press ''Up/Down'' key on the remote control or ''CH+/CH-''on the control panel to select '' Manual Search ''.
-
Page 20: Hotel Function(Optional)
Skip: Press ''Up/Down'' key on the remote control to select channel, press ''3'' key on the remote control to open or close ''Skip . " Select Channels with "CH+/CH-" Key Press ''Channel'' key on the remote control or "CH+/ CH-" key on the control panel to select the channels. -
Page 21: Usb Signal Source Operation
USB Signal Source Operation Please insert USB memory card into USB interface of TV, press "SOURCE" key on the remote control or control panel to select USB signal source, press "OK" key to enter. Note: ① USB function support file format with video file/sound file/graphic file/text file. For some nonstandard USB storage devices, may appear condition of unable recognize, please USB 2.0 replace the standard USB storage device. - Page 22 Select to return previous menu. Press cursor key on the remote control to select photo and press "OK" key ( After the photo was selected, the file lower right corner shows a red hook. you can choose photos to join playlist.). Press "PLAY" key on the remote control to play.
- Page 23 MUSIC The operations are similar to the "PHOTO". Please refer to "PHOTO" options. Basic Function Press "Left/Right" key on the remote control to select this function, press "OK" key to fast back. Press "PLAY" key to play normally. Press "Left/Right" key on the remote control to select this function, press "OK"...
-
Page 24: Simple Troubleshooting
Simple Troubleshooting Symptom Factor Solution 1.Antenna cable connector is loose 1.Check the antenna cable connector plug whether or cable is damaged. not loose, cable whether or not perfect. 2.Channel setting is incorrect. 2.Refer to channel setting method, resetting again. Snowflake speckle and 3.Antenna cable type is not matching. - Page 25 Symptom Factor Solution Computer no display, and Check signal cable whether or not loose, fall off, prompt no signal input, red Signal cable is loose or fall off. reconnect well again. indicator LED twinkling. 1.Receive window of remote 1.Remove objects, avoiding cover the receive continue was covered by Remote control distance is window of remote control.
