labeled VGA. Repeat this for all PCs.

Step 6

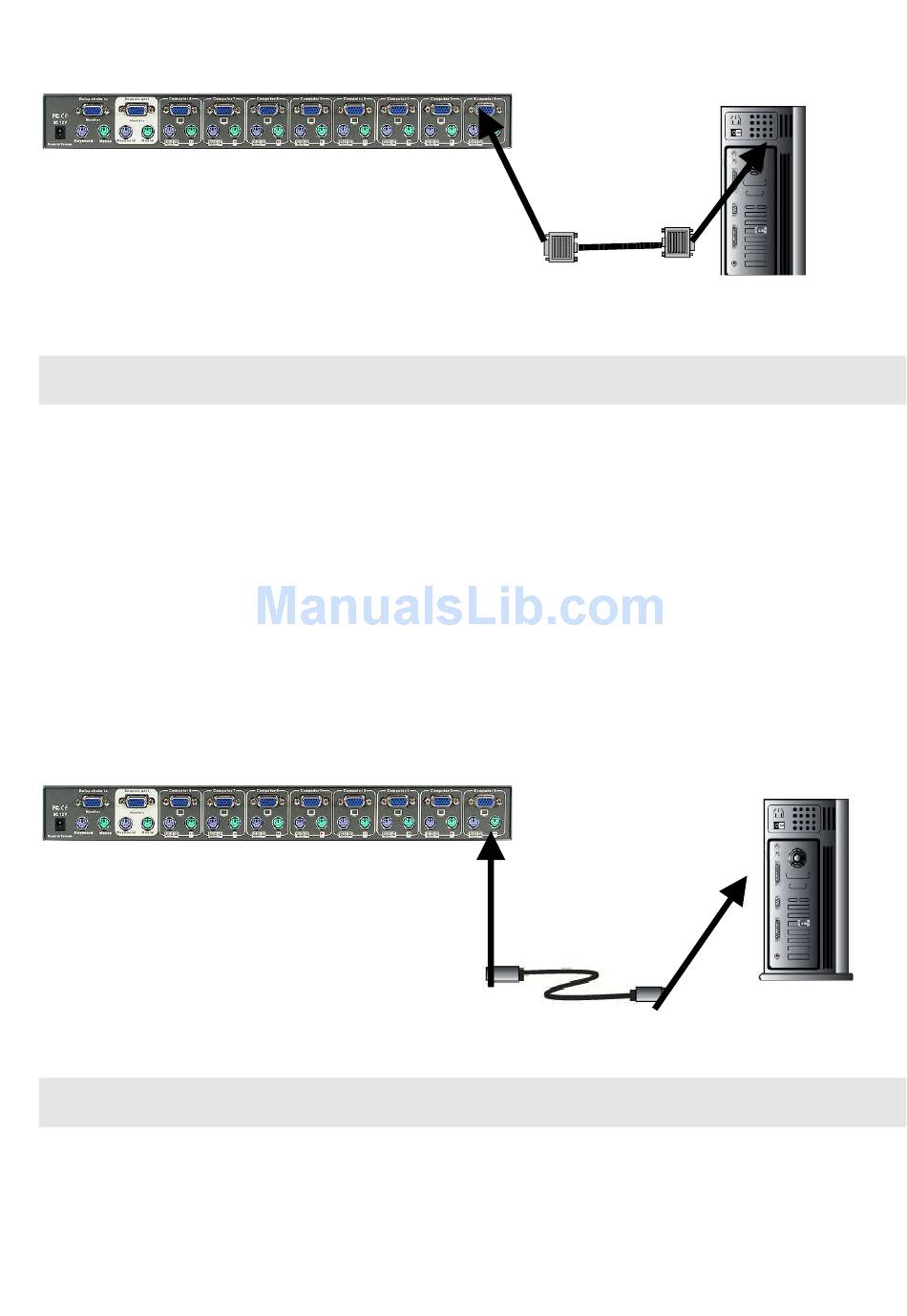

Connect the first computer's mouse cable to the DKVM-

8E. If using a PS/2 cable, connect one end to the PS/2

mouse port on the computer, and the other end to the PC1

PS/2 mouse port on the back of DKVM-8E. If using a serial

mouse cable, connect one end to a DB-9 serial port on the

computer, and the other end to the PC1 DB-9 serial mouse

port on the back of the DKVM-8E.

Step 7

Connect the first computer's keyboard cable to the DKVM-

8E. Using another PS/2 cable connect one end to PS/2

keyboard port on the computer, and the other end to the

PC1 keyboard port on the back of DKVM-8E. If your

- 8 -
