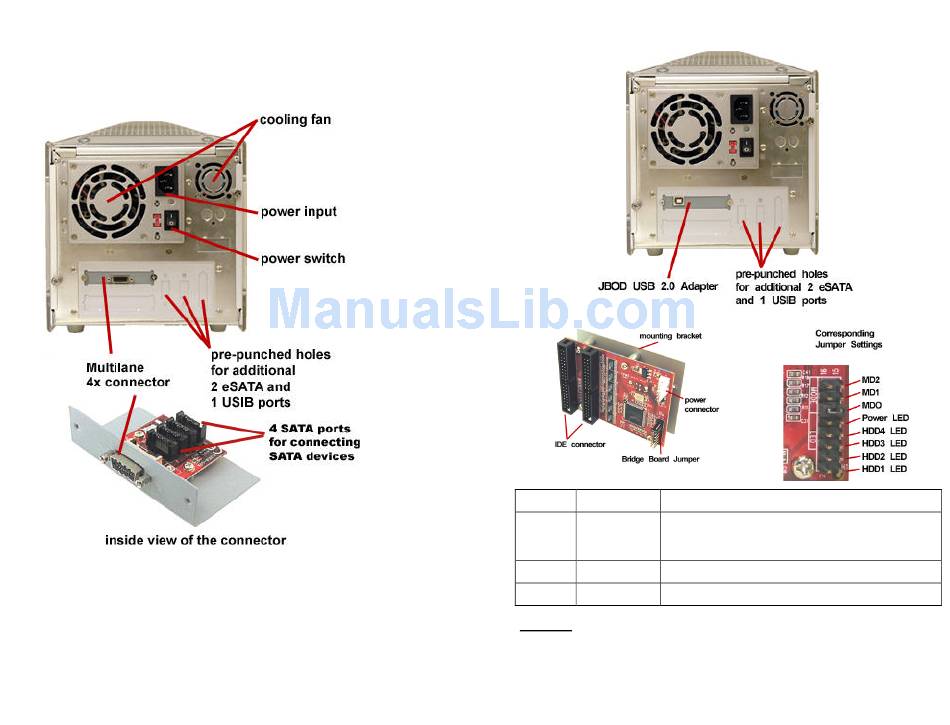

Tower with Multilane Connector

Hot swap feature depends on the SATA controller. All Addonics SATA controllers
support the hot swap feature. Check with your system supplier to confirm the
existing SATA port on your system supports hot swap feature.
Note: It is important that you have configured your Multilane Host controller
before connecting it to the tower.
Tower with JBOD USB 2.0 Adapter
MODE # MODE Description
MD2 2 HDD Mode ON: Combines P1 (two disk drives as one large disk
drive) and combines P3 (two disk drives as another
entire disk drive
MD1 1 HDD Mode ON: Combines 4 disk drives as one large disk drive
MD0 4 HDD Mode ON: Separate 4 hard drives
Important
o IDE drive settings must be set to one MASTER and one SLAVE if two drives
will be connected on a single IDE ribbon.
o Connect the MASTER drive at the end of the cable and the SLAVE drive at
the middle.
