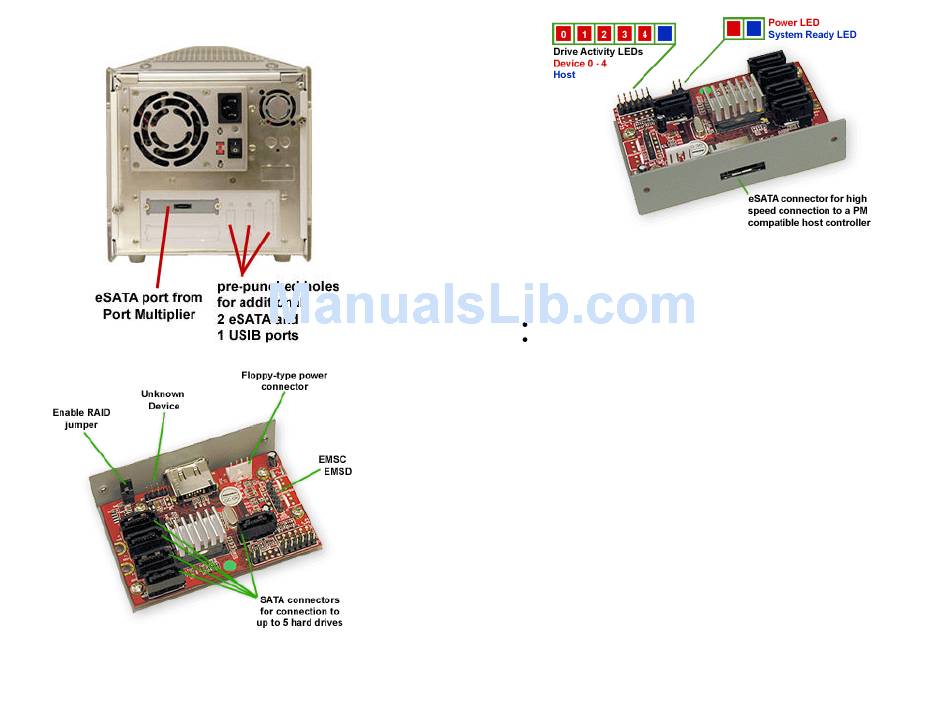

Tower with Hardware Port Multiplier

Note: You need to install the SiI4726 Manager on your system to configure RAID
sets.
RAID configuration is programmed by connecting the hardware port multiplier:
to one of Addonics' SATA controllers that has SIL3124 or SIL3132 chip set.
via USB 2.0 connection (optional Addonics eSATA-USB adapter is required)
After RAID configuration, it is compatible with any SATA controller (RAID or non
RAID)
Software Installation for SiI4726 Manager
A. From the CD start-up menu select SATA RAID Utilities > Other
SATARAID Utilities > Windows 2000/XP/2003/Vista.
B. Unzip the file SiI_4726_Manager_V4.0.0.9.zip on your drive. The folder
name would be SiI4726.
C. To install SiI4726 Manager, double click setup.exe
In SiI4726 Manager, all the drives connected to the
AD5SAHPM-E will show up.
For a complete User's Guide of SiI4726 refer to our website.
Support > User Guides > SiI4726 Manager User Manual V.26
