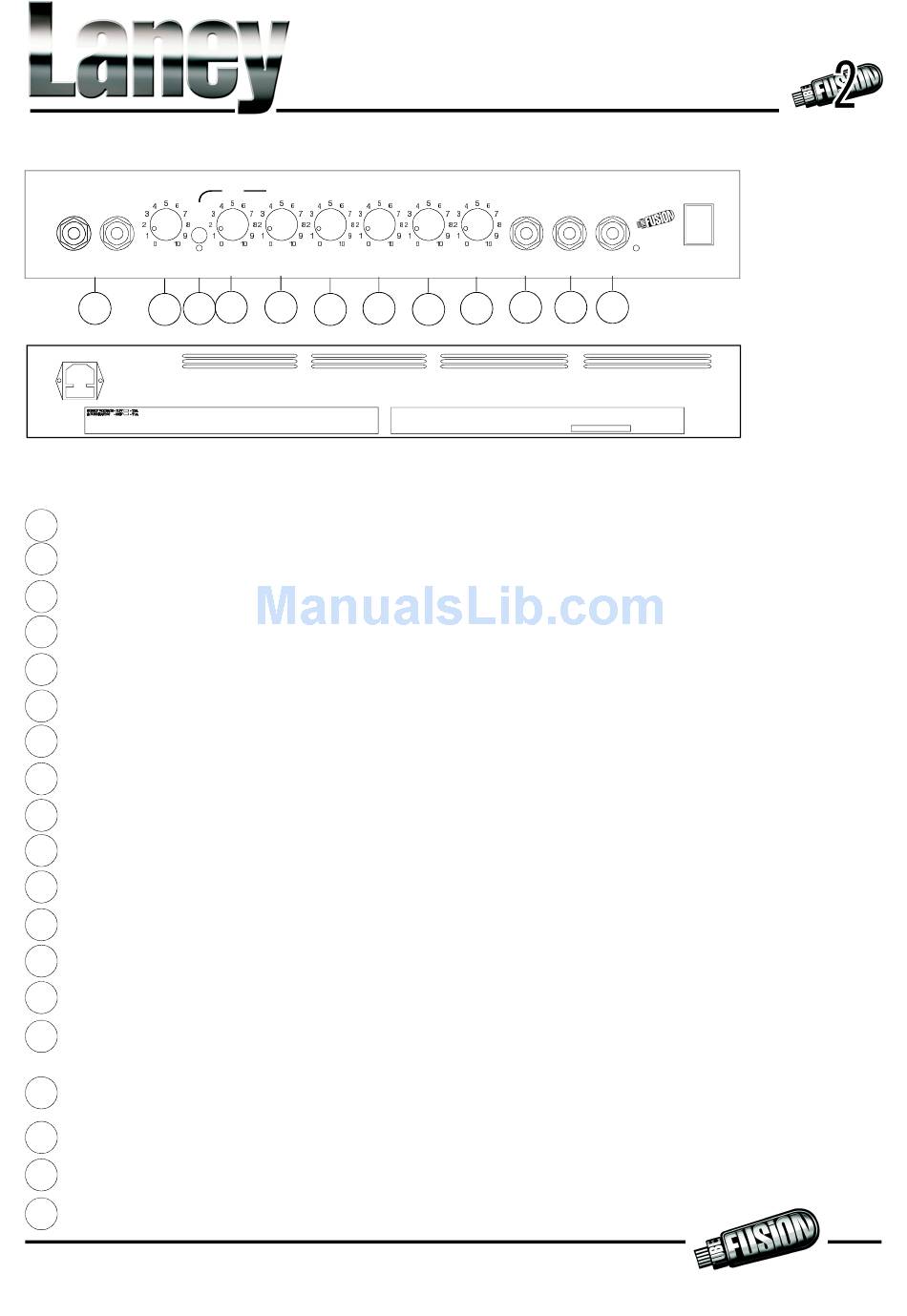

Tf50 Controls - Laney Tube Fusion User Manual

TF50
VOLUME
HI LO
INPUT CHANNEL
1 7
2
ATTENTION REMPLACER LE FUSIBLE PAR LE
MEME ET LE CALIBRE
MAXIMUM POWER
CAUTION TO REDUCE THE RISK OF FIRE
WARNING THIS EQUIPMENT MUST BE EARTHED. MADE IN THE UNITED KINGDOM BY BLT
INPUT: This socket should be used for connecting the instrument to the amplifier.
1
VOLUME: Adjusts the overall volume of the CLEAN channel.
2
BRIGHT SWITCH: Adds brightness and sparkle to the upper frequencies of the clean and clean-drive channel.
3
BASS: Controls the clean channel low-frequency-EQ in the pre-amplifier.
4
MIDDLE: Controls the clean channel mid-frequency-EQ in the pre-amplifier.
5
TREBLE: Controls the clean channel high-frequency-EQ in the pre-amplifier.
6
DRIVE SWITCH: Engages the onboard DRIVE circuit. DRIVE is foot-switchable (FS2 footswitch not supplied).
7
DRIVE: This pot controls the amount of valve-drive applied to the circuit.
8
VOLUME: Sets the overall volume-level of the DRIVE channel.
9
ENHANCE: Removes the level of mid-frequencies within the signal, producing a monstrous scooped tone!
10
BASS: Controls the drive channel low-frequency-EQ in the pre-amplifier.
11
MIDDLE: Controls the drive channel mid-frequency-EQ in the pre-amplifier.
12
TREBLE: Controls the drive channel high-frequency-EQ in the pre-amplifier.
13
REVERB: Controls the level of REVERB assigned to each channel.
14
HEADPHONES: Socket provided for the connection of quality headphones (connecting headphones automatically disconnects the
15
onboard speaker).
SPEAKER SOCKET: Speaker socket for connecting the onboard speaker. If you wish to use an external speaker you must first
16
disconnect the onboard speaker from this socket and connect the external speaker in its place.
17
RETURN: Socket provided to accept the return-signal from an effects-unit, used in conjunction with FX SEND (18).
18
SEND: Socket provided to send signal to an effects-unit, used in conjunction with FX RETURN (17).
REMOTE: Connect an optional FS2 footswitch to allow the foot-switching of REVERB & DRIVE.
19
DRIVE VOLUME BASS MIDDLE
8 9
12
11
CAUTION TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT REMOVE HEADPHONES
COVERS NO USER SERVICEABLE PARTS
TREBLE REVERB
REMOTE EXT.
SPEAKER
19 37
14
13
WARNING TO REDUCE THE RISK
SPEAKER
OF FIRE OR ELECTRIC SHOCK DO
4 OHM
NOT EXPOSE THE APPLIANCE TO
1
TF50
0
POWER
HEAD
PHONES
15
REMOTE
RING -
