Summary of Contents for Elite Screens C

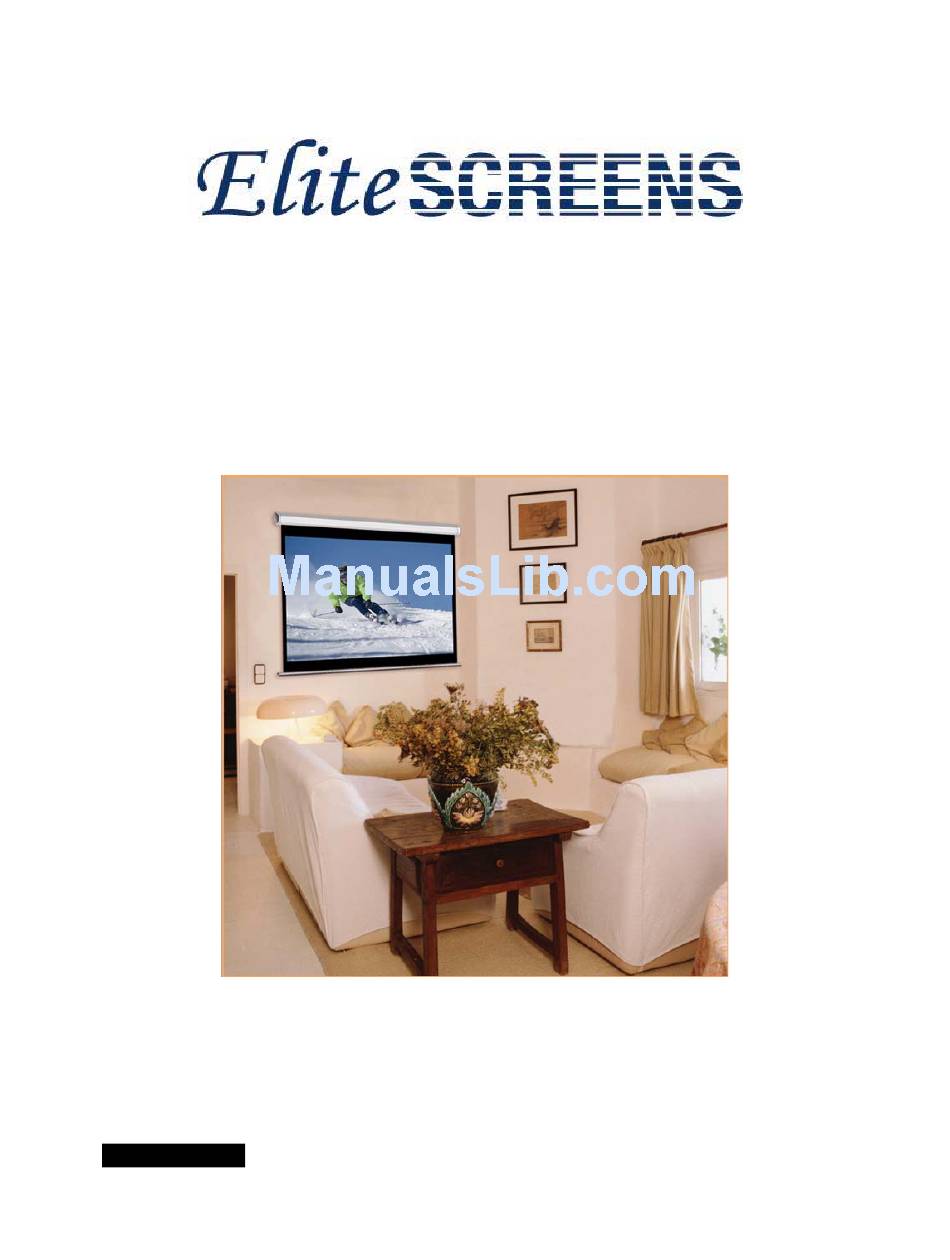

- Page 1 Manual Pull-Down Screen Elite Manual Series -TYPE C- USER’S GUIDE MATTE WHITE Rev. 1.3...
-
Page 2: Pre-Installation
Pre-installation 1. Carefully unpack the screen 2. Always handle the screen in a leveled position on a clean surface. Installation Flush Wall Mounting 1. Using a tape measure, mark the keyholes that are located at the back of the screen’s case end cap. 2. After marking the area and predrilled hole, insert the screw and leave about 1/8”... - Page 3 Loops Fig. 2 2. You can also hang the screen on a ceiling by using a chain with s-hooks (not included) and hang it by the two loops located on each end of the case as shown on Fig. 2. “L”...
- Page 4 “L” Bracket accessories “L” Brackets Installation Wood/Dry Wall installation: Use “B” wood screws provided for installation on wood studs on wall. Or use “E” hollow wall anchors provided in conjunction with the wood screws for dry wall installation as shown on Fig. 3. Hang from your screen’s loops located on the end Fig.
-
Page 5: Screen Operation
SCREEN OPERATION Note: Always pull the screen down in a 90-degree vertical angle and do not allow the screen to touch the screen case when the screen comes down to avoid damaging the screen material. Fig. 5 1. Pull the screen down from the rope or from the handle only in a 90-degree angle. Do not attempt to pull the screen down by the surface or touch the screen, as it will damage the screen and void the warranty. - Page 6 NOTE: Regardless of mounting method, screen should be securely supported so that vibration or even abusive pulling on the viewing surface will not cause case to work loose or fall. Installer must insure that fasteners used are of adequate strength and suitable for the mounting surface chosen.
