Elite Screens CineTension B Series Adjustment Instructions

Limit switch adjustment instructions for CineTension B Series

NOTE: Elite Screens does not recommend making unnecessary adjustments to the screen, as improper
adjustments will damage the unit and may void your warranty.

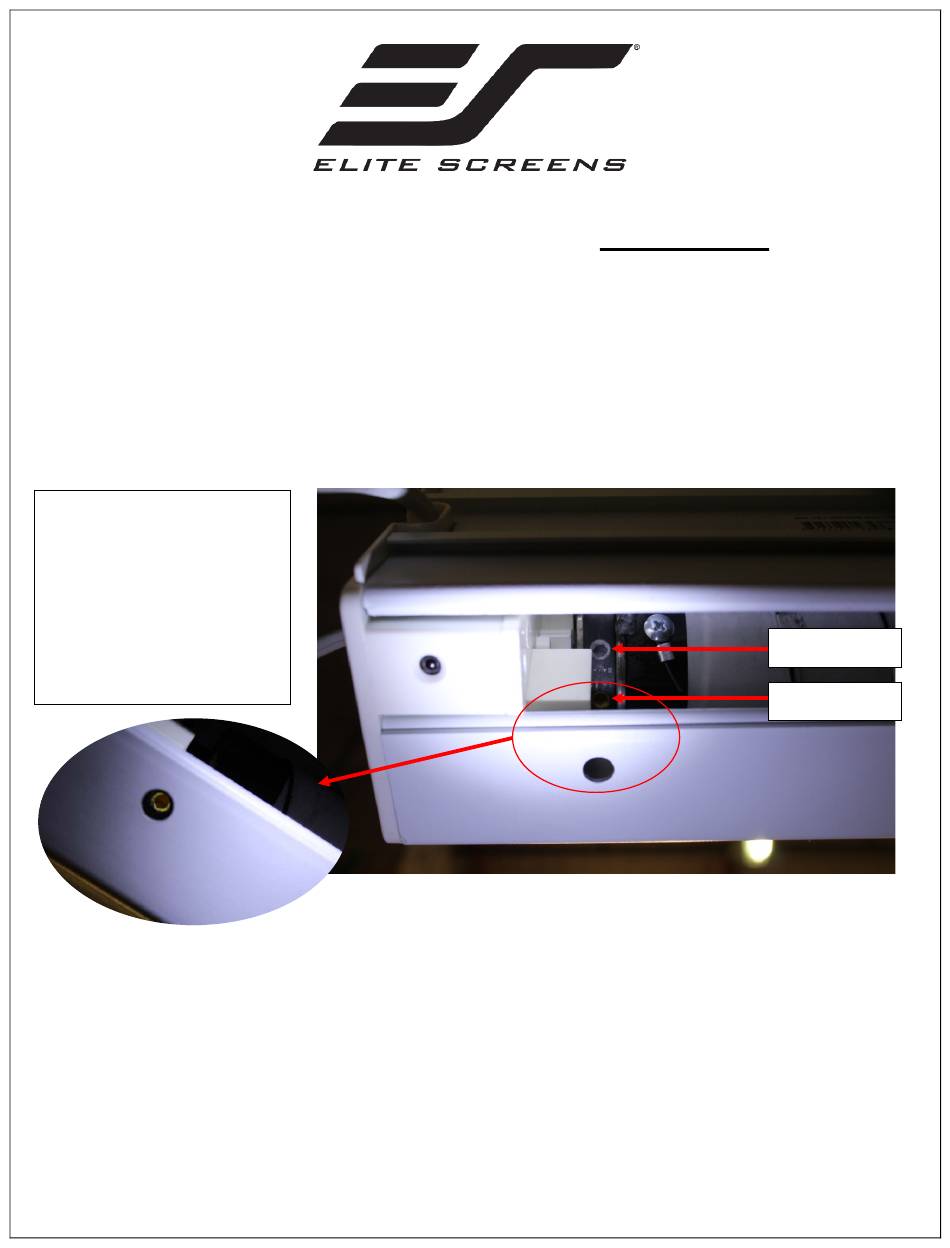

The upper and lower limit switches are located in the right end of the screen housing when facing the screen.
Please refer to the fig. below to locate the upper and lower limit switches.
The white limit switch
accessed where the screen is
deployed.
The yellow limit switch can only
be accessed through the hole
located at the bottom right end
of the screen.
NOTE: When turning the limit switches, bear in mind that a full‐circle turn in either direction will create a one
inch adjustment.
A. If you over adjust the rise position, the screen will attempt to go further into the case and cause it jitter
and bounce.
B. If you over adjust the drop position, the screen will begin to reverse itself back up.
C. Reversing the adjustments should bring the screen back to normal operation
Rev. 03/28/17
For safety reasons, never disassemble the limit switch.
is
1
White = DROP
Yellow = RISE
