Summary of Contents for Bosch UML-19P-90

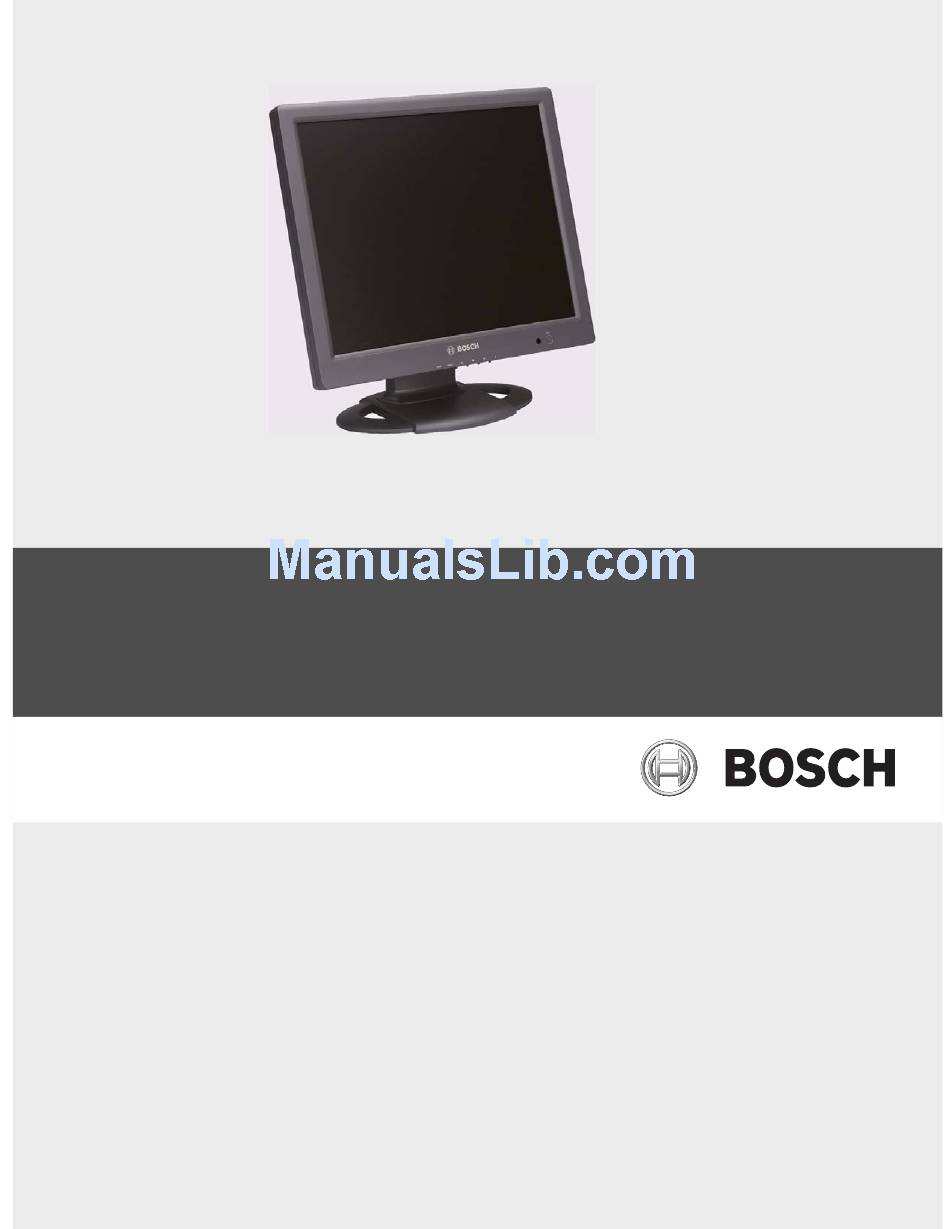

- Page 1 19-inch LCD Flat Panel Monitor UML-19P-90 User’s Manual...
-
Page 2: Table Of Contents
Navigating the Front Panel Navigating the Monitor On-screen Display (OSD) On-screen Display Menus Auto Adjust Screen Utility Language 6.10 Audio Power Management Power Consumption LED Indicator Trouble Shooting Guide Maintenance Bosch Security Systems, Inc. User’s Manual F01U099396 | 1.0 | 2008.11... - Page 3 | Table of Contents UML -19P-90 LCD Monitor F01U099396 | 1.0 | 2008.11 User’s Manual Bosch Security Systems, Inc.
-
Page 4: Safety
ON/OFF switch is in the ON position. The power cord is the main power disconnect device for switching off the voltage for all units. Bosch Security Systems, Inc. User’s Manual F01U099396 | 1.0 | 2008.11... -
Page 5: Safety Precautions
17. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment. -
Page 6: Important Notices
U.S.A. models only - Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides information regarding proper grounding of the mount and supporting structure, grounding of the coax to a discharge unit, size of grounding conductors, location of discharge unit, Bosch Security Systems, Inc. User’s Manual F01U099396 | 1.0 | 2008.11... - Page 7 Please dispose of these units at an environmentally compatible recycling facility, per European Directive 2002/96/EC. Environmental statement - Bosch has a strong commitment towards the environment. This unit has been designed to respect the environment as much as possible.
- Page 8 UML -19P-90 LCD Monitor Safety | en Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
- Page 9 UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING-RELATED FUNCTIONS OF THIS PRODUCT. Copyright This user guide is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
-
Page 10: Customer Support And Service
UML -19P-90 LCD Monitor Safety | en Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers Repair Center Telephone: 800-566-2283 Fax: 800-366-1329 E-mail: repair@us.bosch.com... - Page 11 | Safety UML -19P-90 LCD Monitor F01U099396 | 1.0 | 2008.11 User’s Manual Bosch Security Systems, Inc.
-
Page 12: Unpacking
VGA to VGA (D-SUB) cable, 1.5 m (5 ft) Power Supply (brick): UML-19P-90: 12 VDC, 4.16 A, 100-240 VAC, 50/60 Hz ,1.1 m (3.5 ft) DVI-D to DVI-D Cable, 1.5 m (5 ft) Audio Cable, PC style, 1.1 m (3.5 ft) Exploded View Figure 3.1 Front Panel... -
Page 13: Description
5.5 mm Input Jack 12 VDC Description The Bosch UML-19P-90 is a 19-inch, high-resolution VGA color monitor for use with digital video recorders (DVR) and PC applications. Monitor control functions are accessed via the front panel push buttons and the multi- language On-screen Display (OSD). -
Page 14: Power
To prevent overheating, ensure that the ventilation openings on the rear of the monitor are not covered. Mounting the Monitor The UML-19P-90 is designed for use on a desktop or mounted to a wall or rack. 5.2.1 Desktop Installation The UML-19P-90 is delivered with a 3-pole US-style power cord and a 2-pole Euro-style power cord. -
Page 15: Rack-Mount Installation
Rack-mount Installation To rack the UML-19P-90 using the RMK-08 mounting bracket, do the following: NOTICE! Prior to installing the UML-19P-90 monitor to the RMK-08 rack mount bracket, four (4) user supplied rack mount screws and clips are required. Use a Phillips head screw driver to remove the base of the monitor. - Page 16 Adjust the location of the inner brackets so they align flush with the inner threaded holes on the back of the monitor. Secure the RMK-08 rack mount bracket to the UML-19P-90 flat panel from the back side using the VESA 100 mm mounting points and the supplied four (4), M4*8 Phillips screws.
-
Page 17: Connecting The Pc Signal To The Monitor
Figure 5.5 DVI Input Navigating the Monitor Navigating the Front Panel Use the front panel to make any necessary OSD adjustments to the UML-19P-90. See the figure below for an explanation of the front panel. Figure 6.1 Front Panel Buttons F01U099396 | 1.0 | 2008.11... -
Page 18: Navigating The Monitor On-Screen Display (Osd)
Standby/Power Off (red) Navigating the Monitor On-screen Display (OSD) The UML-19P-90 have two (2) modes: VGA and DVI. The LCD is programmed through the on- screen display (OSD) menus and submenus where an operator can select operating parameters. To access the OSD menus, press the Menu button. Use the front panel of the monitor to make any necessary adjustments to the OSD. -
Page 19: Auto Adjust
Auto Adjust submenu options. Note: Auto Adjust is only available in DSUB Analog (VGA) mode. AUTO ADJUST ENTER: ADJUST: EXIT: MENU Resolution* Horizontal Frequency* Vertical Frequency* * Displays information about the current graphics adapter settings. F01U099396 | 1.0 | 2008.11 User’s Manual Bosch Security Systems, Inc. -
Page 20: Screen
Adjusts the contrast level for video performance (range - MIN, 1-99%, MAX). Adjusts the horizontal position for the desktop (range - MIN, 1-99%, H. POSITION MAX). Note: not available in DVI Digital mode. Bosch Security Systems, Inc. User’s Manual F01U099396 | 1.0 | 2008.11... -
Page 21: Rgb
Adjusts the color Red (range - MIN, 1-99%, MAX) Adjusts the color Green (range - MIN, 1-99%, MAX) GREEN Adjusts the color Blue (range - MIN, 1-99%, MAX) BLUE F01U099396 | 1.0 | 2008.11 User’s Manual Bosch Security Systems, Inc. -
Page 22: Utility
Language icon. Press the up and down arrows to select the Language submenu options. DVI Digital and DSUB Analog (VGA) Modes ENGLISH FRANCAIS DEUTSCH ESPANOL KOREAN 1280x1024 63.9 kHz 60Hz Bosch Security Systems, Inc. User’s Manual F01U099396 | 1.0 | 2008.11... -
Page 23: Osd
Input button, then press the left and right arrows to select the Audio icon. Press the up and down arrows to select the Audio submenu options. DVI Digital and DSUB Analog (VGA) Modes AUDIO VOLUME AUDIO MUTE 1280x1024 63.9 kHz 60Hz F01U099396 | 1.0 | 2008.11 User’s Manual Bosch Security Systems, Inc. -
Page 24: Power Management
The video card should be completely seated in its slot and the computer switched ON. Display image is not centered, is Push the up key to activate the Autoset function. too small, or too large in the VGA mode Bosch Security Systems, Inc. User’s Manual F01U099396 | 1.0 | 2008.11... -
Page 25: Maintenance
Ketone type materials – Ethyl alcohol – Ethyl acid – Tolulene – Methyl chloride – Ammonia Use of these materials may permanently damage the polarizer due to a chemical reaction. F01U099396 | 1.0 | 2008.11 User’s Manual Bosch Security Systems, Inc. - Page 28 Phone: +65 6319 3450 Telephone +1 888-289-0096 Fax: +31 40 2577 330 Fax: +65 6319 3499 +1 585-223-9180 emea.securitysystems@bosch.com apr.securitysystems@bosch.com Email: security.sales@us.bosch.com www.boschsecurity.com www.boschsecurity.com www.boschsecurity.us © Bosch Security Systems, 2008; F01U099396 | 1.0 | 2008.11; Data subject to change without notice.
