Bosch NBN-498 User Manual

Video | NBN-498 Dinion2X Day/Night IP Cameras

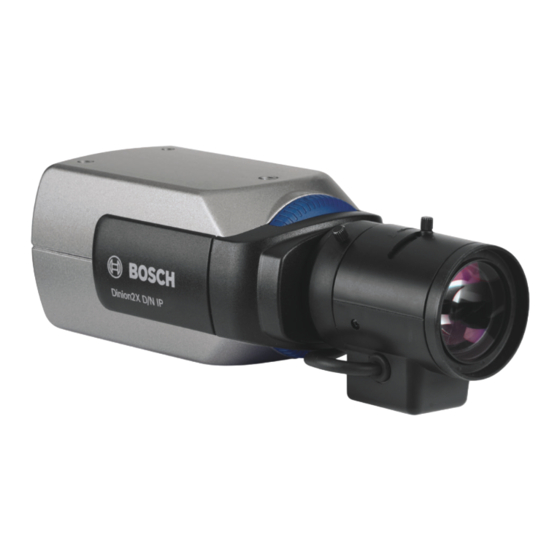

NBN-498 Dinion2X Day/Night IP Cameras
www.boschsecurity.com
Dinion2X Day/Night IP cameras are progressive scan
CCD cameras. They can quad-stream video
simultaneously — on two H.264 streams, an I-frame
recording stream, and an M-JPEG stream. Equipped
with 20-bit DSP with 2X‑dynamic, they have a wide
dynamic range for a sharper, more detailed image with
outstanding color reproduction.
Features such as multicasting, internet streaming and
iSCSI recording are fully supported. Dinion2X Day/
Night IP cameras have built-in video motion detection
and additional processing power for video content
analysis systems.
Supporting the award-winning Dinion2X digital imaging
technology, they provide proven, dependable service
for the most demanding security and surveillance
requirements, day or night.
Functions
Progressive scan
To capture sharp images, even in busy scenes with
high motion content, the Dinion camera uses
progressive scan technology.
Superior image quality
With a 1/3-inch CCD and Bosch's advanced digital
signal processing, the Dinion2X Day/Night IP camera
provides outstanding image quality in virtually all
situations. The highly accurate 20-bit digital signal is
1/3-inch Day/Night CCD with progressive scan
u
20-bit image processing technology
u
Wide Dynamic Range, 2X‑dynamic engine and
u
SmartBLC
Quad streaming
u
Flexible recording options
u
automatically processed to reveal every detail of the
image in both the high and low-light areas of the scene
simultaneously.
20-bit Image Processing
The highly accurate digital signal processing optimally
captures the detail in both bright highlights and deep
shadows simultaneously. By combining 20-bit image
processing and wide dynamic range, the Dinion2X
maximizes the information visible in the picture even
with strong backlight.
Wide Dynamic Range
The superior wide dynamic range performance for all
lighting conditions reveals details previously unseen.
2X-Dynamic and SmartBLC
Using 2X-Dynamic technology, pixel-by-pixel analysis
provides the user with the most detailed information.
Turn on SmartBLC to automatically compensate the
image without the need for complicated set-up or
without compromising dynamic range. Features such
as Autoblack and Sharpness further improve the
details in a scene, pixel by pixel.
Programmable Modes
Six independent, pre-programmed operating modes
support typical applications, but are fully
programmable for individual situations.
