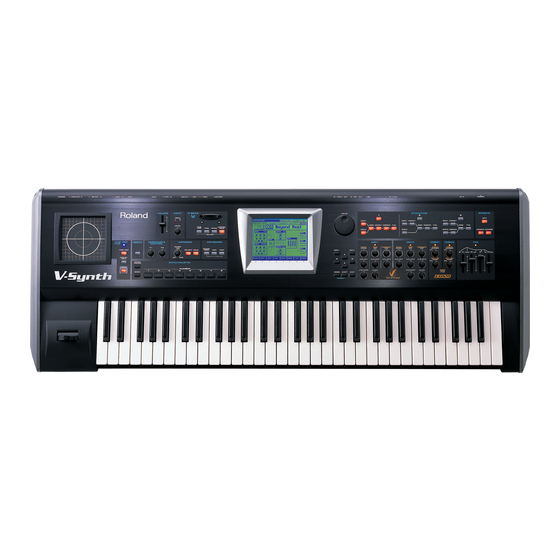

Roland V-Synth Owner's Manual

V-synth version 2.0
Hide thumbs Also See for V-Synth:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Service Notes
Errata
We apologize for the following errors in the V-Synth XT Owner's Manual.
Please make the corrections listed below.
P.39 Step 6
(Incorrect)
To save your patch, use the procedure described in "Saving Patches
(PATCH Write)" (p. 51).
(Correct)
To save your patch, use the procedure described in "Saving Patches
(PATCH Write)" (p. 53) and "Saving Project on Disk (Save
Project)" (p. 132) .
*
If you want to save a patch you created in the Sound Shaper,
you must also execute "Save Project" (p.53) in addition to
"PATCH Write" (p.132). If you don't execute "Save Project,"
the PCM oscillator of the patch you created in Sound Shaper
will no longer sound the next time you turn on the power.
P.54 right column
"About Multitimbral Performance"
(Add)
The effect settings of Part 1 are used by all parts.
The arpeggiator works only on Part 1.
P.57 right column "Demo Mode"
(Incorrect)
Demo Mode
(Correct)
Features Mode
P.77 right column Step 6
(Incorrect)
Save your patch as described in "Saving Patches (PATCH Write)" (p. 74).
(Correct)
Save your patch as described in "Saving Patches (PATCH Write)" (p. 74)
and "Saving Project on Disk (Save Project)" (p. 132) .
*
If you want to save a patch you created in the Sound Shaper,
you must also execute "Save Project" (p.74) in addition to
"PATCH Write" (p.132). If you don't execute "Save Project,"
the PCM oscillator of the patch you created in Sound Shaper
will no longer sound the next time you turn on the power.
P.98 right column "Zone Settings (Zone)"
(Add)
By holding down [SHIFT] and playing the keyboard, you can switch to
the zone that includes that note-on.
* You can't switch zones by playing more than one key while you hold
down [SHIFT]. You'll need to release [SHIFT] and press it again each
time you play the keyboard.
* This function will not operate if the arpeggiator is on.
P.99 right column Step 10
(Add)
Each zone works just like a single patch. You can create the sound for a
zone from scratch in the same way as for a patch, as described in the
procedure "Creating a patch" (p.72). If you want to assign a different
patch sound to a zone, use Patch Copy (p.73) to copy the patch settings to
the desired zone.
V-Synth Version 2 LEAFLET
P.101 left column "The concept of a Rhythm Kit"
(Add)
When you're using Rhythm mode, the effect you specify for the Rhythm
part will also apply to the other parts (non-rhythm parts) you're using.
P.102 right column Step 3
(Add)
You can also switch notes by holding down [SHIFT] and playing the
keyboard.
* You can't switch notes by playing more than one key while you hold
down [SHIFT]. You'll need to release [SHIFT] and press it again each
time you play the keyboard.
* This function will not operate if the arpeggiator is on.
P.110 right column "Beat"
(Incorrect)
Value
Numerator:
1–31
(Correct)
Value
Numerator:
0–31
* If you set this to 0, no time signature accent note will be sounded.
P.122 left column
"Patch Remain (Patch Remain Switch)"
(Incorrect)
Specifies whether currently sounding notes will continue sounding when
another patch is selected (ON), or not (OFF).
(Correct)
Specifies whether currently sounding notes will continue sounding when
another patch is selected (ON), or not (OFF).
* This function is valid only when the effect is turned off.
For the latest information about MIDI Implementation, please visit
http://www.roland.com/
40670934
1PD
