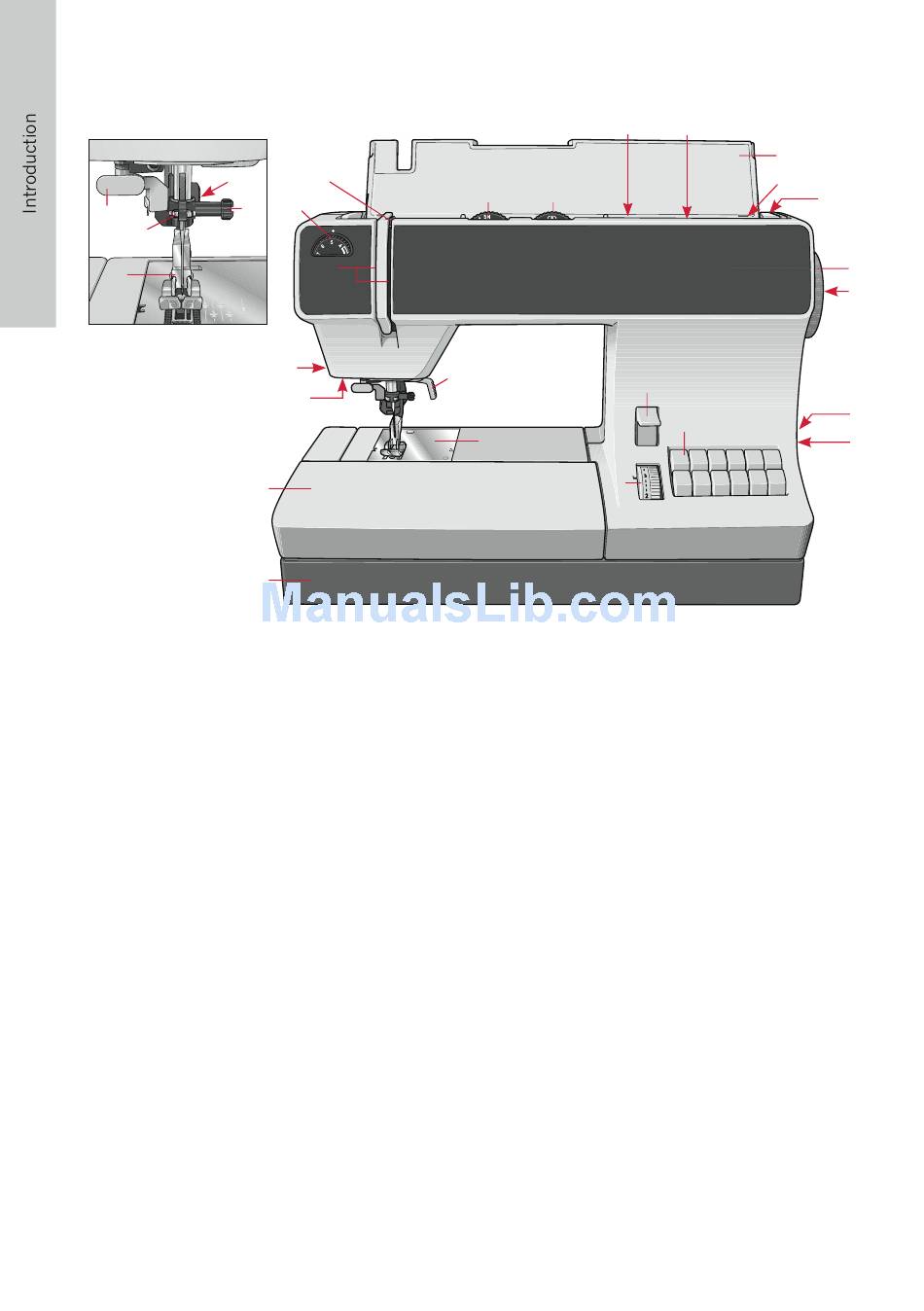

Parts of your select™ sewing machine
24
25
22
23
26
16
17
1 Main switch
2 Connection socket "foot control with
main cord"
3 Handwheel release disk
4 Handwheel
5 Carrying handle
6 Bobbin winder
7 Lid with stitches
8 Extra spool pin
9 Spool pin with spool cap
10 Take-up lever
11 Needle thread tension dial
12 Threading path
13 Thread cutter
14 LED lights
15 Presser foot lifter
4
10
11
12
13
14
9
27 28
15
18
19
16 Removable accessory tray
17 Base plate
18 Needle plate
19 Stitch length dial
20 Button for "reverse sewing"
21 Stitch selection
22 Needle threader (4.2)
23 Thread guide
24 IDT™ system / Integrated Dual Feed
(4.2/3.2)
25 Needle holder with fixing
screw
26 Presser foot holder with presser foot
27 Stitch width dial
28 Needle position dial
