Dear customer:
Thank you for purchasing a DECT SAGEM telephone we appreciate your trust in us. This product was
manufactured with the utmost care, should you encounter difficulties during its use.
For your comfort and safety, we ask that you read the following paragraph carefully:
Recommendations and safety instructions
Your DECT telephone must not be installed in a humid room (wash-up room, bathroom,
laundry room, kitchen, etc.) unless it is 1.50 m away from a water point or outside. Your
telephone must be operated at temperatures ranging from 5°C and 45°C.
Only use the supplied power adapter, connect it to the base socket according to the
installation instructions provided in this booklet and the indications on the identification
(1)
label affixed to it (voltage, current, electric network frequency) .
This telephone was designed for use on the public switched telephone network (PSTN). In
case of a problem you must first contact your reseller. Only use the supplied telephone
cord.
To avoid damaging your handset, only use certified rechargeable batteries, never use non
rechargeable batteries, respect polarity when inserting the batteries in the handset battery
compartment.
For your personal security, never place your handset on the base without the batteries, or
without the battery cover to avoid electric shocks.
At the end of their useful life, batteries must be disposed of according to the recycling
instructions presented in this booklet.
Your DECT telephone has an inside radio range of about 50 metres and up to 300 metres
in open space. The immediate presence of metal parts, (of a television for example), of
any electric appliance may result in range reduction.
Some sensitive medical equipment and safety equipment may be affected by the radio-
frequency transmissions of your telephone, in all cases, we ask that you respect the
safety recommendations.
In areas where storms are frequent, we recommend that you protect your telephone line
using a surge protection device.
This equipment does not function in the case of an electric network shutdown: for
emergency calls, it is recommended to use another unit during power outages
The CE marking certifies that the product meets the essential requirements of Directive
1999/ 5/CE of the European Parliament and of the Council pertaining to microwave radio
equipment and telecommunication terminal equipment, for the safety and health of users,
for electromagnetic interference, and furthermore it efficiently uses the frequency
spectrum attributed to ground and spatial communication to prevent damaging
interferences.
(1) : With the exception of IT scheme installations defined in the EN60950 standard.
(2) : In this case, use the self supplied telephone line.
- 1 -
1.2. Handset
Connecting the battery
The handset comes with a rechargeable NiMH battery (3.6 V, 300 mAh).
Red wire
1. Open the battery compartment and connect the battery. The
battery connector is shaped to prevent reverse polarity, so
do not use force but check first whether the connector needs
to be turned round and to respect the position of the wire.
2. Slide the cover onto the battery compartment until it shuts.
After inserting the battery the fully charged, the handset is
switched on automatically and goes into standby mode with the
following display (with the time):
To set the date and time:
• Press
+ 2 + 2 .
• The display shows 2-2 DD MM YY.
• Use the keypad to enter the date (DD-MM-YY).
• Press
to confirm.
OK
• The display now shows 2-2 HH:MM.
• Use the keypad to enter the time (HH-MM).
• Press
OK to confirm.
Charging the battery
As supplied, the battery is not charged. Place the handset on the base station to charge the battery. The
charging state segments on the handset display keep blinking during the charging process. Three bars are
displayed when charging is complete (see below). Before using your handset for the first time, allow the
battery to charge for at least 16 hours. A new battery pack will attain its full capacity only after several
charge/discharge cycles.
When the battery is nearly fully discharged, the charging symbol shows 'empty' and the handset emits a
warning signal. If this happens, replace the handset on the base station to recharge it.
Battery charging status
The various charging states are shown below:
Battery discharged Battery about 1/3 charged
Battery about 2/3 charged Battery full
Charging is indicated by blinking segments in the CHARGING STATUS symbol. The symbol stops blinking
when the battery is full.
Switching your Handset On and Off
To switch your handset off, press and hold the key for more than 5s. To switch your handset back on,
C
press the key.
C
The handset is automatically switched back on when placed on the base station.
Keyguard
The keyguard function blocks the handset keys to avoid pressing them unintentionally (e.g., when carrying
the handset in your pocket). To activate keyguard: press and hold down the key until the
shown on the display.
To deactivate keyguard: press and hold the key until the symbol disappears from the display.
Keyguard is also deactivated when you replace the handset on the base station.
- 5 -

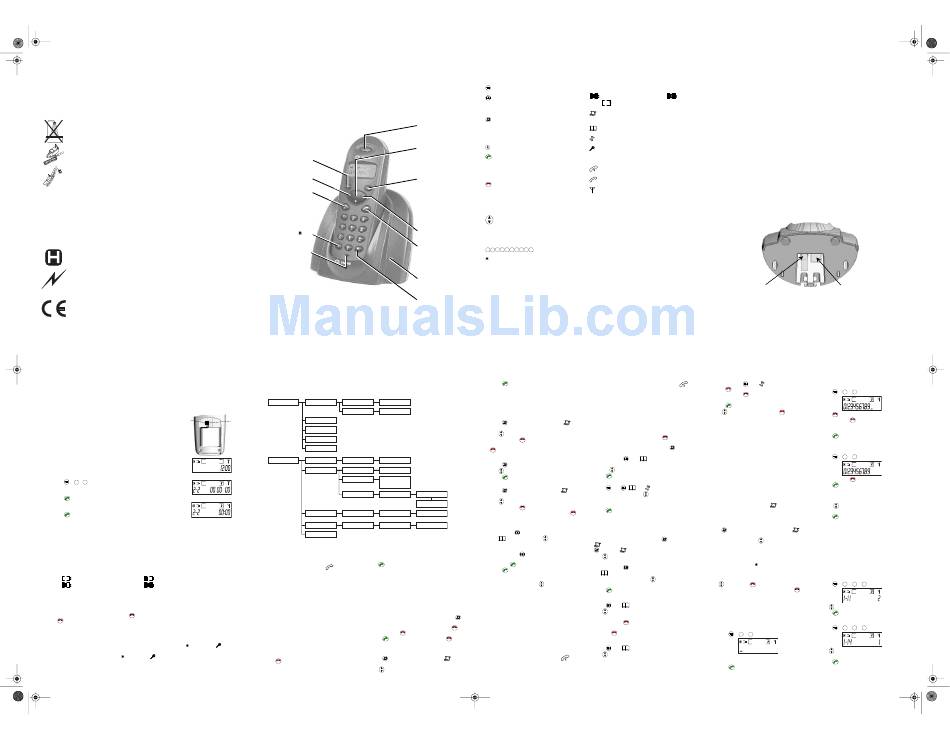

Base Station and Handset Overview
R key
- Call hold retrieve
(PABX only)
MENU key
- Access to settings
END CALL C key
- End a call
- Cancel a menu entry
- Switch handset OFF/ON
- Erase an entry
key
- Activate/deactivate
keyguard
Microphone
(2)
.
- 2 -
2. Menu structure
1 - HANDSET 1.1 - ACOUSTIC 1.11 - RING Volume
1.14 - KEY BEEP Beep ON/OFF
Black wire 1.2 - AUTO PICKUP
1.3 - EMERGENCY
1.6 - DELETE LIST
00 - SET DEFAULT
2 - BASE 2.2 - DATE TIME DATE TIME
2.3 - DIALLING 2.31 - DIAL TYPE 1-Tone/2-Pulse
2.32 - FLASH 1-85ms/2-100ms
3-250ms/4-600ms
2.33 - PBX Prefix Prefix number ___
2.4 - CALL BARRING ____(PIN code) 1 ___- (N° restricted)
2.6 - BASE CODE ____(old code) ___- (new code)
00 - SET DEFAULT
3. Calls
3.2. Making a Call
3.2.1. Direct Calls
3.1. Receiving a Call
Press and enter the phone number. The phone
OK
When you receive a call. ---- and are shown on
number digits appear on the display as they are
the handset display. If you have subscribed to the
dialled.
Caller ID service, the ---- is replaced with the caller's
phone number.
3.2.2. Prepared Calls
Taking a Call With call preparation the phone number is first
selected from the memory (Caller ID list, Directory,
If the handset is on the base station:
Redialling) or entered manually, then dialled.
• Take
it off the base station.
If the auto-pickup function is enabled you can Manual Call Preparation
now answer the call directly (refer to § 7.1.3
1. Enter the phone number. You can insert dialling
"Activating/Deactivating the Auto-Pickup
pauses (2 seconds) between digits using the
Mode").
key (shown as P on the display).
Otherwise, press any key to answer the call.
To clear the last entered digit, briefly press
If the handset is not on the base station:
Press and hold
• Press any key to answer the call.
2. Press . The number is dialled. Press
OK
When keyguard is on, an incoming call will disable
cancel dialling.
symbol is
keyguard during the call.
3.2.3. Calling with Redialling
Ending a Call
1. Press . The number last dialled and
Press or put the handset back on the base
C
displayed.
station.
2. Use to select the desired phone number.
- 6 -
Quick Guide to Handset Keys
MENU key
DIRECTORY key
Access to directory
Memorization of the number
REDIAL / CALLER ID LIST key
Earpiece Access to last five dialled numbers
Access to Caller ID list
- Receiver
- Ring sound Insert a dialling pause
R key
NAVIGATION key
- Scroll options
TALK / OK key
OK
- Volume control
Accept call
- Access to emergency
Dial number
number
Select a menu entry
REDIAL /
END / CLEAR key
CALLER ID LIST key
C
End a call
- Access to last five
dialled numbers (first Cancel a menu entry
push)
Erase numbers
- Access to Caller ID
Switch handset off/on
list (second push)
- Insert a Pause
NAVIGATION key
Scroll options
DIRECTORY key
Receiver volume control
- Access to directory
Emergency dialling
TALK / OK key
1 2 3 4 5 6 7 8 9 0 DIALLING keys
- Accept call
- Dial number Keyguard on/off
- Select a menu entry # Mute on/off during on-line state
LED
- Flashes during a call
# key
- Switch off (mute)
microphone during call
3. Press . The number is dialled.
OK
The five numbers stored in the redial memory are
the last five numbers that you have dialled directly
from the keypad. Any dialling pauses you may have
entered are also stored.
Clearing a Phone Number from the Redialling
Memory
1. Press . The last dialled number and are
displayed.
2. Use to select the desired phone number.
3. Press and hold to clear the selected number.
C
To clear the entire redialling memory, hold down
for more than 5 seconds.
C
3.2.4. Dialling from the Caller ID List
1. Press twice. The latest entry is displayed.
2. Use to select the desired entry.
3. Press . The phone number is dialled.
OK
Clearing a Phone Number from the Caller ID List
4. Press twice. The last number and are
__ Dial length displayed.
5. Use to select the desired phone number.
Prefix ON/OFF
6. Press and hold to clear the selected number.
C
Barring ON/OFF To clear the entire caller ID list, hold down for
C
more than 5 seconds.
___- (new code) 3.2.5. Dialling from the Directory
1. Briefly press . The first number in the directory
and are displayed. Use to select the
desired phone number.
or
Press and hold . One dashes blink on the left
of the display. Enter the directory location number
and press , the phone number appears.
OK
2. Press . The phone number is dialled.
OK
3.2.6. Adjusting the Receiver Volume
During a call, you can use to select one of the
three receiver volume levels available (displayed as
1 or 2 or 3 on the right of the display). The volume
setting is saved after hanging up.
3.2.7. Call Timer
The call timer display starts 10 seconds after you
make a call. It remains on for 5 seconds after the
call is completed.
.
C
3.2.8. Microphone MUTE Function
to cancel the entry.
C
to During a call you can switch off ("mute") the
C
microphone. The call is placed on hold.
Activating the MUTE Function
During a call, press and hold # until the symbol
are
is displayed.
Deactivating the MUTE Function
Quick Guide to Handset 1. Preparing your Phone for Use
Display Symbols
Only a few simple operations are needed to prepare your handset for use. However, we suggest you first
read the general information below.
CHARGING STATUS symbol ( : full,
• The base station / charging unit and the handset are ready for use after the battery pack has been
installed and charged. The D10T handset has already been registered on the base station. With the
: discharged, blinks when charging)
basic settings, you can start using it immediately.
REDIAL / CALLER ID LIST active (symbol • Your base station and handset will not work in the case of a power failure or if the AC adapter is not
blinks when a new call is in the Caller ID list)
connected. However, the settings, directory entries and redialling memory in the handset will be
retained in the event of a power failure.
• Use only the included AC adapter.
DIRECTORY active
• Users of hearing aids should be aware that the radio signals between base station and handset can
MENU SETTING active cause an unpleasant buzzing noise in their hearing aids.
• Use only the included battery pack. For your security, do NOT use non-rechargeable batteries.
KEYGUARD active (blinks when key pressed • Make sure that the charging contacts at the bottom of the handset do not come into contact with
while keyboard is locked or call is not
metallic or greasy objects.
allowed) • You must set the time and date if they are to be shown on the display and to be stored with the calls in
the Caller ID list (see § 1.2).
MICROPHONE MUTE indicator
1.1. Base Station
CALL active (blinks during incoming ring)
SIGNAL STRENGTH symbol (blinks when no
Connection
signal is being received from the base station
or the signal is weak)
Insert the connectors in the order shown below:
Base Station
LED Flashes during an external call
.
Plug the power cord from the
AC adapter into
corresponding base station
socket and push the cord into
the cord guide. Connect the
AC adapter to the mains
socket. The green LED of the
base station lights.
- 3 -
3. Press and hold . The
To resume the call, press and hold # until the
Press to clear one digit.
symbol disappears.
C
Press and hold delete all the number.
C
4. Enter the new number.
4. Directory
5. Press to confirm.
OK
6. Use to edit other entries. Press
You can store up to 15 phone numbers in the
are finished.
directory. The entries can be created manually or
taken from the Caller ID list or redialling memory.
5. Call List
4.1. Creating a New Entry Manually
1. Enter a phone number. Correct with if
C
Using the Caller ID List
necessary. You can insert dialling pauses
This function is available only if you have
(2 seconds) between digits by using the key
subscribed to the Caller ID service.
(shown as P on the display).
2. Press and hold . The symbol displayed. Incoming Call Storage
3. Select a memory slot (free slot numbers blink) The last 20 incoming calls are stored in the Caller ID
with the key if necessary. list with the phone number and the date and time
the phone number was transmitted (the date and
4. Press
OK
time must have been set on the handset).
or
If no phone number has been transmitted, four
1. Press and . and are displayed.
dashes are displayed in place of the phone number.
2. Select a memory slot with or enter the slot The calls are registered regardless of whether or not
number manually. they have been answered. New, unanswered calls
3. Enter the phone number. are shown on the display by the
4. in the standby state.
Press to confirm.
OK
The oldest entry is cleared when the memory is full.
4.2. Transferring a Phone Number
Opening the Caller ID List
from the Redialling Memory or
Press twice to open the Caller ID list.
Caller ID List
blink on the top line next to the last caller's number.
1. Select the redialling memory (press once, the
Use the navigator keys
symbol is displayed) or Caller ID list (press
Caller ID list. The memory slot number is displayed
twice, the symbol blinks).
next to the phone number. To display the date and
time, press #. If the number has more than 13 digits,
2. Use to select the phone number you want to
the first 13 digits of the number are displayed and
store in the directory.
stay on when you press .
3. Press and hold . The directory is opened and
the symbol blinks. Clearing an Entry from the Caller ID List
To clear an entry from the Caller ID list, select it first
4. Select a memory slot with the key if necessary
(only free slots are displayed). with then press . The entire Caller ID list
C
5. Press to confirm. memory will be cleared if you hold down
OK
more than 5 seconds.
4.3. Clearing an Entry
1. Press . The symbol is displayed
6. Emergency Number
2. Use to select the phone number you want to
clear.
6.1. Creating an Emergency
3. Press and hold .
C
Number
4. The entire directory will be cleared if you press
and hold for more than 5 seconds. • Press
+ 1 + 3 .
C
4.4. Editing an Entry
1. Press . The symbol is displayed
2. Use to select the phone number you want to
• Enter the emergency number (10
edit.
maximum).
• Press
to confirm.
OK
- 7 -
Plug the phone line cord into
the
the corresponding base
station socket and push the
cord into the cord guide.
Connect the cord to the
telephone wall socket.
- 4 -
symbol is displayed. 6.2. To modify Emergency Number
• Press
+ 1 + 3 .
when you
C • Press
to clear one digit.
C
• Press and hold
delete all the number.
C
• Enter the new emergency number (10 digits
maximum).
• Press
to confirm.
OK
6.3. To disable Emergency Number
• Press
+ 1 + 3 .
• Press and hold
delete all the number.
C
• Press
to confirm.
OK
6.4. Calling an Emergency Number
symbol blinking • Press
. The preset emergency number is
displayed.
• Press
to dial.
OK
Note: The call duration timer will not be displayed
during an emergency call.
will

7. Settings

to scroll through the
All settings, both for the handset and for the base
station, are performed from the handset.
7.1. Handset Settings
7.1.1. Setting the Handset Ringer Volume
You can choose from three ringer volumes:
• Press
+ 1 + 1 + 1 .
for
C
• Use
to select the ringer volume.
• Press
to confirm.
OK
7.1.2. Switching Key Beep On/Off
• Press
+ 1 + 1 + 4 .
• Use
to choose between - key beep on (1)
- key beep off (0).
digits
• Press
to confirm.
OK
There are three different key beeps:
- 8 -
