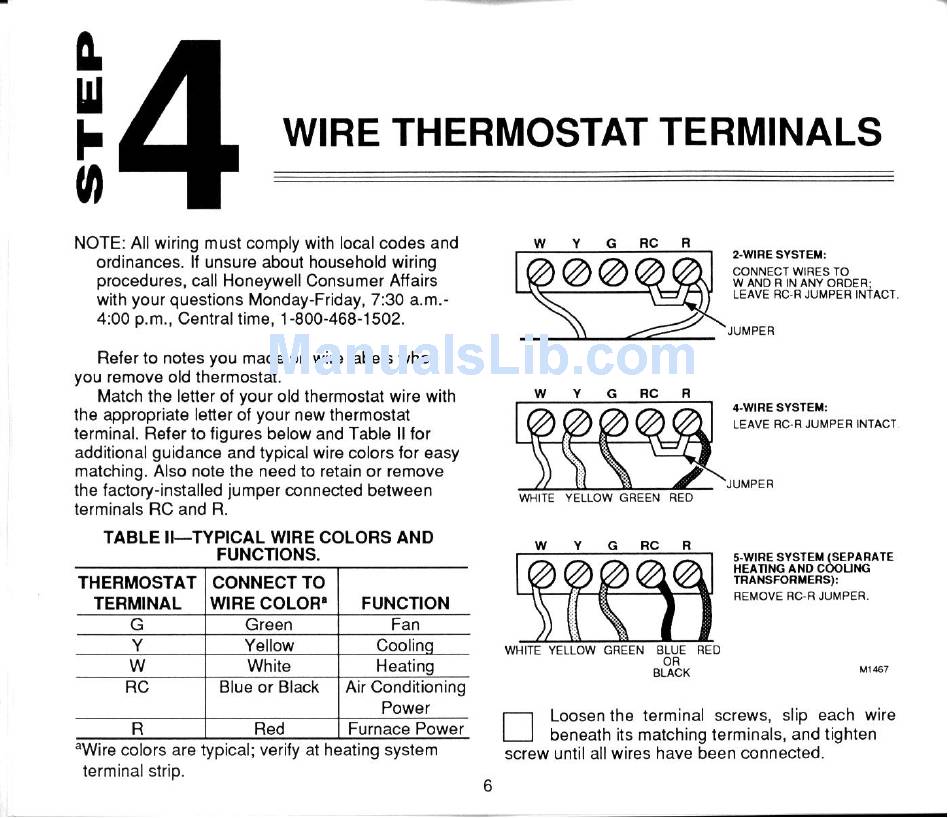

WIRE THERMOSTAT

TERMINALS

NOTE: All wiring

must comply with local codes and

ordinances.

If unsure about household

wiring

procedures,

call Honeywell

Consumer

Affairs

with your questions

Monday-Friday,

7:30 a.m.-

4:00 pm., Central time, l-800-468-1502.

Refer to notes you made on wire labels when

you remove old thermostat.

Match the letter of your old thermostat

wire with

the appropriate

letter of your new thermostat

terminal.

Refer to figures below and Table II for

additional

guidance

and typical wire colors for easy

matching.

Also note the need to retain or remwe

the factory-installed

jumper

connected

between

terminals

RC and R.

TABLE

II-TYPICAL

WIRE COLORS

AND

FUNCTIONS.

aWire colors are typical; verify at heating

system

Loosenthe

terminal

screws,

slip each

wire

beneath

its matching

terminals,

and tighten

screw until all wires have been connected.
