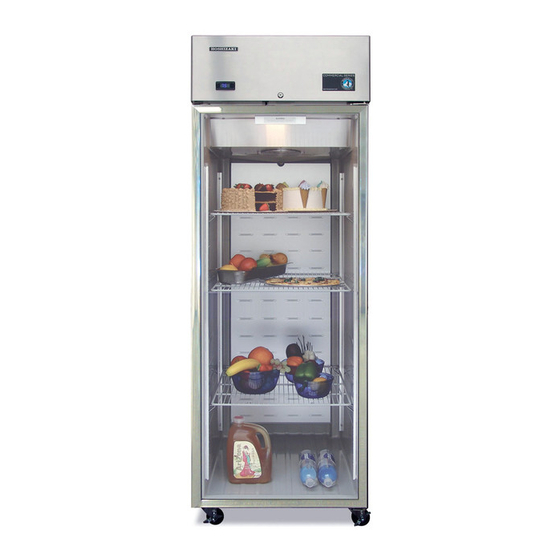

- Page 1 Hoshizaki Hoshizaki America, Inc. Commercial Series Refrigerated Kitchen Equipment Models Reach-In B-Series INSTRUCTION MANUAL “A Superior Degree of Reliability” www.hoshizaki.com Issued: 1-18-2011 Revised: 3-7-2013...
- Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, send an e-mail message, or write to the Hoshizaki Technical Support Department for assistance. Phone: 1-800-233-1940; (770) 487-2331 Fax: 1-800-843-1056;...
-
Page 3: Table Of Contents
IMPORTANT This manual should be read carefully before the appliance is installed and operated. Read the warnings and guidelines contained in this booklet carefully as they provide essential information for the continued safe use and maintenance of the appliance. Retain this booklet for any further reference that may be necessary. CONTENTS Important Safety Information .................... -
Page 4: Important Safety Information
Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. WARNING Indicates a hazardous situation which could result in death or serious injury. - Page 5 WARNING, continued • 208-230VAC Models: THIS APPLIANCE MUST BE GROUNDED: This appliance is equipped with a NEMA L14-20 four-prong locking, grounding plug to reduce the risk of potential shock hazards. It must be plugged into a properly grounded, independent 4-prong wall outlet. If the outlet is a 3-prong outlet or a 4-prong non-locking outlet, it is your personal responsibility to have a qualified electrician replace it with a properly grounded, independent 4-prong locking wall outlet.
- Page 6 WARNING, continued • This appliance is designed only for temporary storage of food. Employ sanitary methods. Use for any other purposes (for example, storage of chemicals or medical supplies such as vaccine and serum) could cause deterioration of stored items. •...
-
Page 7: Installation Instructions
I. Installation Instructions WARNING • This appliance must be installed in accordance with all applicable national, state, and local regulations. • Appliance is heavy. Use care when lifting or positioning. Work in pairs when needed to prevent injury or damage. •... -
Page 8: Setup
• Visually inspect the exterior of the shipping package and immediately report any damage to the carrier. Upon opening the package, any concealed damage should also be immediately reported to the carrier. • Remove the shipping carton, tape, and packing material. Remove the protective plastic film from the exterior panels on all models and from the interior door panels on solid door models. -
Page 9: Door Reversal
To change the door swing, an HS kit from your local Hoshizaki distributor is required. See the table below. NOTICE! Improper installation of the HS kit may result in the doors not closing completely and/or the gaskets not sealing correctly. -
Page 10: Electrical Connection
E. Electrical Connection WARNING • Electrical connection must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or severe damage to equipment. • This appliance requires an independent power supply of proper capacity. See the nameplate for electrical specifications. -
Page 11: Final Checklist
F. Final Checklist 1) Is the appliance level? 2) Have the front casters been locked? 3) Is the appliance in a site where the ambient temperature is as specified below all year around? – Refrigerators and Solid Door Freezers 45°F to 100°F (7°C to 38°C) –... -
Page 12: Operating Instructions
II. Operating Instructions A. Important Notes About Usage WARNING • Only qualified service technicians should install and service this appliance. • Failure to install, operate, and maintain the appliance in accordance with this manual may adversely affect safety, performance, component life, and warranty coverage. -
Page 13: Startup
WARNING, continued • All foods should be wrapped in plastic film or stored in sealed containers. Otherwise foods may dry up, pass their smells onto other foods, cause frost to develop, result in poor appliance performance, or increase the likelihood of cross-contamination. -
Page 14: Controls And Adjustments
C. Controls and Adjustments 1. Temperature Display The cabinet temperature is displayed on the control module. See Fig. 5. The display default is °F, but it can be changed to read °C. To change, see "II.C.3. Changing the Temperature Display Scale (°F or °C)." Control Module Manual Button... -
Page 15: Changing The Temperature Display Scale (°F Or °C)
3. Changing the Temperature Display Scale (°F or °C) To change the temperature display scale, follow the steps below. The factory default is °F. 1) Press and hold both the up and down buttons for 5 seconds. "PAS" appears briefly in the display, then "000"... -
Page 16: Defrost
E. Defrost 1. Refrigerators Refrigerators use an off-cycle, time-initiated defrost and defrost once every 2 hours. When the defrost thermistor warms to 40°F (4.4°C), defrost terminates. The minimum defrost time is 20 minutes and the maximum defrost time is 1 hour. Cabinet temperature is displayed during defrost. -
Page 17: Alarm Safeties
G. Alarm Safeties Alarm signals are designed to protect the appliance and food product. These alarms give information or warnings in the event the appliance is operating out of acceptable parameters. Should one of the alarms occur, follow the instructions in the table below to address the alarm. -
Page 18: Safety Devices
Note: Time may vary with compressor overload or high-pressure switch activation. 3. High-Pressure Switch If pressure on the high-side of the appliance exceeds Hoshizaki specifications, the high-pressure switch activates and interrupts the compressor circuit, de-energizing the compressor until the pressure returns to an acceptable level. -
Page 19: Cleaning And Maintenance Instructions
III. Cleaning and Maintenance Instructions A. Cleaning WARNING • Before cleaning the appliance, move the power switch to the "OFF" position and unplug the appliance to prevent electric shock by unexpected entrance of water into the appliance or injury by moving parts. To reduce the risk of electric shock, do not touch the power switch or plug with damp hands. -
Page 20: Maintenance
2. Power Supply Connection If the plug or power cord is damaged, contact your local Hoshizaki service representative or local Hoshizaki distributor immediately and ask for repairs. All other maintenance or service on this appliance should be performed in accordance... -
Page 21: Preparing The Appliance For Periods Of Non-Use
IV. Preparing the Appliance for Periods of Non-Use When shutting down the appliance for periods of non-use, follow the instructions below. WARNING Prevent the doors from closing to reduce the risk of children getting trapped. NOTICE Clean the appliance. See "III.A. Cleaning" for details. 1) Before shutting down the appliance, move the stored food into another refrigerator or freezer. -
Page 22: Disposal
V. Disposal When disposing of the appliance, follow the instructions below. WARNING Remove the door to reduce the risk of children getting trapped. Leave the shelves in place so that children may not easily climb inside. This appliance contains refrigerant and must be disposed of in accordance with applicable national, state, and local codes and regulations. - Page 23 HOSHIZAKI AMERICA, INC. 618 Hwy. 74 S., Peachtree City, GA 30269 USA TEL (770) 487-2331 FAX (770) 487-3360 www.hoshizaki.com 1A2959-010...
