Summary of Contents for Laney CXP-110

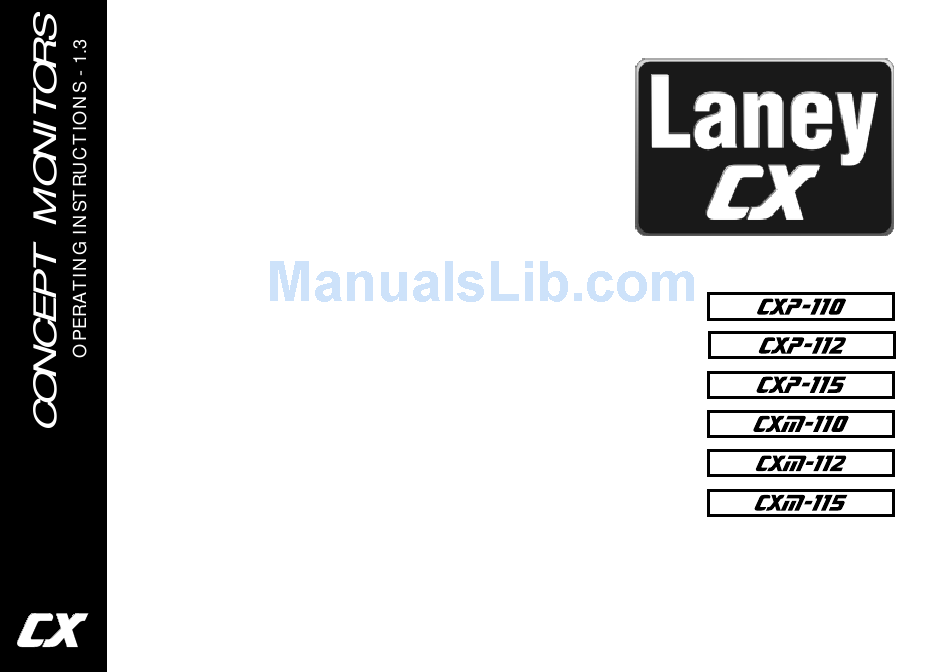

- Page 1 USER MANUAL...
- Page 2 Laney IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric products, basic cautions should always be followed, including the following. 1. Read all safety and operating instructions before using this product 2. The product should be powered by a three pin `grounded (or earthed) plug connected to a power socket with a grounded earth outlet.
- Page 3 Deje todo mantenimiento a los tecnicos calificadod. inspection, involving actual play testing. Risiko - Elektrischer Schlag! Nicht offen! When you first receive your Laney guitar amplifier, follow these simple VORSICHT: Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die Abdeckung enfernen. Es procedures: befinden sich keine Teile darin, die vom Anwender repariert werden Konnten.
- Page 4 Thank you very much for purchasing your new Laney product and becoming part of the worldwide Laney family. Each and every Laney unit is designed and built with the utmost attention to care and detail, so I trust yours will give you many years of enjoyment.

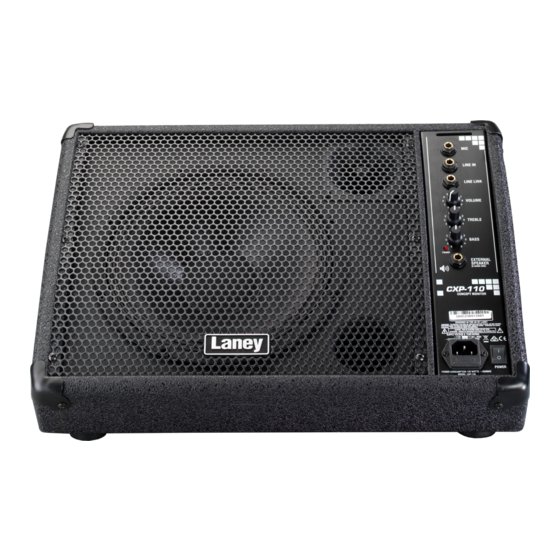

- Page 5 Laney CXP POWERED MONITOR RANGE...
-
Page 6: Front Panel Features
Laney CXP-110, 112, 115 FRONT PANEL FEATURES T1.6A L 250V T1A L 250V... - Page 7 Laney Mic: Jack input for Lo impedance microphones (200-600 Ohms) Mic: XLR input for Lo impedance microphones (200-600 Ohms) Line In: Jack input socket for all line level signals e.g.: Keyboard, P.A., Mixing Desk Drum Machine etc. Link Out: Socket for providing a link out for any device connected to "Line In" only.
- Page 8 Laney TECHNICAL SPECIFICATIONS & BLOCK DIAGRAM Supply voltage on all models: - Factory Preset ~100V, ~120V, ~220V, ~230V, ~240V 50/60Hz Mains Fuse: ~100>~120V T1.6A L T5A L T5A L ~220V>~240V T1A L T2A L T2A L Inputs Mic, Line (both 6.3mm Jacks) Mic XLR, 6.3mm Line jack...
- Page 9 Laney LINE IN EXTERNAL LOUDSPEAKERS LINK OUT POWER INTERNAL LOUDSPEAKERS LINE IN EXTERNAL LOUDSPEAKERS LINK OUT POWER INTERNAL LOUDSPEAKERS Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel. Cables: Never use shielded or microphone cable for any speaker connections as this will not be substantial enough to handle the...
- Page 10 Laney CXM UNPOWERED MONITOR RANGE The CXM range of unpowered monitors are designed to compliment the CXP powered monitors, each of which is capable of powering one unpowered monitor from its external speaker socket. Each CXM monitor is supplied with two jack sockets on the rear panel, either can be used as an input or link out.
- Page 11 Laney...
- Page 12 M P L I F I C A T I O N w w w. l a n e y. c o . u k In the interest of continued product development, Laney reserves the right to amend product specification without prior notification.
