Summary of Contents for Laney AH4X4

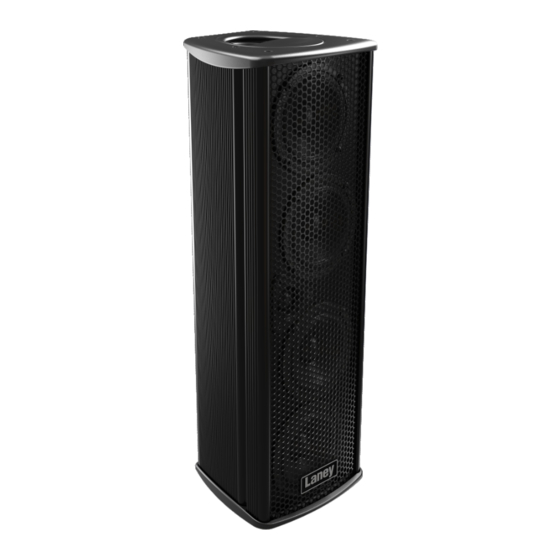

- Page 1 AH4X4 USER MANUAL...
- Page 2 At the same time we believe we have not lost sight of the reason Laney was founded in the first place - a dedication to building great sounding amplification for working musicians.
- Page 3 The AH4X4 can be run from a wall mounted mains adaptor, which is supplied as standard, or batteries for anywhere operation. Use either standard AA batteries or for maximum battery life use LITHIUM ION batteries for up to 24 hours non-stop operation.
-
Page 4: Quick Start
1: Ensure Power switch (e) is off. Phone/MP3 player 2: Connect the power supply connector to the AH4X4 (d) and plug into a wall power socket. 3: Make sure the Level (b) and Volume control (c) are set to 0. - Page 5 Sample setup - Single AH4X4 Your AH4X4 can be used vertically, horizontally, or on a pole stand. Mic 1 Instrument 35MM Keyboard Vertical: Wide horizontal sound field, ideal for PA. Phone SUB OUT Horizontal: Narrow horizontal sound field ideal as stage monitor.
- Page 6 Inputs Your AH4X4 provides you with a choice of four dedicated input channels, two of which are stereo allowing up to 8 mono inputs. 1.CH1/CH2 MIC/LINE INPUT: Combi socket providing the flexibility to connect either an XLR or jack terminated cable. For improved noise performance, both inputs will accept a balanced signal, but will quite happily work with a single ended, unbalanced signal.
- Page 7 FX processor. 10. MASTER FX ON: Quickly switch FX on and off using this control. The adjacent LED with illuminate when the FX section is active. The FX can also be switched via a Laney FS1 foot-switch. ...
- Page 8 16. LINK OUT: Intended for connecting to the ‘Link In’ of a second AH4X4 unit. Also can be used to feed signal to another amplifier, a recorder or mixing desk.
- Page 9 Batteries The AH4X4 comes with two battery holders * allowing you to choose which best suits your needs. You can use either: 3* Lithium-ion (Li-ion) 18650 protected, button top, cells. Constant high discharge rate recommended at 6A or above, with a 3AH or greater capacity for best life.
- Page 10 EVVA NCR18650 (Black) Enerpower NCR18650B (Blue) The AH4X4 will not allow charging the batteries when the mains adaptor is Panasonic NCR18650B (Green) (MH12210) connected, you should use a standard commercially available charger instead. Please follow the manufacturers instructions when charging.
- Page 11 The Aux’A’ and line signal ‘B’ will be heard from both AH4X4 ‘1' and AH4X4 ‘2' simultaneously If you only want to increase the overall level without additional channels, only a connection from AH4X4 ‘1' link out to AH4X4 ‘2' Link is required.
- Page 12 Bluetooth...
-
Page 13: Specifications
Incorporated Radio Equipment Device Technical Specification: Frequency Range: 2402-2480MHz Transmit Power: +8dBm (6.3mW) Receiver Sensitivity: -91dBm Operating Protocol: Bluetooth Class 2 In the interest of continued development, Laney reserves the right to amend product specification without prior notification. -
Page 14: Important Safety Instructions
Important Safety Instructions... - Page 15 This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment. Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 16 Model number: Serial number: Place of purchase: Date of purchase: Please complete for future reference. REVISION 5.00...
