Henny Penny
2-1.
INTRODUCTION
2-2.
TEST INSTRUMENTS
2-3.
REMOVING THE
CONTROL PANEL
593
SECTION 2. MAINTENANCE
This section provides procedures for checking and replacement of the
various parts used within the unit. Before replacing any parts, refer to
Section 1, Troubleshooting. It will aid you in determining the cause of a
particular malfunction.
You may use two test instruments to check the electric compo-
nents.
• A continuity light.
• An ohmmeter.
When the manual refers to the circuit being closed, the continuity
light will be illuminated or the ohmmeter should read zero (0)
unless otherwise noted.
When the manual refers to the circuit being open, the continuity
light will not illuminate or the ohmmeter will read one (1).
A continuity light cannot be used to check coils or motors.

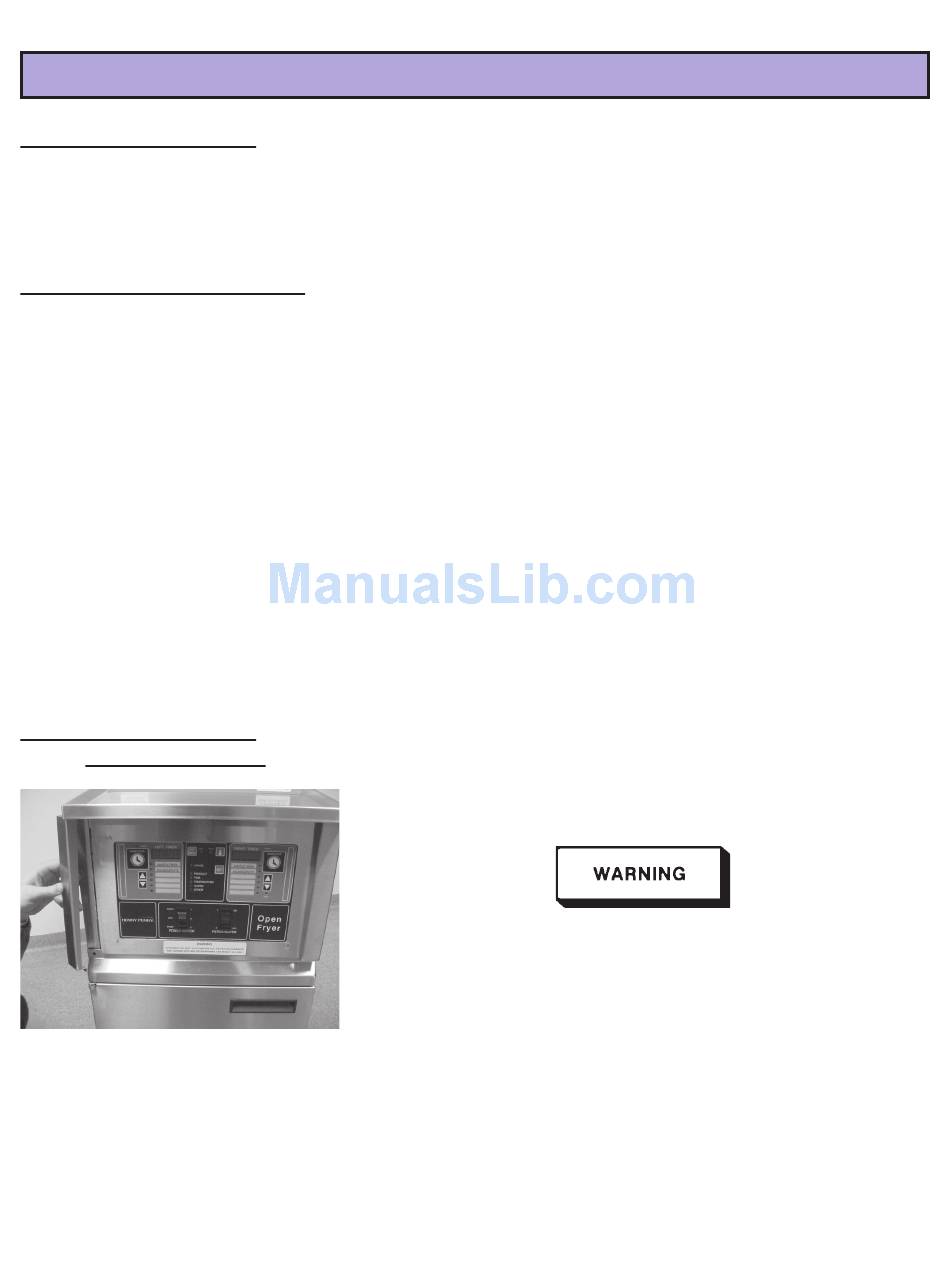

To replace parts located inside the fryer, you will need to remove the
control panel. The following steps provide the correct procedure.
1. Place the power switch in the OFF position.
Disconnect the power cord from the wall receptacle or
power at the fuse or breaker box, or electrical shock could
result.
2. Remove the decorative strip, one located on each side of the
control panel, by removing the screw located on the bottom
of the decorative strip.
NOTE
Model OE-100
2-1
