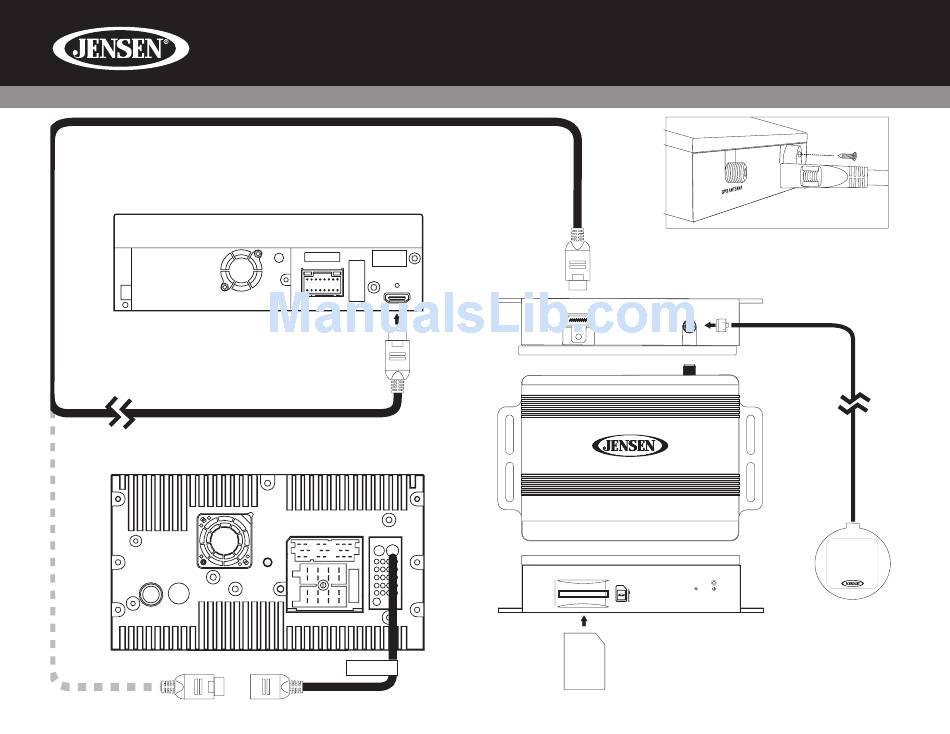

Insert one end of the SmartBus cable into the "DATA BUS" slot on the side of the
NAV104 and secure it with an 11 mm ( 0.4 in ) screw (provided). Connect the other end
of the cable to the NAV104 input on the back of your Jensen navigation-ready
Jensen 1.0 DIN Head Unit
Some compatible head units have a cable-to-cable
connection and do not require an anchor screw.
Jensen 2.0 DIN Head Unit
head unit.
SMB
NAV Bus
NAV104 Installation Guide
Where applicable, secure the cable to the
radio using an 11 mm ( 0.4 in ) screw.
BUS
DATA
ANTENNA
GPS
NAV104 GPS Navigation System
Reset
Insert the SD Card into the SD Card Slot and gently
press the card in against the spring latch until it
SD
stops, then release. The card will "lock" firmly into
CARD
place inside the SD Card Slot.
Secure Smartbus Cable
with 11 mm ( 0.4 in ) Screw
Attach the
GPS Antenna
to the
"ANTENNA"
jack on the
side of the
NAV104.
GPS Antenna
Advertisement
Related Manuals for Jensen NAV104
Summary of Contents for Jensen NAV104
- Page 1 Insert one end of the SmartBus cable into the “DATA BUS” slot on the side of the NAV104 and secure it with an 11 mm ( 0.4 in ) screw (provided). Connect the other end of the cable to the NAV104 input on the back of your Jensen navigation-ready head unit.
-
Page 2: Parts List
NOTE: • Do not install components in areas which are susceptible to Be sure to install the NAV104 in such a way that the SD Card is rain, moisture, direct sunlight, extreme heat or cold, excessive accessible after install, allowing for the removal and insertion of the dust, dirt or humidity SD Card for future changes to map data or upgrades.
