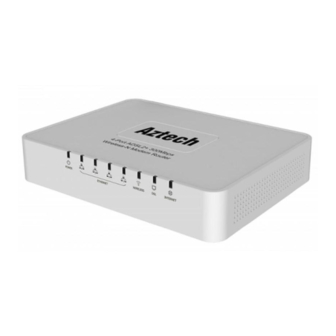

Aztech DSL5018EN Easy Start Manual

This Easy Start Guide will help you setup your DSL5018EN modem router and connect to the Internet . Before proceeding
with the installation, please prepare your internet account settings given by your Internet Service Provider. This Easy
Start Guide along with the User Manual which provides a more advanced guide to this product is included in the Resource
CD and is also downloadable on our Aztech Support Website (www.aztech.com/support).
Contents
Step 1 : Package Contents
Step 2 : Setting up your Hardware
Step 3 : Setting Up Your Internet Connection
Step 1 : Package Contents
The following items are included in your DSL5018EN
package.
DSL5018EN Power Adapter
Telephone Cable
Resource CD
DSL Microfilter Ethernet Cable
Warranty Card
Easy Start Guide
MODEL
DSL5018EN
Step 2 : Setting Up Your Hardware
A.
Connect the microfilter to the telephone outlet.
B.
Using a telephone cable, connect your modem router to the
microfilter.
C.
Using an ethernet cable, connect your modem router to the
desktop through both of the devices ethernet ports.
D.
Connect the power adapter to your modem router.
E.
Switch ON your modem router.
Hardware Setup Diagram
DSL5018EN
E
Power
Adapter
D
DSL
Telephone
Microfilter A
Outlet
B
Telephone Cable
C
Ethernet Cable Desktop/PC
