Utilitech UT-5666-AL Owner's Manual

Item model
247591 UT-5666-AL
Questions or problems? Before returning to your retailer, call our
technical service department at 1-800-858-8501 (English speaking
only), 7:30 am to 4:30 pm, CST, Monday – Friday.
InStaLLatIon InStructIonS
WItH tWo PIece arm
Estimated Installation Time: 60 minutes
Items needed for installation (not included):
• Phillips and flathead screwdrivers
• 13 mm, 10 mm, and 8 mm sockets
• 3/16" Drill bit • Drill
• Pliers • Wire strippers/cutters
• Safety glasses • Silicone caulk
• Ladder • Small box or rag
reaD aLL InStructIonS careFuLLY BeFore
BeGInnInG InStaLLatIon.
note: All wiring must be run in accordance with the National
Electrical Code (Canadian Electrical Code in Canada)
through conduit or another acceptable means. Contact a
qualified electrician if there is any question as to the suit-
ability of the system.
Lamp in Fixture contains mercury. Dispose according
to Local, State, or Federal Laws.
WarnInG: turn power off at the circuit breaker or
fuse.
1. Select a location on a flat wall with structurally sound wood and
from 10 to 25 feet (3 to 7.6 m) from the ground. The wood should
be at least one inch thick to safely secure the fixture.
2. Slide the curved section of the mounting arm into the mounting
bracket. Tighten the bolts on the mounting bracket evenly.
3. Using the mounting arm and bracket as a guide mark four mount-
ing holes. We suggest drilling 3/16" (4.8 mm) pilot holes for the
lag screws.
4. Mount the arm and bracket using four lag screws and washers
provided.
5. Place a ring of silicone caulk around mounting arm (see illustra-
tion). Slide the straight section of the mounting arm on to the
curved section aligning the predrilled holes.
6. Secure the two sections with two bolts, nuts and four washers
provided. Place silicone caulk on top of the bolts and washers
to prevent water from entering.
7. Thread your outdoor cable or flexible conduit through the mount-
ing arm.
8. Loosely connect the mounting strap to the fixture using two bolts
provided.
9. Slide the fixture on to the mounting arm until the fixture comes
to a stop. Secure the fixture to the mounting arm by tightening
the two mounting strap bolts.
© 2008 HeathCo LLC
Dusk-to-Dawn Security Light
10. Connect the fixture wires to the service wires using the wire nuts
provided (black to black and white to white). Push the connec-
tions as far as possible into the straight arm.
11. This fixture must be grounded. Connect the service ground under the
head of the green ground screw and secure to the mounting strap.
12. Install the lens/reflector assembly with two screws and washers
provided.
13. Screw in the 100 watt H.P. Sodium type S54 bulb provided.
14. Loosen the screw in the center of the photocontrol socket two
turns. Twist the socket so that the arrow points north. Note: There
is a stop to prevent the socket from turning all the way around. If
you have trouble turning the socket, try turning it the other direc-
tion. Retighten the screw in the center of the socket.
15. Align the photocontrol (it will only plug-in one way). Plug it in
and twist clockwise until it stops.
To test operation during the daytime, cover the photocontrol with
a small box or rag. Turn the power on. Light should turn on and
reach full brightness within ten minutes. Remove the box or rag to
expose the photocontrol to daylight. Light should turn off within
two minutes. With the photocontrol exposed, the light will operate
automatically – on at dusk and off at dawn.
Mounting Strap
Lens/Reflector
Assembly

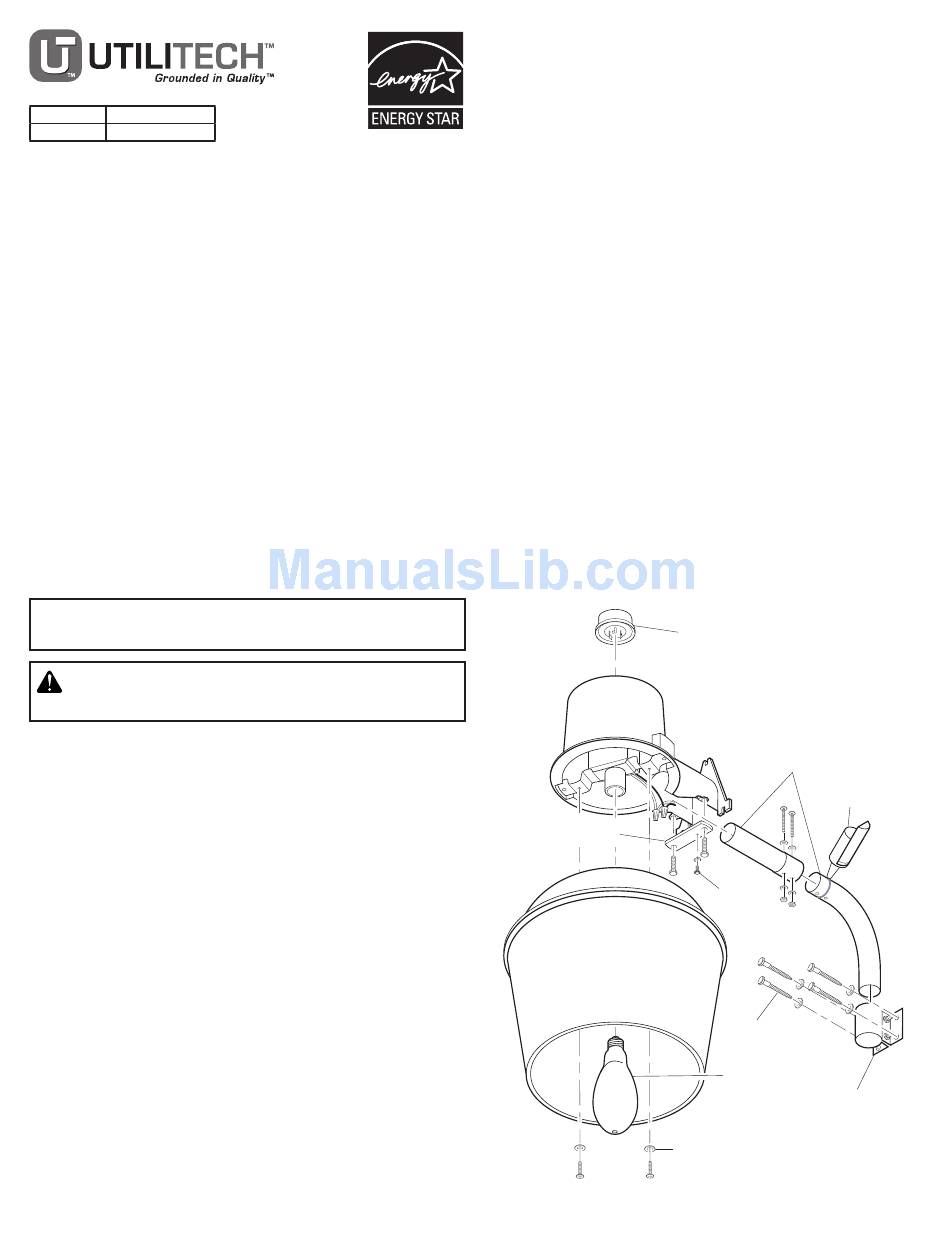

Package Contents and Fixture Assembly
100 Watt H.P.S.
Photocontrol
Mounting
Arm
Silicone
Caulk
Ground
Screw
Lag Screw (4)
Bulb
Mounting
Bracket
Flat Washer (10)
598-1288-04
