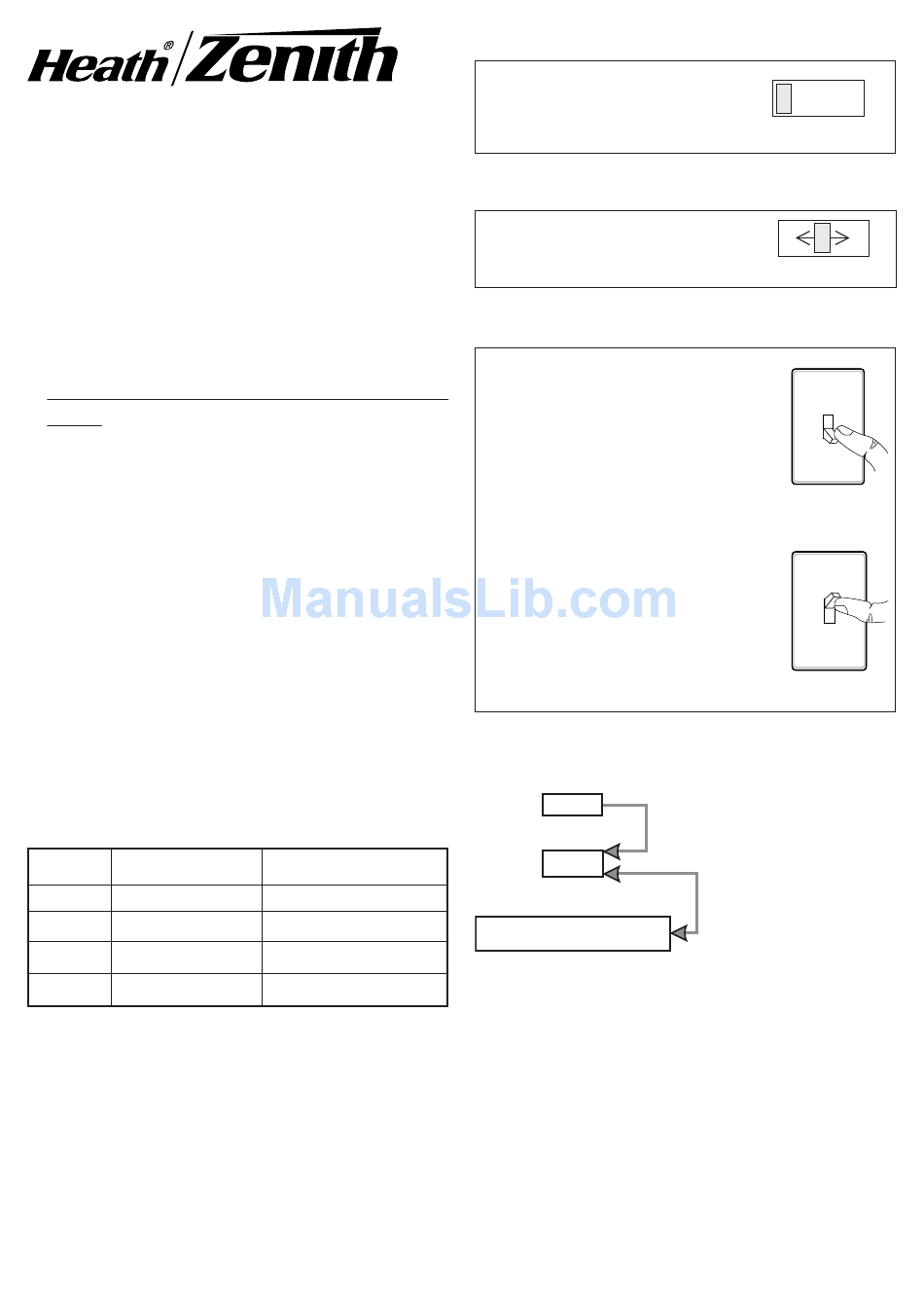

Heath Zenith SL-4190 Series User Manual

Motion Sensing
Diecast Lantern
SL-4190 Series
Features
• Light comes on when motion is detected.
• Automatically turns light off.
• Dusk Accent lighting.
• Photocell keeps the light off during daylight
hours.
This package includes:
• Lantern
• Easy to use universal mounting bracket
(X-Bar)
• Mounting hardware
• Wire nuts
Requirements
• The Light Control requires 120 volts AC.
• If you want to use Manual Mode, the control
must be wired through a switch.
• Some codes require installation by a
qualified electrician.
OPERATION
Mode: On-Time
Test
5 Seconds
Auto 1, 5, or 10 Min
Manual
To Dawn*
Accent 3,6 Hr, to Dawn
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
minutes for the circuitry to calibrate.
© 2006 DESA Specialty Products™
Works: Day Night
x x
x
x
x
/
1
2
Set the ON-TIME switch
on the bottom of the
cover plate to TEST.
Set ON-TIME switch to
1, 5, or 10 minutes.
MANUAL MODE
Manual mode only works at
night because daylight re-
turns the sensor to AUTO.
Flip the light switch off for
one second then back on to
toggle between AUTO and
MANUAL MODE.
Manual mode works only
with the ON-TIME switch in
the 1, 5, or 10 position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes,
turn the power off for one minute, then back
on. After the calibration time the control will
be in the AUTO mode.
D B
®
UAL RITE
Light comes on half bright for selected time
after dusk (3 hr., 6 hr., until dawn). If motion
is sensed, the light turns on full bright for the
ON-TIME (1, 5, or 10 minutes) then returns
to dim mode.
TEST
TEST 1 5 10 MIN
AUTO
TEST 1 5 10 MIN
1 Second
OFF then...
... back on.
ON-TIME Switch at 1,
5, or 10 minutes
Flip light switch
off for one second
then back on*
Dimmer Control
595-5628-07
