Heath Zenith DualBrite 4290 Series Manual

D B
ual rite
Sensing Diecast
Lantern
4290 Series
Questions or problems? Before returning
to your retailer, refer to the troubleshooting
guide in this manual or call our technical ser-
vice department at 1-800-858-8501 (English
speaking only), 8:00 am to 5:00 pm, CST,
Monday – Friday.
Features
• Light comes on when motion is detected.
• Automatically turns light off.
• Dusk Accent lighting.
• Photocell keeps the light off during daylight
hours.
Package Contents
• Lantern
• Universal Mounting Bracket
• Mounting Screws (Includes extra long screw
studs for recessed junction box mounting)
• Wire Connectors
Requirements
• The light control requires 120 volts AC.
• If you want to use Manual Mode, the control
must be wired through a switch.
• Some electrical codes require installa-
tion by a qualified electrician.
© 2013 HeathCo LLC

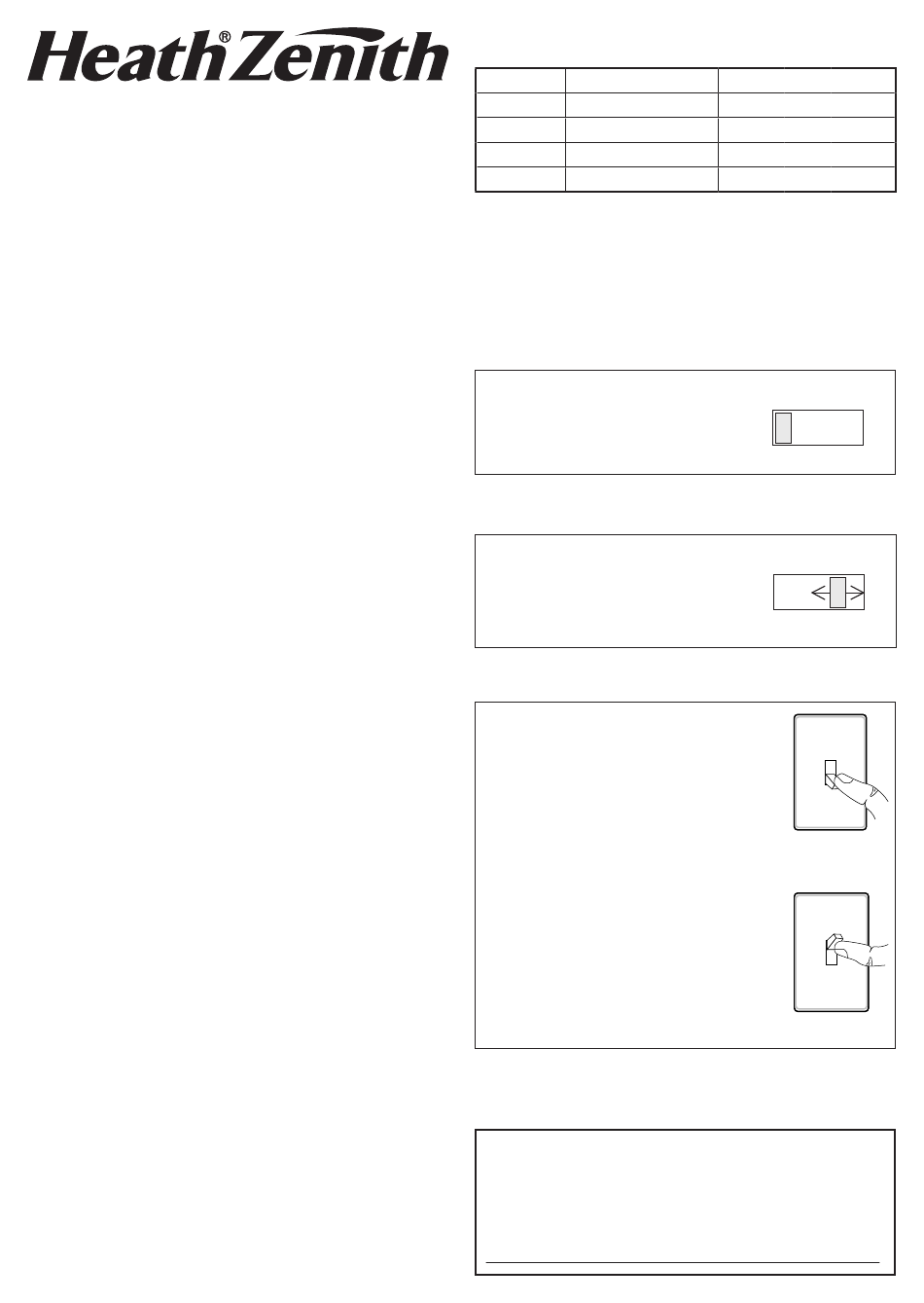

Motion
®
OPERATION
Mode: On-Time
Test
5 Seconds
Auto
1, 5, or 10 Min
Manual
To Dawn*
Accent
3,6 Hr. to Dawn
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
minutes for the circuitry to calibrate.
Set the ON-TIME switch
on the bottom of the cover
plate to TEST.
Set ON-TIME switch to
1, 5, or 10 minutes.
MANUAL MODE
Manual mode only works at
night because daylight re-
turns the sensor to AUTO.
Flip the light switch off for
one second then back on to
toggle between AUTO and
MANUAL MODE.
Manual mode works only with
the ON-TIME switch in the 1,
5, or 10 position.
Before installation, record the model
number from back of fixture below.
Attach receipt in case of possible war-
ranty issues.
Works: Day Night
x
TEST
ON-TIME
TEST 1 5 10 MIN
AUTO
ON-TIME
TEST 1 5 10 MIN
1 Second
OFF then...
... back on.
204093-02A
x
x
x
x
/
1
2
