When wiring to additional standard fixture
only: Strip the motion sensor's red wire and
connect to the standard fixture's black wire.
Connect all white wires together. Total fixture
ratings must not exceed 1000 Watts (8.3 A).
NOTE: All wiring between fixtures should be run
in accordance with the National Electrical
Code (Canadian Electrical Code in Canada)
through conduit or another acceptable means.
Contact a qualified electrician if there is any
question as to the suitability of the system.
WHITE from Line
to WHITE from
Security Light
598-1291-02

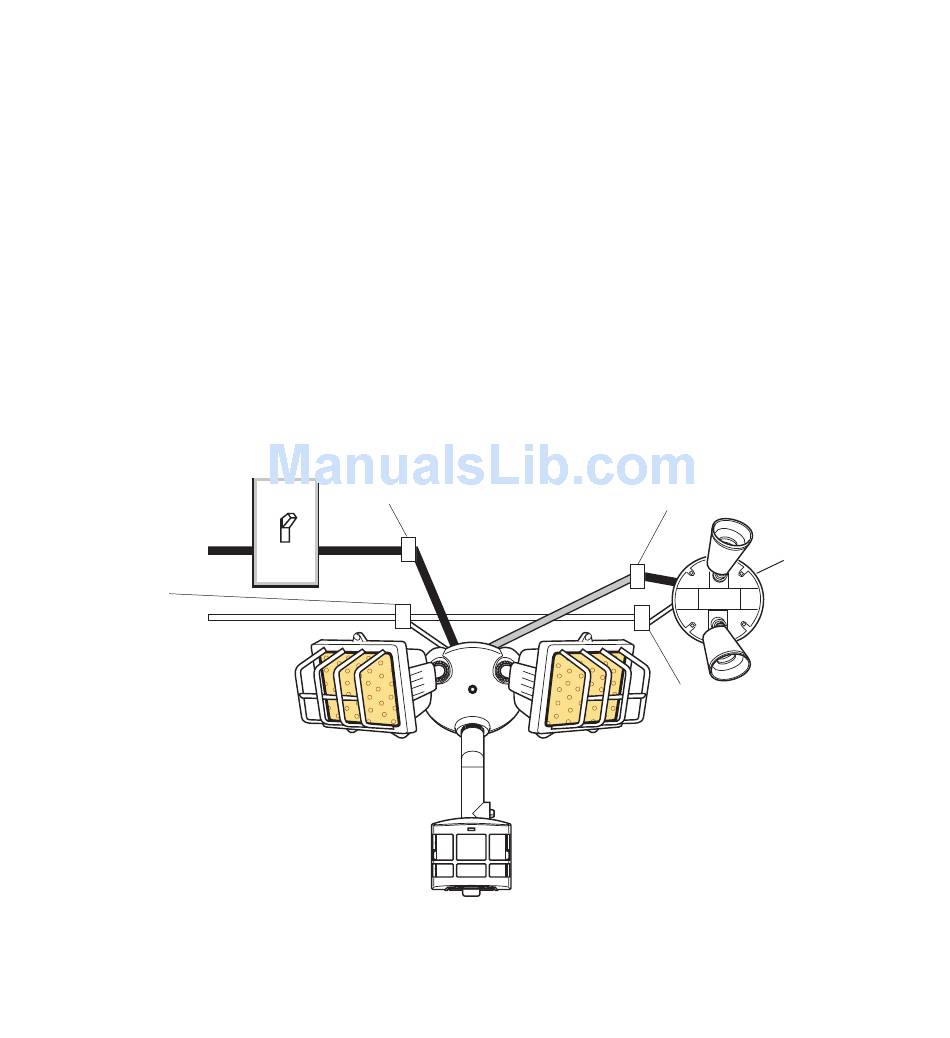

Controlling Non-Motion Sensing Fixtures
BLACK from Switch to
BLACK from Security Light
Wiring to a Motion Light & Standard Fixture
This fixture is provided with a sensor rated
for 1000 Watts. Since the fixture is only rated
500 Watts, 500 Watts of additional load may
be controlled by this sensor.
When determining what a fixture is rated for,
do not simply look at the rating on the lamp in
the fixture. Look at the marking which speci-
fies the maximum lamp wattage for which the
fixture is suitable.
Once you have selected the fixtures to be con-
nected and determined their maximum ratings,
add these ratings up. For instance, if you have 3
fixtures rated 100 Watts, 150 Watts, and 75 Watts
respectively, you have a total load of 325 Watts.
RED from Security Light to
BLACK from Fixture
--
Standard
Fixture
WHITE from Line to
WHITE from Fixture
