Utilitech UT-5681-BZ Installation Manual

Item Model
135931 UT-5681-BZ
Questions or problems? Before returning to your retailer, call our
technical service department at 1-800-858-8501 (English speaking
only), 7:30 am to 4:30 pm, CST, Monday – Friday.
PACKAGE CONTENTS
• Security light
• Wire connectors
• 1/2" NPT nut
• Mounting template
INSTALLATION INSTRUCTIONS
Estimated Installation Time: 1 hour
Items needed for installation (not included):
• Phillips and fl athead screwdrivers
• Pliers
• Safety glasses
• Ladder
• Conduit fi tting
Additional item needed for junction box installation (not included):
• Junction box cover with threaded hole (1/2" NPT)
READ ALL INSTRUCTIONS CAREFULLY BEFORE
BEGINNING INSTALLATION.
NOTE: All wiring must be run in accordance with the National
Electrical Code (Canadian Electrical Code in Canada)
through conduit or another acceptable means. Contact a
qualifi ed electrician if there is any question as to the suit-
ability of the system.
© 2008 HeathCo LLC
• Bulb
• 1/2" NPT coupler
• Lag bolts (x3)
• Wire strippers/cutters
• Silicone caulk
• Black tape
Compact Fluorescent Dusk-to-
Dawn 42 Watt Security Light
Lamp in Fixture Contains Mercury. Dispose According
to Local, State, or Federal Laws.

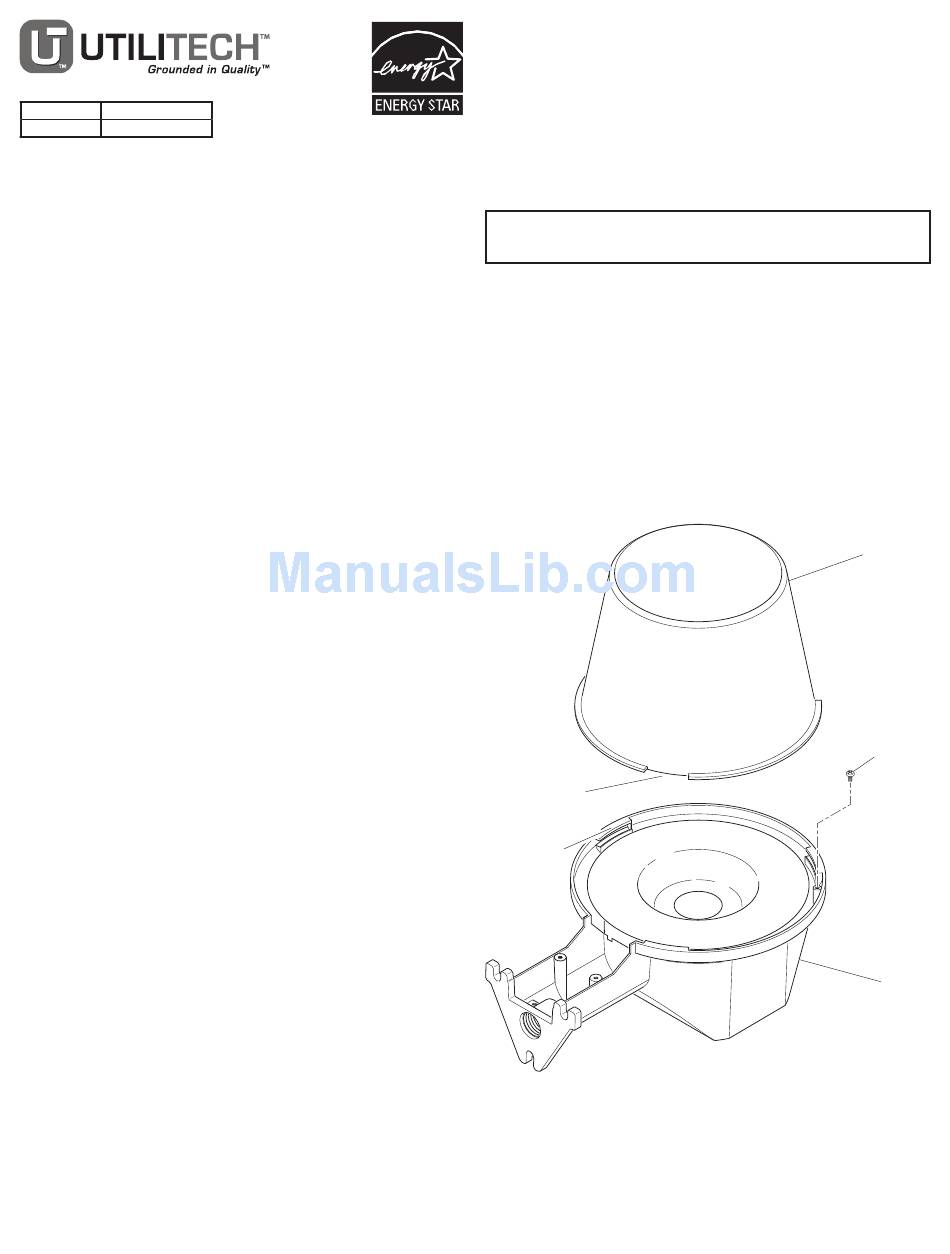

Installation of Diffuser
Note: It is recommended to install the diffuser before mounting
fi xture to wall or junction box.
1. Place fi xture upside down on a solid surface.
2. Remove diffuser locking screw from fi xture (see Figure 1).
3. Align the notches in the diffuser with the tabs on the fi xture and
place the diffuser on the fi xture (see Figure 1).
4. Rotate the diffuser clockwise until the diffuser stops (see Figure 1).
5. Install locking screw removed in step 2 (see Figure 1).
Diffuser Notch
Fixture Tab
Figure 1
598-1350-01
Diffuser
Diffuser
Locking
Screw
Fixture
