7 • Completing Your Installation With or Without a Light Fixture (Continued)
Uninstalling the Light Fixture
1. You must remove the wiring harness and its components
from the integrated light fixture. You must then install the
wiring harness into the empty switch housing included
with the fan.
2. Locate the reversing switch and carefully remove the two
screws holding the reversing switch to the lower switch
housing. Now, remove the reversing switch from the housing.
3. Remove the patented breakaway connector from the end
of the fan pull chain. Carefully loosen the bellmouth nut
from the pull chain and remove the pull chain switch from
the light fixture housing.
4. Locate and carefully remove the two capacitors.
5. In the light fixture housing there are the following plug
connectors: one multi-wire connector and two two-wire
connectors. Unplug the two-wire connectors; one connector
1
will have a black with white striped wire and a white wire
coming from the multi-wire connector.
6. You have now disconnected the wiring harness and its
components and are ready to install them into the empty switch
housing. (The light switch remains in the light assembly housing.)
7. Insert the pull chain and fan pull chain switch through the
round opening on the side of the empty switch housing. Thread
the bellmouth nut over the pull chain and hand tighten the
bellmouth nut.
8. Reattach the breakaway connector to the pull chain.
9. Insert the reversing switch into the square hole on the side
of the switch housing. Install and tighten the two screws you
removed previously from the other switch housing.
10. Carefully place the capacitors in the switch housing.
11. Install the switch housing cap and plug button to the lower
switch housing
12. Continue with Step 7-6 on page 11.
Hunter Fan Company

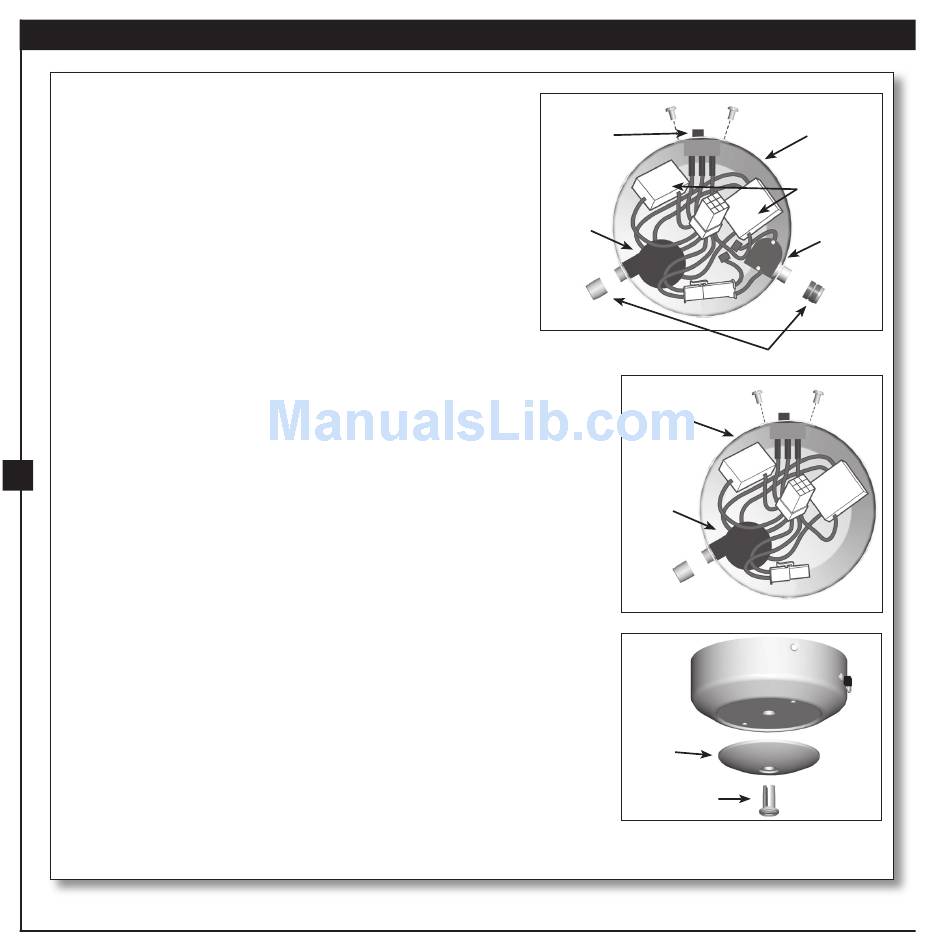

Steps 1 – 6
Reversing
Switch
Fan
Speed
Switch
Bellmouth Nuts
Steps 7 – 9
Switch
Housing
Fan
Speed
Switch
Cap
Plug Button
Light
Assembly
Housing
Capacitors
Light
Switch
Step 11
42741-01 • 1/25/07
