Models 6136 & 6138
Your wireless switched module system includes:
•
Remote wall switch
•
Receiver lamp module (SL-6138) or outlet module (SL-6136)
•
Two #8 x 2" wood screws
•
This manual
You will need to buy a 9-volt alkaline battery for the wireless switch. In typical
use, this battery will last one year.
Multiple channels (A thru E) are available so that you can operate several systems
at different locations in your home. If you purchase more than one system, make
sure you select different operating channels, or they will interact with each other.
If you purchase a different switch plate to match your decor, make sure it is not a
metal plate. Metal wall plates will reduce the operating range.

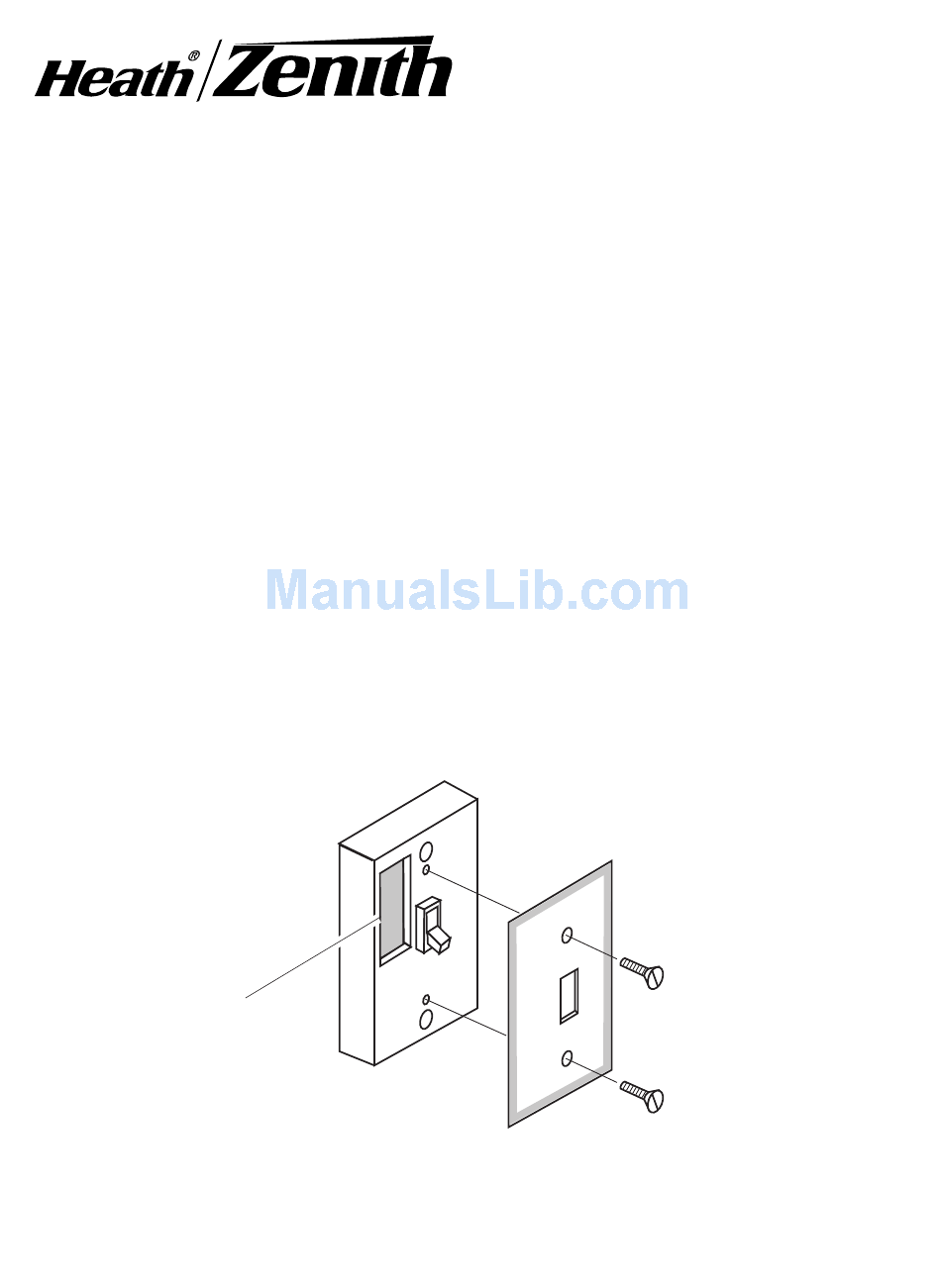

1. Install the 9-volt battery. Remove the switch cover from the transmitter as
shown (save the two screws). Snap the battery clips over the battery terminals
and set the battery into its compartment.
Battery
Compartment
© 2007 HeathCo LLC
Installation
Remote Switch
Wireless Lamp/
Outlet Modules
595-5627-04
