Heath Zenith Motion Sensor Light Control SL-5412 Owner's Manual

Motion Sensor Light
Control
As an ENERGY STAR
has determined that this product meets the EN-
ERGY STAR
This product is ENERGY STAR
when used with 120 Watt bulbs.
Model SL-5412
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight
hours.
• LED indicates motion was sensed (day or night).

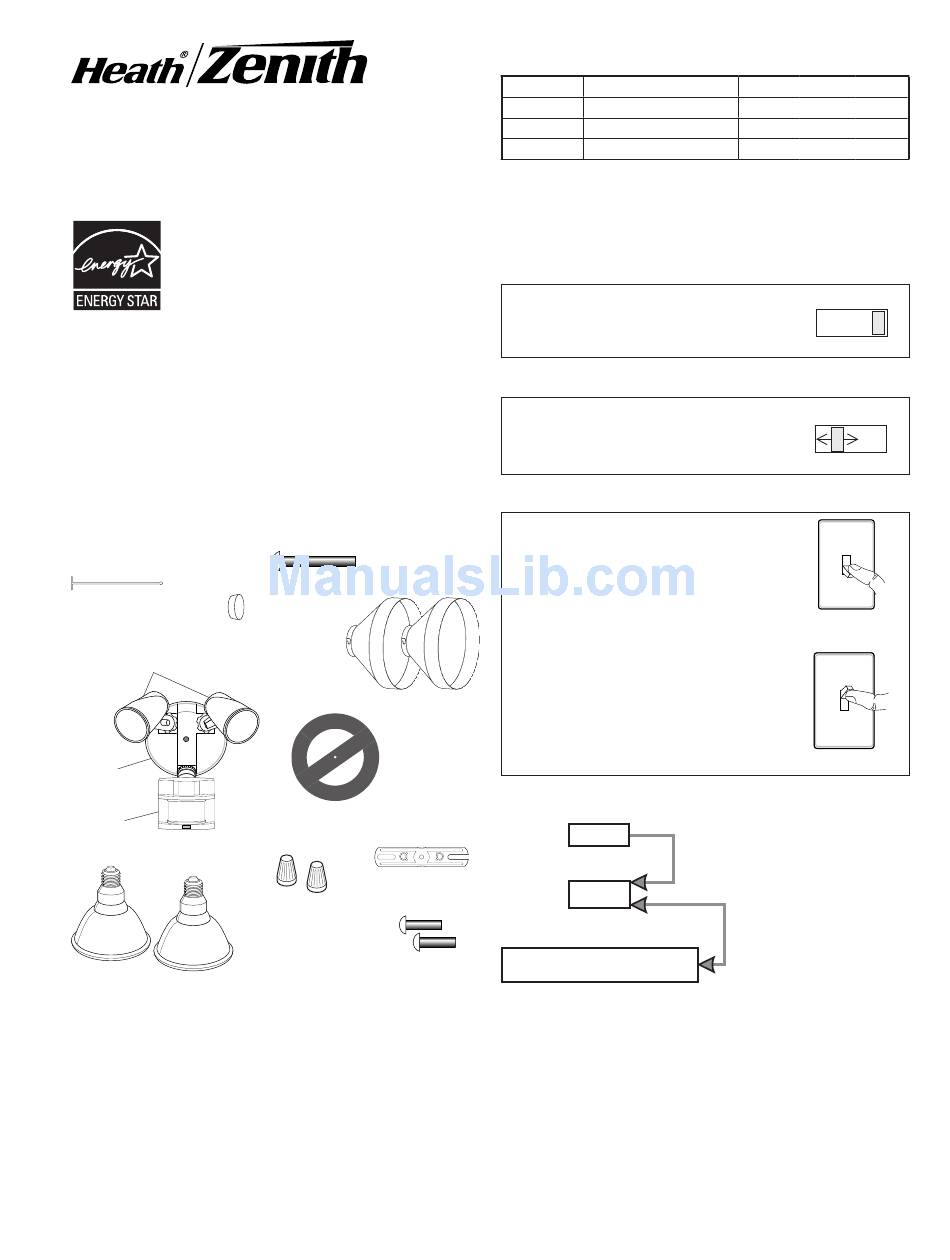

This package includes:
Plastic
Hanger
Rubber Plug
Lamp Holders
Cover
Plate

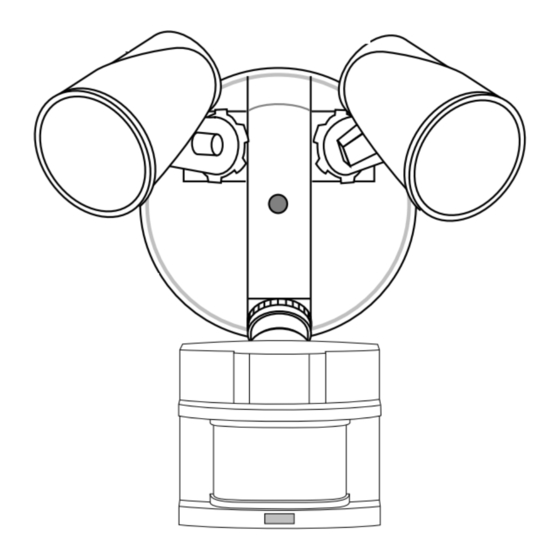

Sensor
Light Control
2 Flood Lamps
(some versions)
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
© 2007 HeathCo LLC
Partner, Heath /Zenith
® ®
guidelines for energy efficiency.
®
compliant
®
Mounting Bolt
2 Shells
Gasket
Mounting Strap
2 Wire
Connectors
6 Screws
(3 sizes included)
OPERATION
Mode: On-Time
Test
5 Seconds
Auto
1, 5, or 10 Minutes
Manual To Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Put the ON-TIME switch in the 1, 5,
or 10 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
Works: Day
x
/ minutes for
1
2
TEST
ON-TIME
10 5 1 TEST
AUTO
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
Move ON-TIME Switch to
1, 5, or 10 minutes
Flip light switch off
for one second then
back on*
598-1265-01
