Heath Zenith 4300 Manual

Diecast Motion
Sensing Porch Light
Model 4300
FEATURES
• Light comes on when motion is detected.
• Automatically turns light off.
• Half power Accent lighting.
• Photocell keeps the light off during daylight
hours.
This package includes:
• Porch Light
• Easy to use Universal Mounting Bracket
• Mounting Hardware
• Wire Nuts
• Lens Shield
REQUIREMENTS
• The light control requires 120 volts AC.
• If you want to use Manual Mode, the control must
be wired through a switch.
• Some electrical codes require installation by
a qualified electrician.

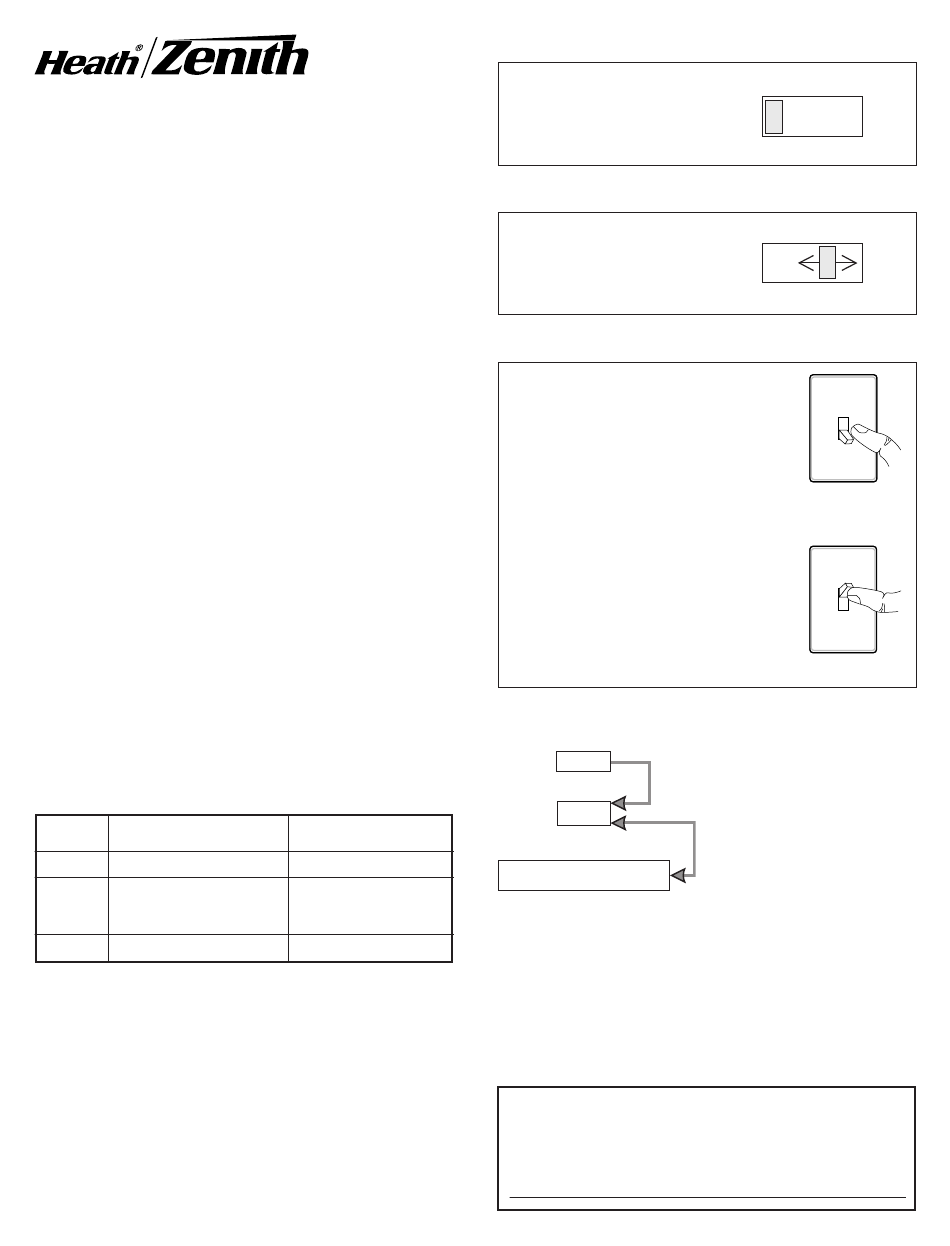

OPERATION
Mode: On-Time
Test 5 Seconds
Auto/
1, 5, or 10 minutes
Accent Off, 3, 6 Hr, to Dawn
Manual Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
for the circuitry to calibrate.
© 2012 HeathCo LLC
Works: Day Night
x x
x
x
x
/ minutes
1
2
TEST
Set the ON-TIME switch
on the sensor to TEST.
AUTO
Set ON-TIME switch to
1, 5, or 10 minutes.
MANUAL MODE
Manual mode only works at
night because daylight returns
the sensor to AUTO.
Flip the light switch off for one
second then back on to toggle
between AUTO and MANUAL
MODE.
Manual mode works only with
the ON-TIME switch in the 1,
5, or 10 position.
MODE SWITCHING SUMMARY
TEST
ON-TIME Switch at 1, 5, or
10 minutes
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
Before installation, record the model number
listed inside the fixture. Attach receipt in case
of possible warranty issues.
Model Number:
ON-TIME
TEST 1 5 10 MIN
ON-TIME
TEST 1 5 10 MIN
1 Second
OFF then...
... back on.
Flip light switch off
for one second then
back on*
204062-01A
