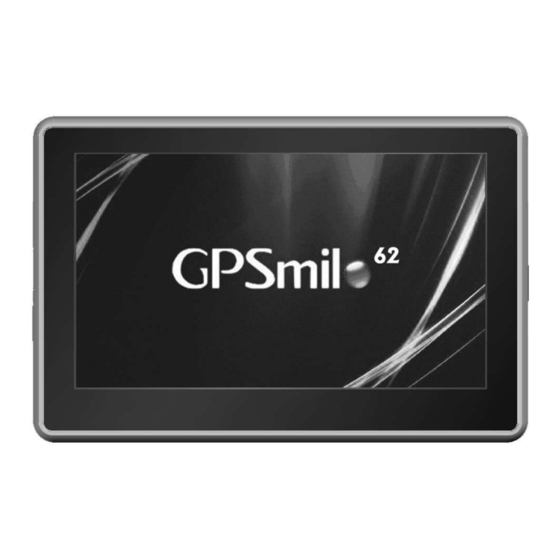

Portable Automobile Navigation System
Product User Manual
Version: 1.0
September 2008
Registered info
HOLUX and GPSmile are trademarks of HOLUX Technology, Inc.
All other trademarks belong to registered companies.
Note
The contents of this manual will be modified without further notice.
The operation temperature for the product is between 0 ~40
Operating or recharging in an environment with a temperature over
℃
45
might cause the system to
considered a normal phenomenon. Please do not operate under
extreme temperatures.
NAV iSlim
malfunction. However, this should be
i
℃
℃.
GPSmile62
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Holux GPSmile62
Summary of Contents for Holux GPSmile62
- Page 1 Portable Automobile Navigation System Product User Manual Version: 1.0 September 2008 Registered info HOLUX and GPSmile are trademarks of HOLUX Technology, Inc. All other trademarks belong to registered companies. Note The contents of this manual will be modified without further notice. ℃...
-
Page 2: Safety Precautions
1. Note: Replacing with an incorrect battery may result in an explosion. When disposing of the battery, follow the instructions. The replacement battery must be a factory approved original. 2. Regulations must be observed when recycling or disposing of batteries. 3. The battery should only be used in this device. GPSmile62... - Page 3 Holux Technology, or repairs done by anyone other than Holux Technology and authorized retail/service providers.
-
Page 4: Technical Support
Technical Support • If there are any questions regarding the use of this product, please log on to the website www.holux.com and see the FAQ. • If answers cannot be found on the website, please send us an e-mail at info@holux.com, stating your query and location. -
Page 5: Table Of Contents
Table of Contents Warranty Statement ............iii Technical Support............iv Maintenance Service............iv Preface ................1 Symbols ................1 Important Notice ...............1 Other Functions ..............2 First time use..............3 Copyright ...............3 Important Notice ............3 Package Contents .............4 Basic Operation ..............5 Introduction ..............5 Front View.................5 Rear View..................5 Left Side..................6 Right Side .................6 Top View ...................7... - Page 6 Using Functions..............18 Function Menu Music Playback Function ....19 Storing MUSIC files on Micro SD memory cards ..19 Starting music playback ..........19 Image Browsing Function...........24 Setting ................26 Volume & Light ..............26 Time .................. 28 Panel Adjustment ............29 Reset GPS ................ 31 Version................
- Page 7 Operating temperature............ 48 Avoid exposure to sunlight ..........49 Cleaning the screen ............49 Do not disassemble ............49 Storage .................49 Appendix................50 Specifications ..............50 Federal regulations ............52 GPSmile55...
-
Page 9: Preface
GPS related systems might be affected. • Any wireless communication products (mobile phone, radio, speed detection unit etc) might affect the GPS signal and result in a poor signal. • For safety reasons, do not operate this system while driving a vehicle. GPSmile62... -
Page 10: Other Functions
If the descriptions in this manual are different from your software version, please follow the software version currently on hand. Other Functions • Music playback: plays music files. • Video play films • Image display: displays photographs or image files GPSmile62 GPSmile62... -
Page 11: First Time Use
First time use Copyright Without the written consent of HOLUX Technology, Inc, this manual, including the product and the software, may not be duplicated, transmitted, recorded or saved on storage devices. Furthermore, it shall not be translated under any circumstances into any other languages. -
Page 12: Package Contents
Package Contents Your product should include the following accessories: NAV-62 Unit In-vehicle Bracket fixing Home / Travel Adapter Micro SD Card Car Adapter (Optional) (Optional) CD-ROM Quick Guide GPSmile62... -
Page 13: Basic Operation
Basic Operation Introduction Front View 5” TFT LCD with touch screen Rear View External Antenna port GPSmile62... -
Page 14: Left Side
Left Side Left Side Micro SD card Power button Earphone port USB port Right Side Battery GPSmile62 GPSmile62... -
Page 15: Top View
Top View Hot key Bottom View GPSmile62... -
Page 16: Getting Started
When removing the memory card, please make sure the card is not reading data, or it will cause a system crash. Do not set the Micro SD memory card as write protected, or the system will not operate properly. GPSmile62... - Page 17 When operating, accidental removal of the memory card will result in showing an error message. Please reinsert the memory card and the system may need to be reset before further use. GPSmile62...
-
Page 18: Charging
Plug the adapter into a power outlet. Plug the adapter into a power outlet. Please do not use USB cable to connect with PC/Laptop when battery low or without battery, it will be causing device can not boot. GPSmile62 GPSmile62... - Page 19 While using the device in a vehicle, use the included car charger for long periods of usage. Plug the small plug into the power jack on the rear 1-1 side of the device bracket is optional. Insert the other end into the cigarette lighter. *1-1 Optional in basic version. Optional GPSmile62...
- Page 20 When the unit is not in use for a long time, please remove the battery pack from the device. • When charging a completely depleted battery, wait at least one minute before starting up the system. This will prevent excessive battery discharge. GPSmile62...
-
Page 21: Using The In-Vehicle Bracket
This device will effectively secure the GPS unit in the vehicle. Follow the procedures below to secure the bracket: Follow the arrows and secure the unit into the in-vehicle bracket fitting holes. Gently push the unit until the unit is tightly fixed with the bracket. GPSmile62... - Page 22 Note: Please note the directions of the arrows. When secured, the assembly should be tight. If these directions are not followed, a loose fit will result, and components must be reassembled. GPSmile62...
- Page 23 Suction the vehicle bracket securely to the windshield, ensuring its base is resting firmly on the dashboard . Bend the bracket support to a proper angle ( ＆ ). The in-vehicle bracket assembly is complete. To remove the GPS unit, press the release button and unscrew GPSmile62...
- Page 24 When using the in-vehicle secure bracket, do not install it in a location that will block the view of the driver Recommended installation requirements: The bracket base should rest securely on the dashboard to prevent excessive shock. GPSmile62...
-
Page 25: Operating Methods
Operating Methods Startup For first time use, please press and hold the power button for about 0.5 second to turn on the power. Power button Shutdown While power is on, press the power button to turn the power off. GPSmile62... -
Page 26: Using Functions
Loads the navigation program and navigation screen Note: If a Micro SD card with navigator software is inserted, the system will automatically enter GPS function after startup. Multimedia MUSIC -- Plays music VIDEO -- Plays video PHOTO -- Plays images System setup SETTING GPSmile62... -
Page 27: Function Menu Music Playback Function
Insert the Micro SD memory card with stored MUSIC files into the Micro SD memory card slot on the unit. Turn the power on, and select the [Multimedia] icon on the main menu. Then select the [MUSIC] icon to start music playback. GPSmile62... - Page 28 The Music Playback Window. Use the buttons to control each playback function. playback function. Play / Pause Music Status Stop Progress bar Previous Repeat mode indicator Next Battery indicator Normal / All / Random / Timer Repeat mode Exit Help Volume display Play List GPSmile62 GPSmile62...
- Page 29 Play List : Select the Play List to add/delete music play list. MUSIC List On Micro SD Delete One Card Add All Exit Add One MUSIC List on the Device Delete All GPSmile62...
- Page 30 Insert the Micro SD memory card with Video files into the Micro SD memory card slot on the unit. Turn the power on, and select the [Multimedia] icon from the Main Menu Screen. Then select the [VIDEO] icon to read the film. GPSmile62...
- Page 31 Use the Up/Down arrow key to select the film. Help Previous Next Play Delete Exit Use the right/left arrow key to move forward/backward in the film. Video Displayed/ Status Total length Exit Previous Stop Next Delete Play/pause Full Screen Double Display speed GPSmile62...
-
Page 32: Image Browsing Function
Micro SD memory card slot on the unit. Turn the power on, and select the [Multimedia] icon on the Main Menu. Then select the [PHOTO] icon to start image browsing function. The Image Browsing Window. Help Previous Photo title Next Slide show Delete Exit GPSmile62 GPSmile62... - Page 33 Previous Next Exit Rotate Delete Information Viewing Size Slide show Zoom in Zoom out GPSmile62...
-
Page 34: Setting
Setting Volume & Light 1. After starting up the system, select the [SETTING] icon to enter. GPSmile62... - Page 35 Control the volume directly with the “speaker” icon. There are nine levels of volume. Select the “MUTING” icon to mute the Volume. b. Control the LCD Brightness with “light bulb” icon. There are nine levels of brightness. GPSmile62...
-
Page 36: Time
2. Access the Date pull down menu and choose the correct value. 3. Access the Time pull down menu and choose the correct value. 4. Access the Time Zone pull down menu and choose the correct value. 5.Select to return to main menu screen. GPSmile62... -
Page 37: Panel Adjustment
Control the unit through the finger or stylus by touching/writing on the screen. If the system cannot correctly identify your input, please run through the screen calibration procedure. From the settings window, select [Panel Adjustment] to start the screen calibration procedure. GPSmile62... - Page 38 Use the finger/stylus and touch the cross at the center of the screen once. Touch the cross in the second position once. Touch the cross in the third position once. Continue the calibration by touching the cross. The setting page will return when adjustment is finished. GPSmile62...
-
Page 39: Reset Gps
Reset GPS Select [Reset GPS] from the main screen to access the GPS settings screen. Select the “YES” icon to start the GPS reset procedure. Select the “NO” icon to return to the main “Setting” screen. GPSmile62... - Page 40 The following information is for "GPS reset fail!" The following information is for "GPS reset OK!" GPSmile62...
-
Page 41: Version
Version 1. Select [Version] from the main screen to access the Version screen. 2. The screen display will show the version information. GPSmile62... -
Page 42: Language
Warning Voice: Under the settings window, check the Warning Voice (check / uncheck) if you would like the startup message is to be broadcast. Click Voice: Under the setting windows, check the click voice to (check/uncheck) to enable / disable the click voice. GPSmile62... -
Page 43: Hot Key
Hot Key Press the [Hot key] to enter the “Volume” and ”LCD Brightness” screen. Hot key GPSmile62... -
Page 44: Bluetooth (Optional Function)
Bluetooth (Optional function) Make a call 1. Turn the power on and select "Bluetooth" in the main menu. The GPS will display "Bluetooth HF Phone" Menu. GPSmile62... - Page 45 2. Select ‘“Dialer” and the system will display the calling function menu. a. Use "Phonebook" to enter its menu. b. Use "Call History" to enter "Call History" menu. Dial Phone book Numbers Call History 3. Use "Numbers" to enter the desired telephone number and press "Dail" to dial. GPSmile62...
-
Page 46: Phonebook
1. Select "Phonebook" on the main menu to enter the "Phonebook" menu. menu. Previous Next Dial Delete Download Phonebook Phonebook 2. Use "Download Phonebook" to download the Phonebook in the Bluetooth device. 3. The information below is used in "Downloading Phonebook”. GPSmile62 GPSmile62... - Page 47 4. The information below is used for "The remote device does not support Phonebook Download". 5. Use up/down arrows to select the number to dial and then press “Dial” 6. Use "Delete all contacts" to delete all Phonebooks. 7. Select Start deleting. GPSmile62...
-
Page 48: Call History
Use up/down arrows to view Call History. b. Use "Content" to view conversation content. c. Use "Dialed Number " to view dial record. d. Use "Answered Calls" to view callers. e. Select the desired number and press “Dial” GPSmile62 GPSmile62... -
Page 49: Device List
Next Connect Delete Device Device a. Use up/down arrow to see Device List(s). b. Select desired device and press "Connect Device" to connect to device. c. Select the device to be deleted and press "Delete Device" to delete device. GPSmile62... -
Page 50: Device Manager
Device Manager Device Manager From the main menu, select "Device Manager" From the main menu, select "Device Manager" to enter "Device Manager". Previous Next Information Search Device Disconnect Settings Select "Settings" to enter "Settings" menu. GPSmile62 GPSmile62... -
Page 51: Search Device
English characters or numbers. Use "keypad" to enter the name for the new device and select start using new name. Search Device 1. Use "Search Device" to search for Blue. 2. tooth device and enter Device found menu. GPSmile62... - Page 52 3. Use "Search Device" to find Bluetooth device again. Previous Next Search Device Connect 4. Use up/down arrows to select the device you desire to Connect and press "Connect" to connect. 5. The information below is used during "Connection Established ". GPSmile62 GPSmile62...
- Page 53 6. The information below is used during "Pairing Fail". GPSmile62...
-
Page 54: Disconnect
Disconnect Disconnect Select the device to be disconnected, and then press "Disconnect" Select the device to be disconnected, and then press "Disconnect" disconnect connected Bluetooth device. Disconnect Information Use "Information" to display version information. GPSmile62 GPSmile62... -
Page 55: Troubleshooting
Remove the battery cover and then take out the battery pack. • Insert the battery pack to the system and insert the battery cover. • The system will immediately reset. • You will now see the main screen and the system is ready for use. GPSmile62... -
Page 56: Normal Care And Maintenance
Keep away from strong magnetic fields When using or storing, please keep away from strong electromagnetic/radioactive or magnetic field equipment. Operating temperature The products operating temperature is between 0°C ~ 40°C. Please do not operate it under extreme temperatures. GPSmile62... -
Page 57: Avoid Exposure To Sunlight
For storage, keep the unit in a dry box. Please do not keep the product in the following environments: Unventilated and humid locations. In a car window that is exposed to excessive amounts of sunlight. In an environment where humidity is over 90%. GPSmile62... -
Page 58: Appendix
◇ Operat ion: -10°C ~ 60°C Temperature ◇ Storage: -20°C ~ 70°C ◇ Operation: 0%~90% Humidity ◇ Storage: 0%~90% ◇ USB 2.0 ◇ mini USB Connector for USB client & DC power in Backlight Adjustment Software Backlight Adjustment Control GPSmile62... - Page 59 ◇ MUSIC Software ◇ Video ◇ Photo Bluetooth ◇Support PBAP(Phonebook) ◇Support HFP(Hands-Free) (Optional Function) TMC Traffic Receiver (Optional Function) Flash Memory Built-in 2G Flash (Optional Function) High Speed Processor Samsung S3C2443 533 MHz. (Optional Function) GPSmile62...
-
Page 60: Federal Regulations
Federal regulations This equipment is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. GPSmile62...
