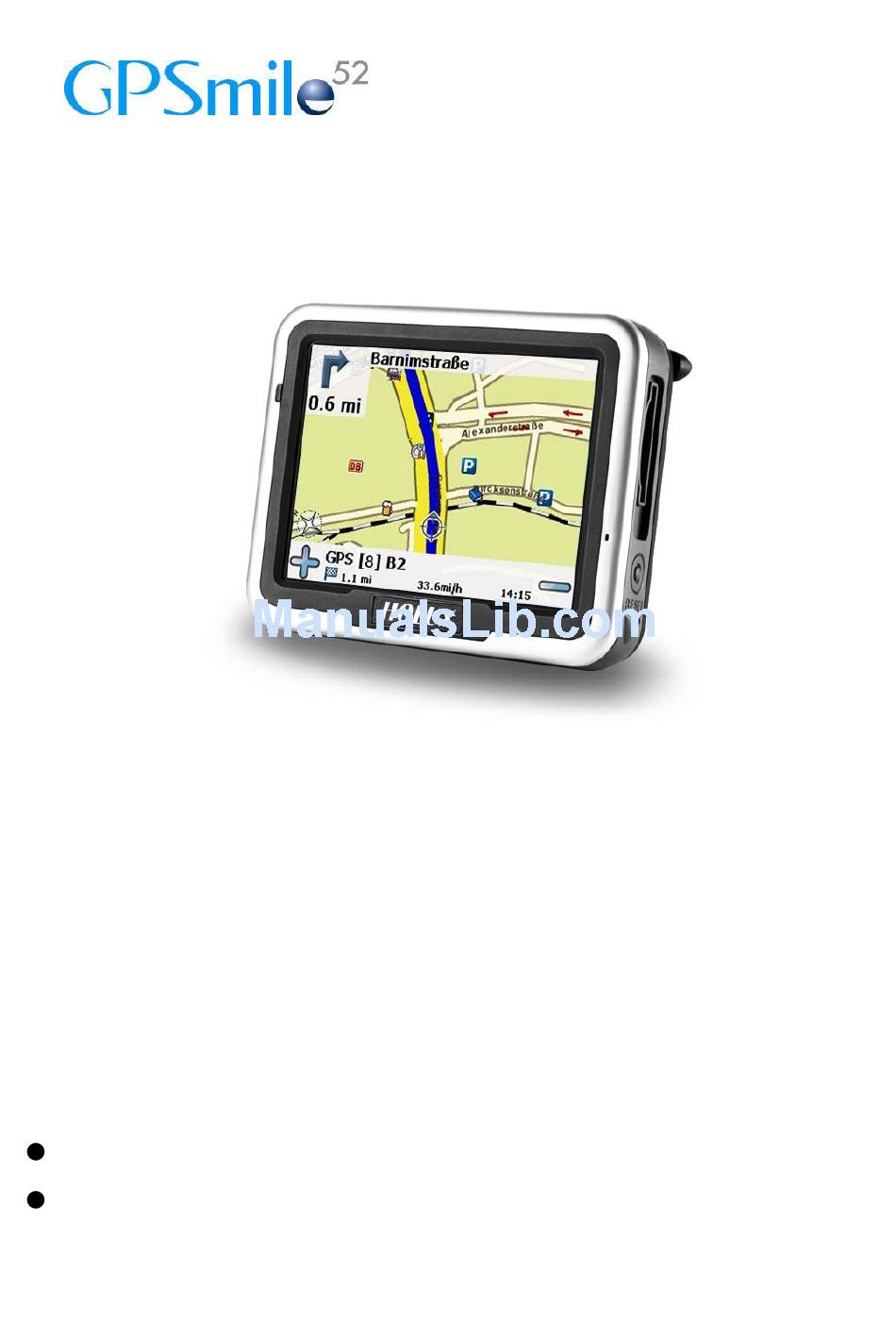

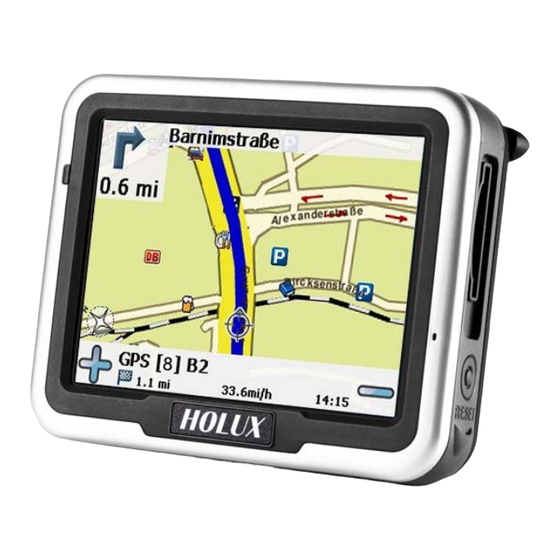

Portable Automobile
Navigation System
Product User Manual
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Holux GPSmile52
Summary of Contents for Holux GPSmile52
- Page 1 Version: V1.01 July 2006 Registered info HOLUX and GPSmile are trademarks of HOLUX Technology, Inc. All other trademarks belong to each registered companies. Note Contents of this manual will be modified without further notice. The products operating temperature is between 0°C ~ 40°C; please do not operate under extreme temperatures.
-
Page 5: Safety Precautions
Note: Replacing with an incorrect battery may result in an explosion. When disposing of the battery, follow the instructions. The replacement battery must be original factory approved. Regulations must be observed when recycling or disposing of batteries. The battery should only be used in this device. GPSmile52... -
Page 6: Warranty Statement
Holux Technology, or repairs done by anyone other than Holux Technology and authorized retail/service provider. -
Page 7: Technical Support
Technical Support • If there are any questions regarding the use of this product, please logon to the website www.holux.com and see the FAQ. • If answers cannot be found on the website, please send us an e-mail at info@holux.com.tw, stating your query and location. -
Page 8: Table Of Contents
Getting Started ...7 SD memory card installation... 7 Using the stylus ... 8 I/O interface ... 8 Charging... 9 Using the In Vehicle Bracket ... 11 Operating Methods ...13 Startup ... 13 Shutdown... 13 Using Functions ...14 Function Menu ...15 GPSmile52... - Page 9 Storing MP3 files onto SD memory cards... 21 Starting music playback... 21 Image Browsing Function... 23 Using the CD ...24 Troubleshooting...24 System reset ... 24 Quick Troubleshooting ... 25 Normal Care and Maintenance... 25 Storage... 26 Appendix...27 Specifications ... 27 GPSmile52...
-
Page 11: Preface
• The first GPS positioning should be performed at a single set point, wide-open area without building shelters. Positioning time length will depend on the satellite signal strength, cloud levels; possibly taking up to 10 minutes. -
Page 12: Other Functions
Other Functions • Music playback: plays MP3 music files. • Image display: displays photographs or image files. GPSmile52 Do not secure in front of airbag Do not place on unstable dashboard... -
Page 13: First Time Use
First time use Copyright Without the written consent of HOLUX Technology, Inc, this manual including the product and the software may not be duplicated, transmitted, recorded or saved on storage devices; nor shall it be translated under any circumstances into any other languages. -
Page 14: Package Contents
Package Contents Your product should include the following accessories: NAV-52 Unit In Vehicle Bracket Bracket fixing Home / Travel Adapter SD Memory Card Car Adapter (Optional) (Optional) CD-ROM Quick Guide GPSmile52... -
Page 15: Basic Operation
Basic Operation Introduction Front View Charging indicator LED Charging: Red Full: Green Rear View Stylus 3.5” TFT LCD with touch screen Speaker System power switch I/O interface GPSmile52... -
Page 16: Left Side
Left Side Right Side Top View Note: The Menu button is only functional during GPS navigation. GPSmile52 External Antenna port USB port Stylus SD card slot Reset button Power button Menu button... -
Page 17: Getting Started
The included memory card contains the digital map files that are required for the GPS navigational data. Please do not delete. When removing the memory card, please make sure the card is not reading data, or it will cause a system crash. -
Page 18: Using The Stylus
Pull out to use. Stylus I/O interface The I/O interface has five pins, and each pin function is described as below. GPSmile52 Function VCCIN (DC 5.4 ± 0.2 1A) Serial Data output port A (TTL Level；Voh≧2.4V，... -
Page 19: Charging
While using the device in a vehicle, use the included car charger for long periods of usage. Plug in the small plug into the power jack on the rear of the in vehicle bracket. Insert the other end into the cigarette lighter. GPSmile52... - Page 20 This will prevent excessive battery discharge. • When charging starts, the charging indicator light will be red, please wait for the charging to complete (this might take several hours). After charging is completed the indicator light will be green. Charging indicator LED GPSmile52...
-
Page 21: Using The In Vehicle Bracket
The included in vehicle bracket set can be securely suctioned on the front windshield, or using the adhesive plate, securing on top of the glove compartment. This device will effectively secure the GPS unit in the vehicle. Follow the procedures below to secure the bracket: Follow the arrows and stable the unit into the in-vehicle bracket fitting holes to secure. - Page 22 When using the in-vehicle secure bracket, do not install in a location that will block the view of the driver Recommended installation requirements: The bracket base should be resting securely on the dashboard to prevent excessive shock. GPSmile52...
-
Page 23: Operating Methods
Shutdown While power is on, press the power button to turn off power. If the unit will not be used for a long time, turn the system power switch at the rear side Off. System power switch Power button GPSmile52... -
Page 24: Using Functions
Directly select the icon onscreen to use the function. Loads the navigation program and navigation screen Note: If the SD card with navigator software is inserted, the system will enter GPS function automatically after startup. Music Plays MP3 music Photo... -
Page 25: Function Menu
The function menu is the main function window other than the navigation screen and includes system settings, navigation settings, schedule plans, GPS status, MP3, image browsing. Entering the Operation Menu Under the navigation screen, press the Menu button to enter the operational menu. Menu button GPSmile52... -
Page 26: Setting
The setting function gives you the ability to adjust the basic system options, including time settings, volume control, screen calibration, startup message, backlight setting, version info, and GPS reset etc. You can modify the settings according to personal preferences. System Settings... -
Page 27: Startup Message
Under the settings window, control the volume directly with the scroll bar. There are six levels of volume in total. Startup Message Under the settings window, select the Warning Voice On or Off for whether the startup message is to be broadcast. to keep original settings. Scroll Bar GPSmile52... -
Page 28: Stylus Adjustment
To finish the calibration procedure, press the Enter key to accept the new settings. Press the Esc key to keep the old settings. Select to go back to the main menu screen. GPSmile52... -
Page 29: Backlight Settings
(1 min, 3 min, 5 min, 10 min, 30 min, Always On). Scroll the brightness bar to control backlight brightness. There are six levels in total. Select to confirm or select Select to return to main menu screen. to keep the original settings. GPSmile52... - Page 30 1. Under the settings window, select Version to enter the version window. 2. The screen display will show the version information and instructions for operation of music playback and image browsing functions. 3. Select to exit the Version screen. GPSmile52...
-
Page 31: Music Playback Function
All the files need to be stored under the MP3 directory, and the file format needs to be “*.mp3”. Starting music playback Insert the SD memory card with stored MP3 files into the SD memory card slot on the unit. Power on, and select the [Music] icon on the main menu. GPSmile52... - Page 32 The Music Playback Window. Use the buttons to control each playback function. Play Next Stop Previous Repeat mode Battery indicator Timer GPSmile52 Volume up Volume down Repeat mode indicator Progress Bar Volume display Exit...
-
Page 33: Image Browsing Function
SD memory card slot on the unit. Power on, and select [Photo] icon on Main Menu. The Image Browsing Window. Exit Previous Multiple Next Previous Full screen mode Multiple Next Exit full screen mode GPSmile52... -
Page 34: Using The Cd
No response with selection on the screen. • Press the reset button on the right side of the unit. • The system will immediately reset. • You will now see the main screen and the system is ready for use. GPSmile52 Reset button... -
Page 35: Quick Troubleshooting
1. Connect adapter, restart system. 2. Reset system. 1. Check if the battery is low on power. 2. Reset system. Reset system. Make sure your current location is not obstructed by buildings or other interferences. GPSmile52... -
Page 36: Storage
Please do not keep the product in the following environments: Unventilated and humid locations. In a car window that is exposed to excessive amounts of sunlight. In an environment where humidity is over 90%. GPSmile52... -
Page 37: Appendix
3.5" high-brightness & contrast ratio transflective TFT LCD (16.7 M colors) with touch screen. 240 x 320 resolution Red/Green LED for battery charging status Built-in speaker. Software volume control. 0°C ~ 40°C -20°C ~ 70°C USB client; DC power in GPSmile52... - Page 38 GPSmile52...
