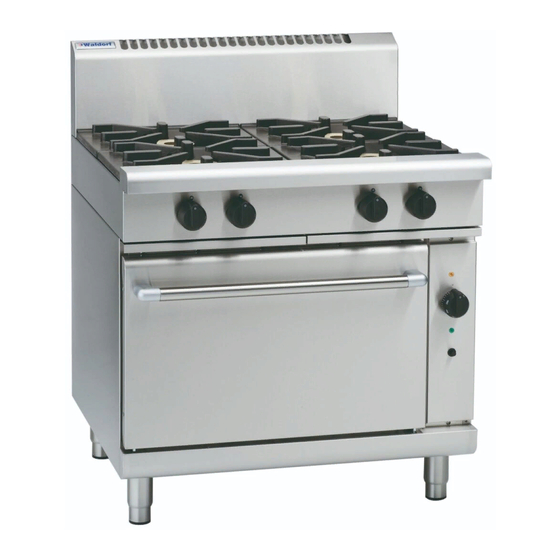

Waldorf RN8910GC Installation And Operation Manual
800 series gas range convection oven
Hide thumbs
Also See for RN8910GC:
- Installation and operation manual (28 pages) ,
- Installation and operation manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Waldorf RN8910GC
Summary of Contents for Waldorf RN8910GC
-
Page 1: Convection Oven
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Range Convection Oven RN8910GC RNL8910GC Date Purchased Serial Number... - Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA...
-
Page 3: Table Of Contents
Contents Contents Waldorf Gas Range Convection Oven RN(L)8910GC Gas Range Convection Oven - 4 Burner, 900 mm Wide. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Electrical Supply Requirements Dimensions ....................5 Installation .................... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF Gas Range Convection Oven, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification RN[1]8910GC [2] 4 Open Burners + Turbofan Convection Oven. NOTE: [1] - Back Options; - Standard Models. - Low Back Models. [2] - Open Burner Options; - With Flame Failure Protection. - With Pilot and Flame Failure Protection. General A heavy duty, general purpose gas convection oven - range created for compact modular kitchens. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Australia / New Zealand Only: Natural Gas LP Gas (Propane) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner (26,540 Btu/hr) (26,540 Btu/hr) 30 MJ/hr 30 MJ/hr - Oven (28,434 Btu/hr) (28,434 Btu/hr) 1.13 - 3.40 kPa 2.75 - 4.50 kPa Supply Pressure... -
Page 7: Dimensions
Dimensions RN(L)8910GC Cooktop Options... -
Page 8: Installation
Waldorf Gas Range Convection Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 9: Clearances
Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right hand side 250mm (*) Rear 100mm * Side clearances can be 50mm when adjacent surface is at least 100mm below cooking surface. Assembly All Models are delivered completely assembled. -
Page 10: Electrical Connection
Installation Regulator connections are " BSP female. Connection to appliance is " BSP male. (Refer to ‘Specifications’ section for gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to individual appliance supply line. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so appliance is level and at correct height. -
Page 11: Operation
/ operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. -
Page 12: Open Burners
Operation Open Burners NOTE: Only cooking pans from size Ø 150mm to Ø 420mm are suitable fo use on these open burners. Flame Failure Option (F-Models) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off gas supply to that burner should burner go out, so that un-burnt gas is not expelled. -
Page 13: Oven Pilot Ignition
Operation Oven Pilot Ignition ! IMPORTANT Pilot Burner DO NOT USE aluminium foil or trays directly on cast iron Inspection Covers sole plate(s). NEVER block or cover openings on each side of sole plate(s). This oven is fitted with a pilot as a standard option and flame failure protection, which is incorporated by way of a thermo- electric system for main burner. -
Page 14: Oven 'Shut Down
Operation Oven ‘Shut-Down’ To ‘Shut Down’ oven, turn oven thermostat to ‘0’ position, oven main burners will go out. Turn gas control valve to 'OFF' position and this will extinguish pilot burner. (To relight pilot burner, refer to ‘Oven Pilot Ignition’ above). Turn ‘OFF’... -
Page 15: Cleaning And Maintenance
Cleaning and Maintenance General Caution Always turn off the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean the range regularly. A clean range looks better, will last longer and will perform better. Carbonised grease on surface or between trivets will hinder transfer of heat from cooking surface to the food. -
Page 16: Weekly Cleaning
Cleaning and Maintenance Weekly Cleaning NOTE: If range usage is very high, we recommend that weekly cleaning procedure is carried out on a more frequent basis. Ensure protective gloves are worn during cleaning process. DO NOT use harsh abrasive detergents, strong solvents or caustic detergents as they will damage range, burners and plates. - Page 17 Cleaning and Maintenance Burner Trivets and Burners a. Remove trivets from top of appliance, taking note that trivets are manufactured with a lip on one edge, lip must always be fitted to outer edge (front and back) of range. (See Fig 10). b.
-
Page 18: Periodic Maintenance
Cleaning and Maintenance NOTE: It is imperative that trivet supports are correctly re-fitted to appliance to ensure that trivets locate Notice Lip on correctly and sit flush and level. NOTE that trivet Trivet Edge support front end side rail profiles are different at either side (Refer to Fig 6) and only one of side rails seat into cut-out in range, whereas rear end of trivet support side rail profiles are same and have 2... -
Page 19: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 20: Wiring Schematic
Wiring Schematic RN8941GC GREEN BLUE BLACK BROWN GREEN BLUE BLACK BROWN... -
Page 21: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure that the Appliance is isolated from the gas supply before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... -
Page 22: Gas Regulator
Gas Conversion and Specifications Convection Oven Thermocouple Piezo Igniter Carry out the following:- Remove lower lintel at front of oven. Pilot Burner Main Burner Open oven door and remove sole plate(s). Loosen clamp bracket and remove main burner. -
Page 23: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia / New Zealand Only Natural Gas LP Gas (Propane) Main Burner Injectors Ø 2.45mm Ø 1.50mm Open Burner Pilot Burner ('PF' Option Only) 0.30 0.20 Main Burner Ø 2.60mm Ø 1.60mm Pilot Burner 0.35 0.23 Oven... -
Page 24: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual). - Page 25 Replacement Parts List Oven 232233 Knob Thermostat (80-300°C). 227933 Oven Burner. 018691K Oven Pilot Burner Kit. 020253 Oven Thermocouple (1200 mm). 018743 Thermocouple Spacer. 032260 Oven Burner Injector (Nat Gas) 2.60mm. 032160 Oven Burner Injector (LPG) 1.60mm. 026488 Pilot Injector (Nat.
