Kenmore 625.384480 Owner's Manual

Heavy duty whole house water filter
Hide thumbs

Advertisement

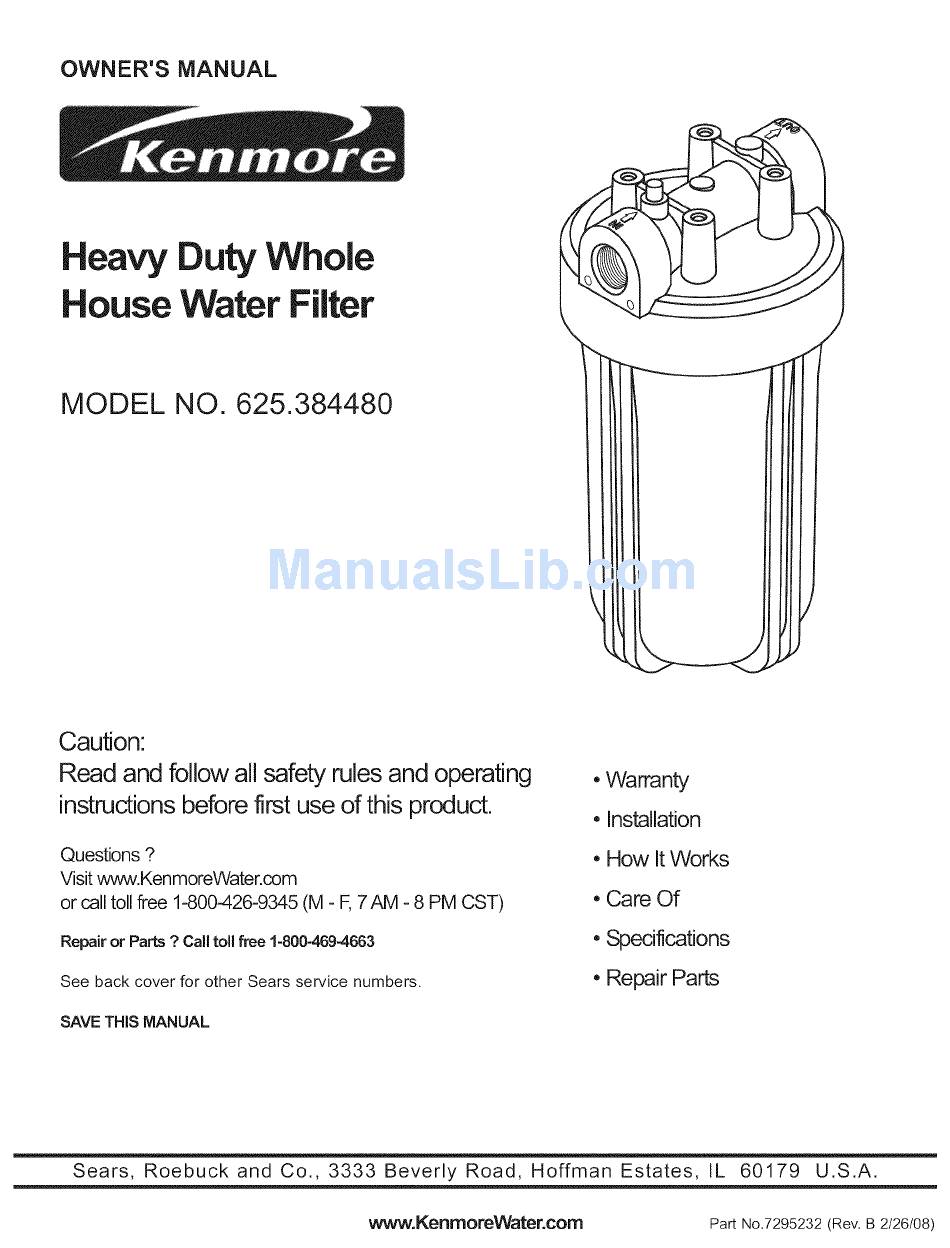

OWNER'S
MANUAL
Heavy
,yWhole
House Water Filter
MODEL NO. 625.384480
Caution:
Read and follow all safety rules and operating
instructions before first use of this product.
Questions ?
Visit www.KenmoreWater.com
or call toll free 1-800-426-9345 (M - F, 7 AM - 8 PM CST)
Repair or Parts ? Call toll free 1-800-469-4663
See back cover for other Sears service numbers.
SAVE THIS MANUAL
• Warranty
• Installation
• How It Works
• Care Of
• Specifications
• Repair Parts
Sears,
Roebuck
and Co.,
3333
Beverly
Road,
Hoffman
Estates,
IL
60179
U.S.A.
_K_n_t.KerlllloreWater.com
Part No.7295232
(Rev. B 2/26/08)

Advertisement

Table of Contents
loading

  Related Manuals for Kenmore 625.384480

  Summary of Contents for Kenmore 625.384480

  • Page 1 OWNER'S MANUAL Heavy ,yWhole House Water Filter MODEL NO. 625.384480 Caution: Read and follow all safety rules and operating • Warranty instructions before first use of this product. • Installation Questions ? • How It Works Visit www.KenmoreWater.com • Care Of or call toll free 1-800-426-9345 (M - F, 7 AM - 8 PM CST) •...
  • Page 2 This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Sears, Roebuck and Co., Hoffman Estates, IL 60179 14-1/8" -_7-1/4"_ 7-1/4" _ Questions? Call The Kenmore Water Line 1=800=426=9345 or visit KenmoreWater.com...
  • Page 3 7 days after replacing filter. Y Not to be used on water that is microbiologically unsafe or of unknown quality without adequate disin- fection before or after the system. Questions? Call Kenmore Water Line 1=800o426=9345 or visit KenmoreWater.com...
  • Page 4 If you live in the state of Massachusetts, review plumb- ing code 248-CMR of the Commonwealth Massachusetts before proceeding with the installation. Bag Assembly Mounting Screws Heavy Duty Whole House Sump Wrench Mounting Bracket Water Filter Assembly Questions? Call The Kenmore Water Line 1=800-426=9345 or visit KenmoreWatencom...
  • Page 5: Installation

    Heavy Duty Water Filter Make a simple sketch of your proposed installation, H OT a list of plumbing materials you will need. Obtain everything you need before starting the installation. Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 6 1" Hex Union Optional 1" on the supply pipes. removing fl_e Nipple Fitting Shutoff Nipple sump (to change Valve (2) the cartridge). Figure 5 Figure See Note in Figure Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 7 Wi___ have broken this ground. 'lb restore, buy and install a #4 copper wire across the filtex, tightly clamped at both ends, as shown in Figure 10. Clamp Figure Questions? Call Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 8: Water Filter

    10. After it cools, apply 4 wraps of Teflon tape to the threads on the sweat adaptor fitting. Apply flux and Figure continued Questions? Call The Kenmore Water Line 1=800-426=9345 or visit KenmoreWater.com...
  • Page 9 If using rigid pipe, be sure to allow a mini- from the filter head and install tile filter cartridge (See mum of 2" clearance under the filter for sump removal Page 10). when changing the filter cartridge. Questions? Call Kenmore Water Line 1=800o426=9345 or visit KenmoreWater.com...
  • Page 10: Filter Cartridge

    Be sure it is fully seated in the groove. Turn to the left 6. Hold the sump up to the filter head, aligning the cen- Figure tO renlovo Questions? Call The Kenmore Water Line 1=800-426=9345 or visit KenmoreWatencom...
  • Page 11 Filter Cartridge, Taste & Odor * 7295232 Owner's Manual Filter cartridges are not included. Purchase replacement filter cartridges at your local Sears store, online at www.sears.com or from Sears Parts at 1-800-469-4663. Not illustrated. Questions? Call The Kenmore Water Line 1=800o426=9345 or visit KenmoreWater.com...
  • Page 12 Your Home iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii For repair - in your home - of all major brand appliances, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii lawn and garden equipment, or heating and cooling systems, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii no matter who made it, no matter who sold it! iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii For the replacement parts, accessories iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii...
  • Page 13 MANUAL DEL PROPIETARIO Filtro de agua de servicio pesado para toda la casa MODELO No. 625.384480 Precauci6n: Antes de usar este producto por primera vez, • Garantia lea y siga todas las reglas de seguridad y las • Instalaci6n instrucciones de operaci6n.
  • Page 14 Esta garantia le otorga derechos legales especificos, yes posible que usted tenga otros derechos, los cuales varian de una jurisdicci6n a otra. Sears, Roebuck and Co., Hoffman Estates, IL 60179 14-1/8" -'_7-1/4"_ --',_ 7-1/4" _ &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio KenmoreWater.com.
  • Page 15 &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 16 Tomillos montaje Soporte de montaje Conjunto del filtro de agua de servicio Llave para vaso colector pesado para toda la casa LTiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 17 Obtenga todo Io que necesite antes de comenzar /I,} 1_]_ pesado instalaci6n. Figura 2 _.Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 18 (a fin de opcional 1 pulg. de suministro. cambiar el cartucho). x___Z Figura Figura Vea la nora en la Figura 3 &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 19 No. 4 e instSlelo encima del filtro, fijSndolo firmemente con abrazaderas a ambos extremos, como se ilustra en la Abrazadera Figura 10. gu alO LTiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 20 10. Cuando se haya enfriado el metal, aplique varias vueltas de cinta de Teflon:' a la rosca del adaptador para estafio. Figura Continfia &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio KenmoreWater.com.
  • Page 21 (Vea la pfigina 10.) i.Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 22 Gire a la izquierda para retirarlo Figura LTiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio KenmoreWater.com.
  • Page 23 No se incluyen los cartuchos filtrantes. Para obtener estos cartuchos filtrantes, recurra a su tienda Sears local o visite el sitio web www.sears.com. • No se ilustra. gTiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 24 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances...
