5.3 Connecting the REMOTE Terminal Block Connector

You can force the routing of one of the two inputs to the UXGA output by

remote control. To do so, connect the appropriate REMOTE input terminal

block connector pins to a contact closure switch

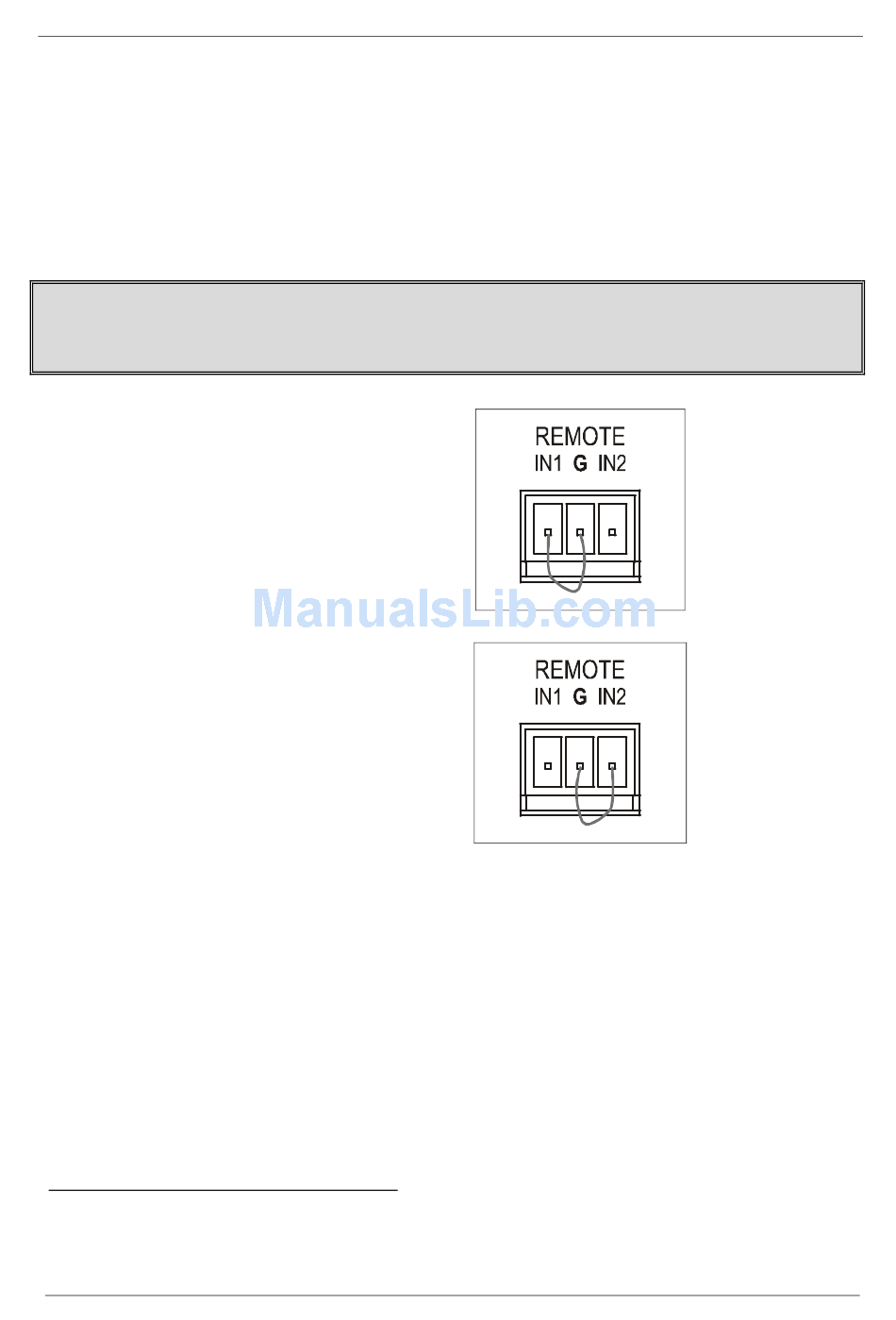

illustrates, to route REMOTE IN1 to the UXGA output, connect PIN IN1 to

PIN G (Ground). To route REMOTE IN2 to the UXGA output, connect PIN

IN2 to PIN G.

Do not connect both the REMOTE IN1 and the REMOTE IN2 to PIN G

Route input 1 to the output,

by attaching PIN IN1 to PIN

Route input 2 to the output,

by attaching PIN IN2 to PIN

1 Note that the connection should be permanent, since the VP-211K will revert to an automatic switcher when the connection

is removed

simultaneously

. For example, as Figure 3
