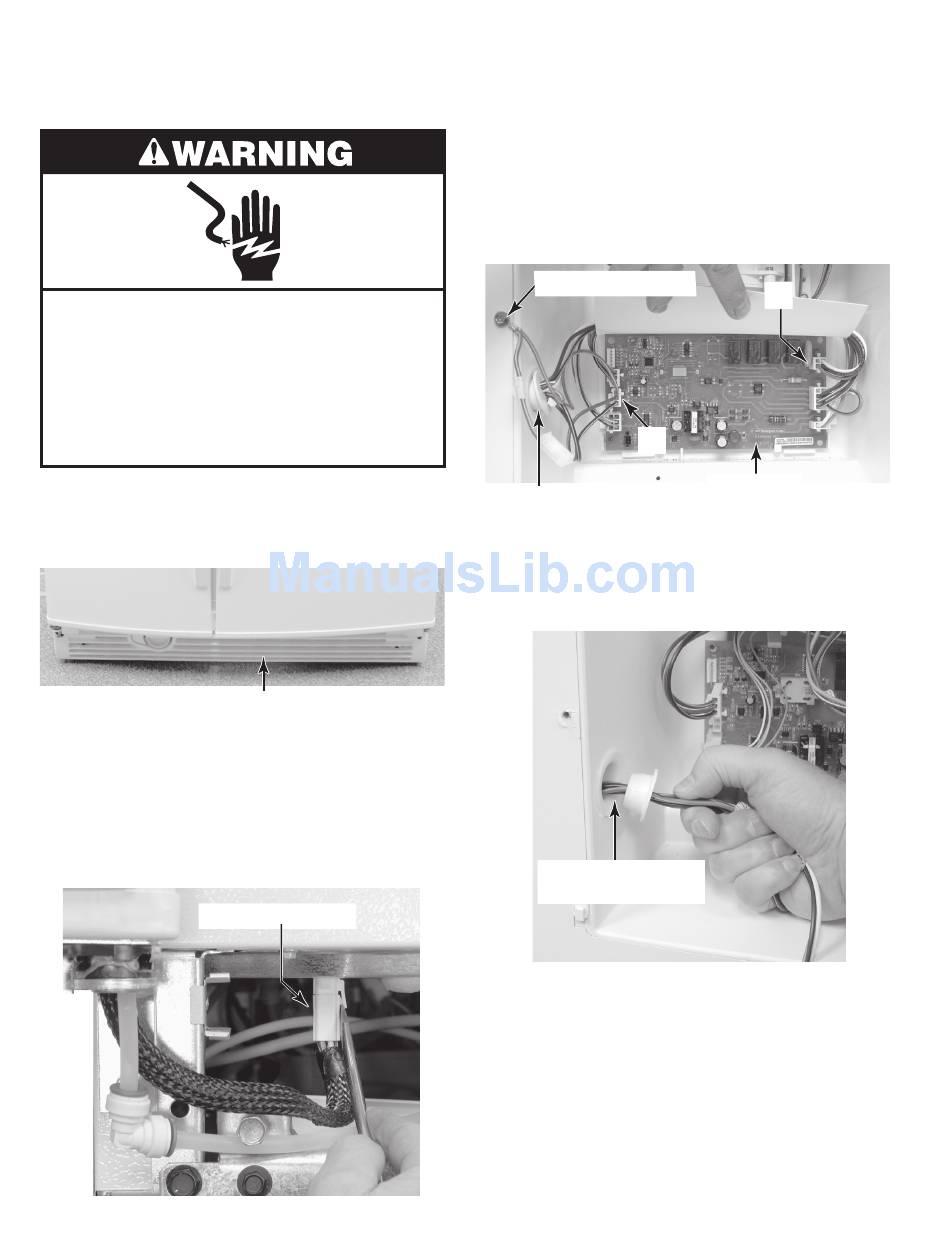

DISPENSER SUPPLY HARNESS AND WATER TUBE
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug refrigerator or disconnect power.
2. Open the refrigerator and freezer doors
and remove the bottom grille.
Bottom Grille
3. To remove the freezer door dispenser
supply harness:
a) Using a screwdriver, pry out on the
harness connector locking tab, and
disconnect the harness connector from
the main harness.
Harness Connector
REMOVING THE FREEZER DOOR
b) Remove the dispenser cover assembly
(see page 3-2 for the procedure).
c) Disconnect harness connectors P1 and
P7 from the core board.
d) Disconnect the ground wire screw.
Ground Wire Screw
Harness Channel Opening
e) Grasp the ends of the harness wires
firmly and pull the harness up and out
of the channel opening in the freezer
door.
Pull Harness Out
Of Channel Opening
4. To remove the dispenser water tube:
a) Turn off the water supply to the refrig-
erator.
b) Place a towel or a small container to
catch any water when you disconnect
the water supply tubing under the
freezer door hinge.
3-8
P1
P7
Core Board
