i-limb
digits
TM

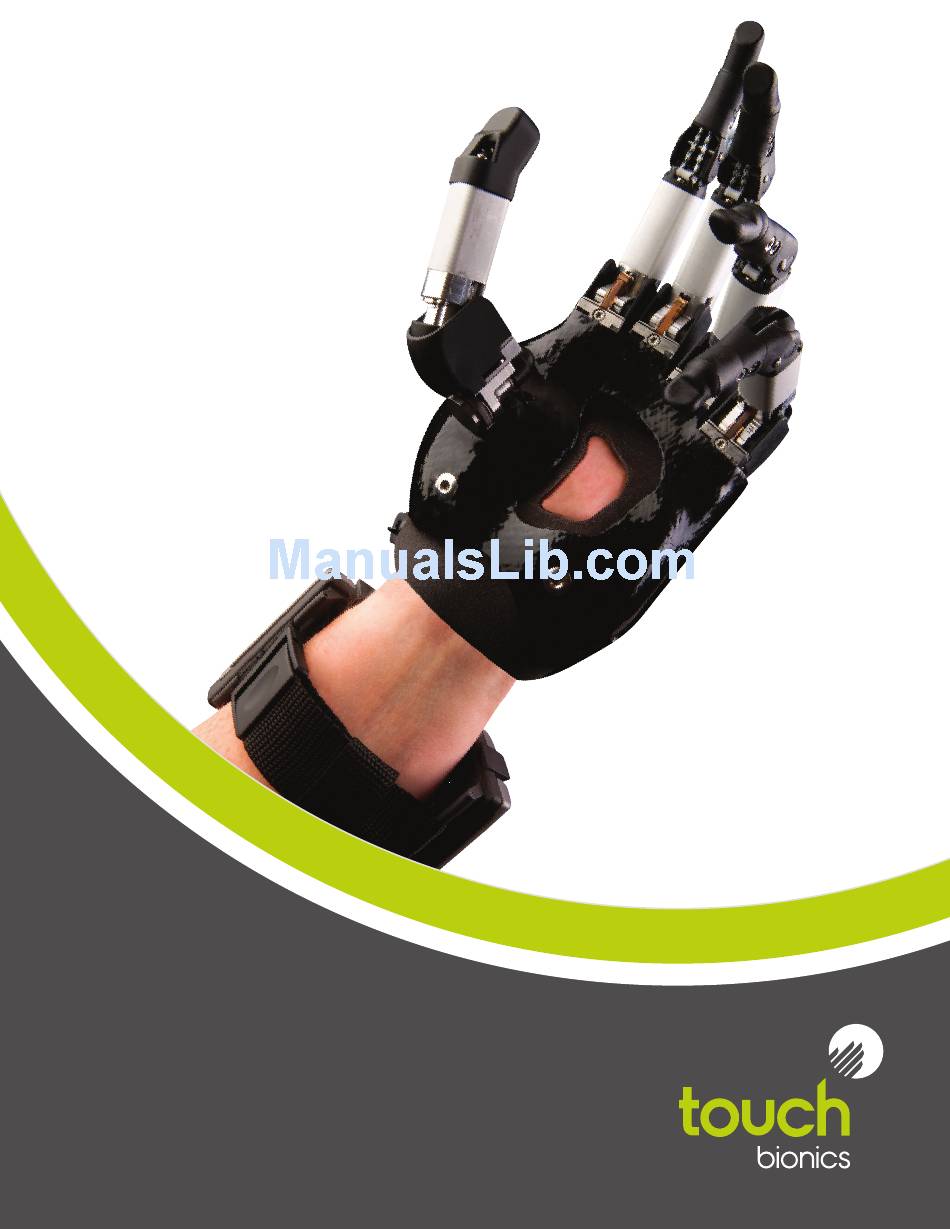

User Manual
Part number: MA01063: Issue No. 1, December 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-limb digits and is the answer not in the manual?

Questions and answers

Related Manuals for touch bionics i-limb digits

Summary of Contents for touch bionics i-limb digits

  • Page 1 i-limb digits User Manual Part number: MA01063: Issue No. 1, December 2012...
  • Page 2 This document provides information for i-limb digits users and should be used in conjunction with advice from a qualified clinical team with experience of i-limb digits. This symbol signifies important information and is used throughout the manual. Refer to www.touchbionics.com to ensure the latest copy of this document.

  • Page 3: Table Of Contents

    Overview biosim Connecting Navigating biosim 3.3.1 Features 3.3.2 Training 3.3.3 Hand Health Check 3.3.4 Exit i-limb digits Coverings Cover Options Support Information Troubleshooting Warnings and Precautions User Information User Details Appendix Technical Information Component Compatibility Warranty 3 of 27...

  • Page 4: I-Limb Digits

    These various grasping patterns will be discussed in more detail later in this manual as well as how the i-limb digits can assist you in completing your daily activities, work tasks, and even some hobbies.
  • Page 5 To get the most out of the device do not use the i-limb digits When carrying a bag or other object protect the hand by resting device where you would not use a natural hand.

  • Page 6: Socket Interface

    2.0 Socket Interface 2.1 Socket Interface and Electrodes Your i-limb digits device has been designed with a socket method for you to provide control of your device. This tells the processor (the brains of the hand) whether you want the hand interface which has been specially created by your prosthetist to open or close.
  • Page 7 Release the holding catch to remove the battery. The batteries provided are designed to work specifically with the Touch Bionics i-limb digits Wristband and are not to be used with any other device. Only Touch Bionics batteries are approved for use with i-limb digits, use of alternative batteries will invalidate the warranty.
  • Page 8 2.3 Battery Charging Batteries for i-limb digits should only be charged using the Touch Bionics powerpack and battery charger supplied (UK, European and US style plugs are available). Place the batteries in the charger as illustrated. Insert the charger lead from the battery powerpack into the charge port.
  • Page 9 As an alternative to charging directly from domestic power, a car charger (PL069380A) is also available. 2.4 Storage and Maintenance Always turn off the hand when not in use. Aim to charge the battery each day after use. Replace the battery every 12 months. 9 of 27 Part number: MA01063: Issue No.

  • Page 10: Biosim

    “handshake installed and ready” box will then self-tick and the second icon “Turn device off, then back on” will begin to flash. At this point the i-limb digits device should be turned off and then on. The third icon “Connecting to device” will be constantly lit.
  • Page 11 If there is more than one device (either i-limb digits, i-limb ultra or virtu limb) within range of the Bluetooth® receiver then a box will appear listing all devices by serial number. In the illustration only one device is listed. The correct i-limb digits device can then be selected from the list.
  • Page 12 This is the homepage and can be accessed at any time from subsequent pages. Features allows the set-up of the i-limb digits and is where triggers are linked with with grip patterns and gestures. Training provides access to the training suite and a selection of games to improve overall control.
  • Page 13 3.3.1 Features Click on the features icon to enter the features suite. The feature page provides access to all available features and associated changes. Features are the actual movements of the hand and triggers are the muscle action used to create the movements. The grip patterns illustrated are: First row –...
  • Page 14 Additional Grip and Gesture Options Thumb Park Continuous Thumb Park Quick all four fingers remain open and switch off, all four fingers remain open and switch only the thumb will move. off, for 1.5 seconds the thumb will close and then automatically return to an open position.
  • Page 15 Triggers Four potential triggers are available to activate features: Hold open, Co-contraction, Double impulse and Triple impulse. Hold open (a prolonged open signal) Co-contraction (both open and closed signals activated simultaneously) may have already been customized by your prosthetist to be suited to your own unique signals. Double impulse (two rapid open signals, separated by relaxation below the threshold).
  • Page 16 3.3.2 Training The training suite contains a variety of short training exercises aimed at developing control of the i-limb digits device. The opening screen highlights the series of exercises which can be selected individually and in any order. Both open and closed signals can be practiced by selecting the appropriate box to the right.
  • Page 17 focuses generating quick, strong Co-contraction simultaneous contractions with both muscles. Do not be concerned with relaxing after the contraction. Hold Open focuses on generating a strong open muscle signal and maintaining it at a high level for several seconds. Mastering this exercise will enable use of the hold open trigger.
  • Page 18 The i-limb digits device will then go through a series of movements as each digit is checked, the process will run for approximately 8 seconds and provide basic feedback on each step. 3.3.4 Exit Use the Exit icon to fully exit biosim.

  • Page 19: I-Limb Digits Coverings

    4.0 i-limb digits Coverings 4.1 Cover Options Silicone digit covers will be provided for the i-limb digits device. Digit covers will be ready to fit and designed to cover each digit. Touch Bionics’ approved digit covers must be used with each digit of the device.

  • Page 20: Support Information

    Ensure the battery is charged Prosthesis stops midway Check the battery cable is not damaged through an action Check that the i-limb digits device is connected correctly Prosthesis is difficult to Ensure the battery has good charge operate Battery charge does not last...
  • Page 21 Failure to comply with the above guidelines will invalidate the warranty. A list of frequently asked questions can be found on the Touch Bionics website. If you experience technical North American Customers (Canada, Mexico &...
  • Page 22 Touch Bionics is aware that patients have used the i-limb to drive a motor vehicle and our recommendations prior to a patient doing so would include the following:- •...

  • Page 23: User Information

    6.1 User Details Provision of the following basic information will enable easy identification if the prosthesis is returned to Touch Bionics customer service. Please forward details to Touch Bionics as per the contact information on the back page of the manual.

  • Page 24: Appendix

    1. General Safety 1.1 The i-limb digits device is an electrical device, which under certain circumstances could present an electrical shock hazard to the user. Please read the accompanying user manual thoroughly and follow directions stated in the manual to assure maximum safety during charging and operation.
  • Page 25 For i-limb digits devices: Each device has a guaranteed unique id number example: 0001:2012 The unique serial number for i-limb digits devices is a D with a 4 digit alpha / numeric number. The year of manufacture of the device is then added.

  • Page 26: Warranty

    Limited Warranty for i-limb digits Touch Bionics warrants that the i-limb digits components will conform to its specifications and be free of defects in material and/ or workmanship for a period of thirty-six (36) months from the date of Touch Bionics invoice for i-limb digits components. This Limited Warranty applies only to i-limb digits components provided by Touch Bionics or an accredited Touch Bionics provider.
  • Page 27 Third party products and brand names may be trademarks or registered trademarks of their respective owners © Copyright 2012 Touch Bionics Inc. and Touch EMAS Ltd. All rights reserved. Issue No. 1, December 2012 Part number: MA0163...
