Airmar PB200 Owner's Manual & Installation Instructions page 12

alignment
key
captive
nut
6. With the nut assembly on the cable near the WeatherStation connector, thread
the cable through the extension tube (if used), antenna mount, and the cable
exit. Be sure to leave several inches of cable extending beyond the nut
assembly (see Figure 5).
CAUTION: If you use a thread lock, use plumber's tape. Do not use a liquid thread
lock as it may weaken the plastic, causing it to swell and crack.
7. Screw the nut assembly onto the top of the antenna mount/extension tube.
Hand-tighten only. Do not over tighten.
8. Remove the caution label from the WeatherStation Instrument's socket.
Remove the protective cover from the connector. (Save the cap to protect the
connector, when the WeatherStation Instrument is removed.) Plug the 9-pin
connector into the WeatherStation Instrument. The alignment key on the
connector fits into a notch in the base of the WeatherStation Instrument.
9. Grasp the lower housing of the WeatherStation Instrument below the blue metal
plate. Being sure the alignment tabs are facing forward and parallel to the keel
(centerline) of the boat, slide the captive nut upward and screw it onto the base
of the WeatherStation Instrument (see Figures 4 and 5). Hand-tighten only. Do
not over tighten. Be careful NOT to rotate the WeatherStation Instrument or
loosen the nut assembly from the antenna mount/extension tube. Double check
to be sure the alignment tabs are still facing forward.
12
WeatherStation
connector

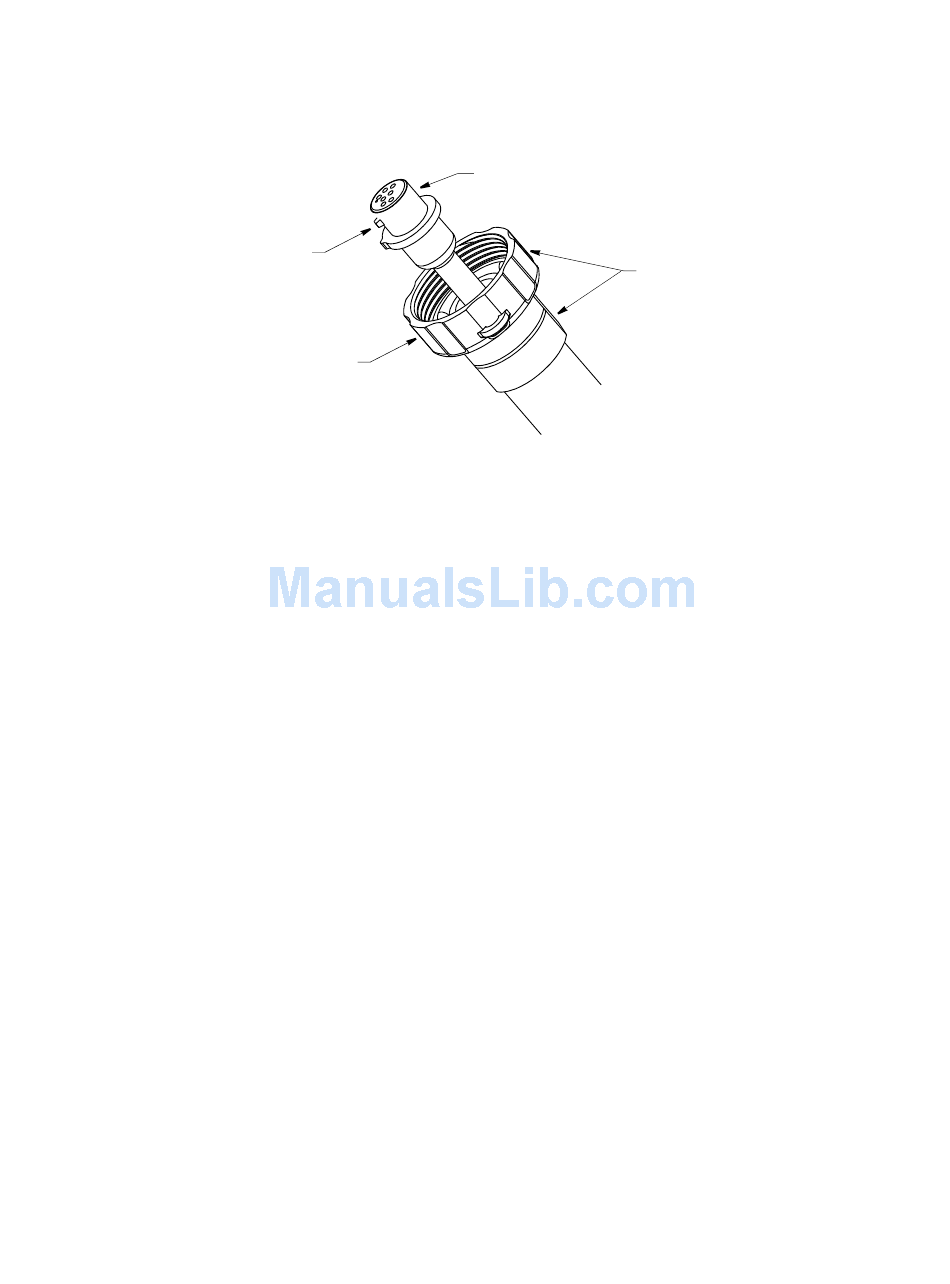

Figure 5. Connecting
Copyright © 2007 Airmar Technology Corp.
nut
assembly
