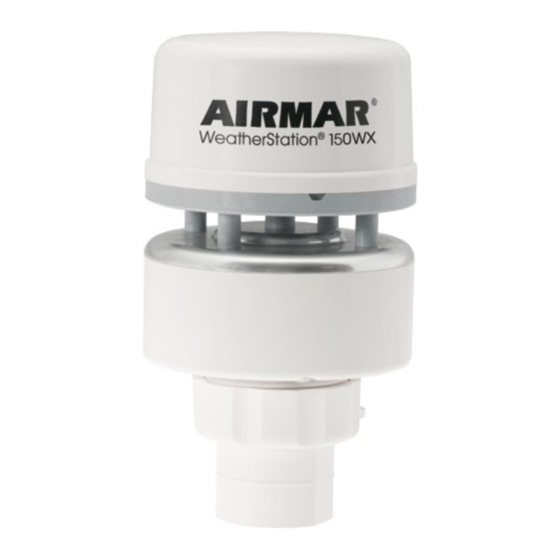

WX Series WeatherStation Technical Manual
(Derivative Products Include 300WXR, 300WX, 150WX, 100WX w/CAN,
This document is PRELIMINARY and Subject to Change.
PROPRIETARY AND CONFIDENTIAL
THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR
HEREWITH IS NOT TO BE REPRODUCED, USED, OR DISCLOSED
IN WHOLE OR IN PART TO ANYONE WITHOUT THE
PERMISSION OF AIRMAR TECHNOLOGY CORPORATION.
PRELIMINARY - DRAFT
WX Series WeatherStation Technical Manual revision 1.000
100WX)
Revision 1.000
05/11/11
- DRAFT -
AIRMAR Technology Corporation
35 Meadowbrook Drive
Milford, NH 03055-4613
(603) 673-9570
i
