- Page 1 ® PT1910MX / PT1915MU Touch Screen LCD Monitors USER’S GUIDE www.planar.com...
- Page 2 Important Recycle Instructions: Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.
-
Page 3: Table Of Contents
Table of Contents Usage Notice Precautions..................2 Introduction About Planar’s PT1910MX/PT1915MU..........3 Touch Screen for PT1910MX/PT1915MU……………..…………………………………….4 Package Overview ................5 Installation Product Overview................6 VESA Mount for your Monitor…………………………………………….8 Start Your Installation………………………………………………………9 Connecting the Display………………………………..…………………10 User Controls Front Panel Controls ................12 How to Use the OSD Menus ............13 On-Screen Display Menus ...............14... -
Page 4: Usage Notice
Usage Notice - To prevent the risk of fire or shock hazards, do not Warning expose this product to rain or moisture. - Please do not open or disassemble the product as Warning this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 5: Introduction

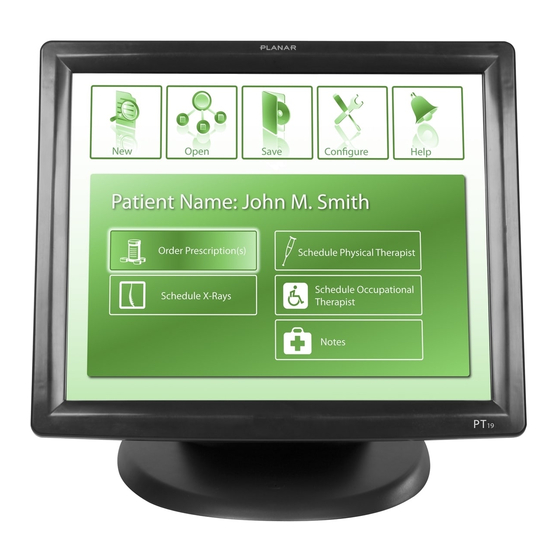

Introduction About PT1910MX/PT1915MU The PT1910MX / PT1915MU is a 19” flat panel screen with an active matrix, thin-film transistor (TFT) liquid crystal display (LCD). Features include: Direct Analog signal input Direct Digital signal input Active matrix TFT LCD technology 1280x1024 SXGA resolution 19”... -
Page 6: Touch Screen For Pt1910Mx/Pt1915Mu
Touch Screen for PT1910MX Analog 5-wire resistive touch screen for finger and stylus input Surface: Anti-glare treatment Interface: Dual RS-232 Serial/USB controller Durability: 35 million touches at a single point Hardness of surface: 3H Typical Operating force: 40g~200g when using a silicon rubber tipped pen with a 1 mm diameter minimum and a hardness of 60 degree. -
Page 7: Package Overview
Package Overview LCD Display Power Cord VGA Signal Cable DVI Signal Cable Audio-in Cable RS-232 Cable (PT1910MX) USB Cable - Type A to B Touch Screen Driver User’s Guide Installation CD-ROM Landing Strip DC Power Supply (sold separately) -
Page 8: Installation
Installation Product Overview Front View PT1910MX Bottom View (Without Stand) - Page 9 PT1915MU Bottom View (Without Stand) Kensington Security Slot The monitor can be secured to your desk or any other fixed object with Kensington lock security products. The Kensington lock is not included.
-
Page 10: Vesa Mount For Your Monitor
VESA Mount your monitor This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface Standard which defines a physical mounting interface for flat panel monitors, and corresponding standards for flat panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is located on the back of your monitor. -
Page 11: Start Your Installation
Start Your Installation Remove the Back Cover Please follow these instructions to remove the cover on the back panel of the LCD so that you can hookup the cables to associated connector. Figure A. 1. To remove the back cover, follow the arrows in Figure A and pull out with your fingers and the cover should be removed from the stand. -
Page 12: Connecting The Display
Connecting the Display (Figure 11.1) To setup this display, please refer to the following figure and procedures. 1. Be sure all equipment is turned off. 2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (11.1). - Page 13 Figure 11.1...
-
Page 14: User Controls
User Controls Front Panel Controls Control Function No / Icon MENU Menu button Display the OSD menus Select – To select the adjustment items from OSD menus. SELECT/AUTO Select/Auto Auto – To activate the “Auto Adjustment” function to obtain an optimum image. 1. -
Page 15: How To Use The Osd Menus
How to Use the OSD Menus Press the "MENU" button to pop up the “on-screen menu” and to select among the four Main Menus. 2. Choose the adjustment items by pressing the “Select/Auto” button. 3. Adjust the value of the adjustment items by pressing the “ ”or “ “ button. 1. -
Page 16: On-Screen Display Menus
On-Screen Display Menus Main OSD Menu: MAIN MENU SUB MENU Function Description Auto-Adjustment Choose this function to obtain an optimum No/Yes image. Contrast Adjust the contrast of the display image. 0-100 Brightness Adjusts the brightness of the image. 0-100 Horizontal Position Changes the horizontal position of the image. -
Page 17: Appendix
Appendix Troubleshooting If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. Check that all the I/O and power connectors are correctly and well connected as described in the “Installation”... -
Page 18: Warning Signal
There may be three sources for this problem. Please check the cable connections or contact Planar for more information. No Signal This message means that the LCD Display has been powered on but it cannot receive any signal from the computer graphics card. -
Page 19: Product Dimensions
Product Dimensions... -
Page 20: Compatibility Modes
48.4 56.5 VESA XGA 1024 x 768 60.0 VESA XGA 1024 x 768 64.0 VESA SXGA 1280X1024 80.0 VESA SXGA 1280X1024 1280X960 1152X864 Apple Mac II 640 x 480 35.0 (PT1910MX only) Apple Mac 832 x 624 49.7 (PT1910MX only) -
Page 21: Touch Screen Driver Installation
PT1910MX Driver Install: Please Note: The PT1910MX is available with both RS232 and USB connections. The touch driver is located on the enclosed CD-ROM for these OS: Windows® VISTA 64/32 bits, XP, 2000, ME, 98, XP Embedded, Linux, WinCE.NET. - Page 22 Please note: Do not plug in both RS232 and USB cables. Doing so may cause a driver conflict, making your touch screen idle. If you are using USB connection on a PC using an operating system other than ® Windows Vista, follow the instructions below: 1.
-
Page 23: Product Registration And Technical Support
Product Registration and Technical Support Register Your Planar Products Today Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html. - Page 24 Tel: 1-866-PLANAR1 (866-752-6271) or +1 503-748-5799 outside the United States. Hours: 24 hours a day, 7 days a week © 2008 Planar Systems, Inc. 1/08 Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners.
