Dedicated Micros SD Range Installation And Operation Manual page 18

Step  Connecting DM Oracle, 00 & 00 Domes
A DM Oracle, 2040 or 2060 Dome can be connected via either co-axial telemetry or RS485 twisted
pair. If using co-axial the address switches should be set as:
Blue switch - F
Yellow switch - D
If the dome is being connected using RS485, the dome address should be set according to the
camera number of the SD (1-32).
Pin connections for RS485 connection to a Dennard dome on serial port 3/4 are:
Dome Cable
Yellow
Green

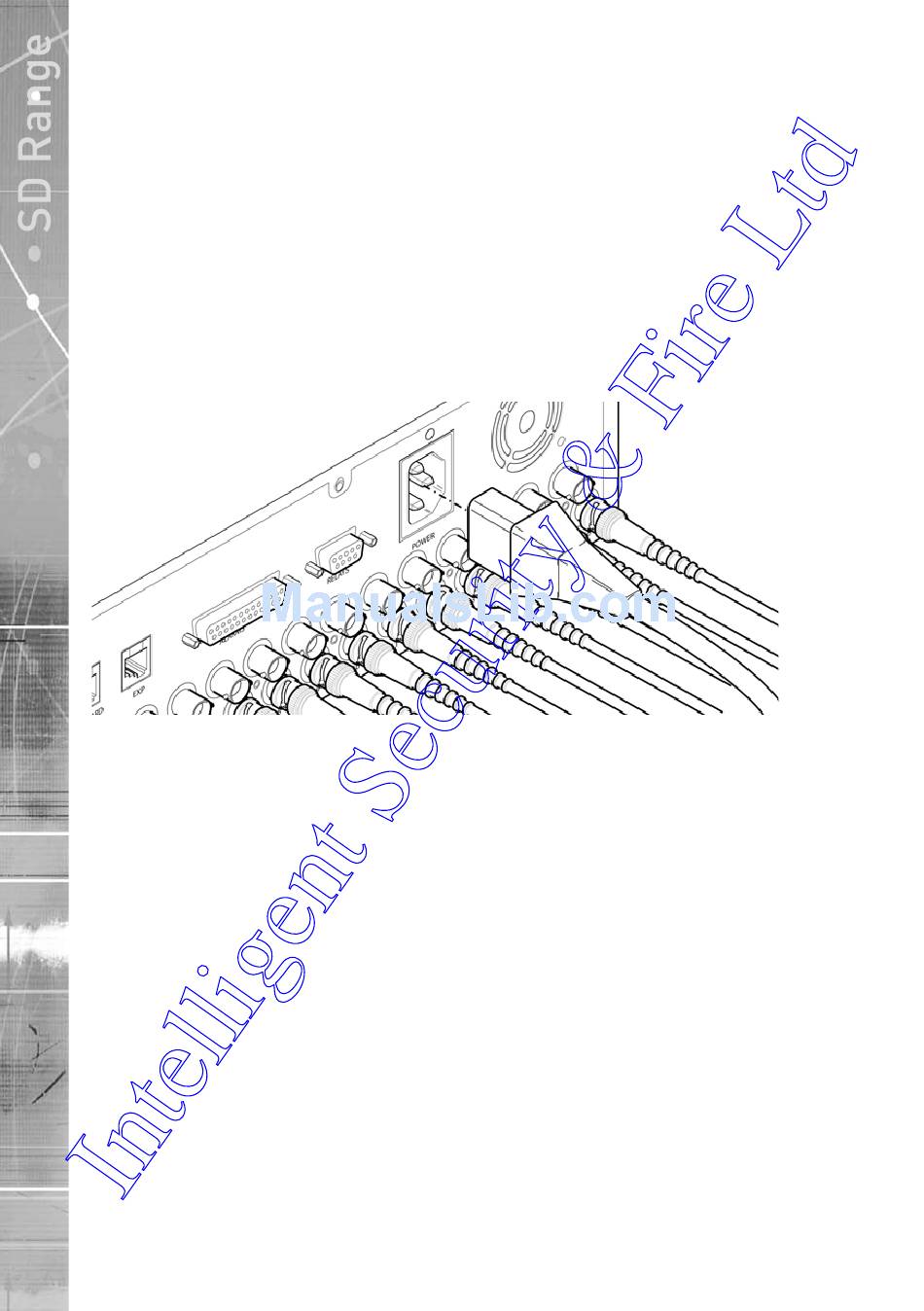

Step 10 Connecting Power
The SD has an internal power supply unit. Connect the mains lead to the unit and then to the wall
socket, or to a fused spur connection. To be compliant with wiring regulations in some countries, an
Alarm/Security device should be connected to a fused spur and not a wall outlet socket (check local
regulations before installation).
1
SD Serial Connector
1 TX+
9 TX-
Dedicated Micros ©2009
