INSTALLATION INSTRUCTIONS FOR INSTALLING BLOWER
KITS FOR USE WITh COUNTRY COLLECTION™ MODELS E260, C260, C30,
C60, CA60, C20 AND CA20 WOOD FIREPLACE INSERTS
KIT CONTENTS

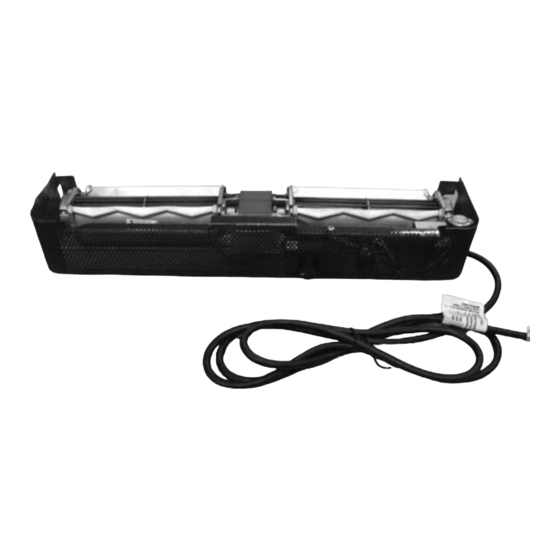

1 ea. Blower Assembly
1 ea. Instruction Sheet
TOOLS NEEDED
5/32 Allen Wrench Or T Handle Wrench
9/16" Socket Wrench
9/16" Open End Wrench
5/16" Open End Wrench
Large Flat Head Screwdriver
Figure 1 - Kit Contents
BLOWER KITS FOR MODELS C60, CA60, C20 AND CA20
Cat. No.
Model
h7907
WSINS-BLWR-B-SS
h7908
WSINS-BLWR-G-SS
h7909
WSINS-BLWR-N-SS
h790
WSINS-BLWR-BN-SS
h79
WSINS-BLWR-BG-SS
BLOWER KITS FOR MODELS E260, C260, AND C30
h792
WLINS-BLWR-B-SS
h793
WLINS-BLWR-G-SS
h794
WLINS-BLWR-N-SS
h795
WLINS-BLWR-BN-SS
h796
WLINS-BLWR-BG-SS
P/N 506033-36
Rev. NC, /2009
Description
Blower Insert Black
Blower Insert Gold
Blower Insert Nickle
Blower Insert Brushed Nickel
Blower Insert Brushed Gold
Blower Insert Black
Blower Insert Gold
Blower Insert Nickle
Blower Insert Brushed Nickle
Blower Insert Brushed Gold
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
COUNTRY COLLECTION™ WOOD FIREPLACE INSERTS
GENERAL INFORMATION
This optional blower kit can be installed to improve hot air distribution
throughout the room. The room air circulation blower kit comes with a
variable speed control (rheostat) and an snap switch which will provide
automatic thermal activation of the blower, when desired (see Blower
Operation on Page 4).
If you encounter any problems, need clarification of these instructions or
are not qualified to properly install this kit, contact your local distributor
or dealer.
Read this instruction sheet in its entirety before beginning the installa-
tion.
ALL WARNINGS AND PRECAUTIONS IN ThE INSTALLATION AND
OPERATION MANUAL PROVIDED WITh ThE APPLIANCE APPLY TO
ThESE INSTRUCTIONS.
ShUT DOWN ThE INSERT AND ALLOW IT TO COMPLETELY COOL
BEFORE PROCEEDING.
WARNINGS
The blower must be plugged directly into a properly
grounded three-prong receptacle, 20 VAC, 60 hz, single
phase. Do not cut or remove the grounding prong from
this plug. Do not route power cord under or in front of
appliance.
Installation must be in accordance with National Elec-
trical Code, ANSI/NFPA 70 - latest edition. In Canada,
the current CSA C22- Canadian Electrical Code - latest
edition.
DANGER: Disconnect power before servicing blower.
HEARTH PRODUCTS
KITS AND ACCESSORIES
BLOWER KITS
