Dual XML8110 Installation & Owner's Manual
In-dash am/fm/bluetooth ready docking station
Hide thumbs
Also See for XML8110:
- Installation & owner's manual (25 pages) ,
- Installation & owner's manual (25 pages)
Related Manuals for Dual XML8110
Summary of Contents for Dual XML8110

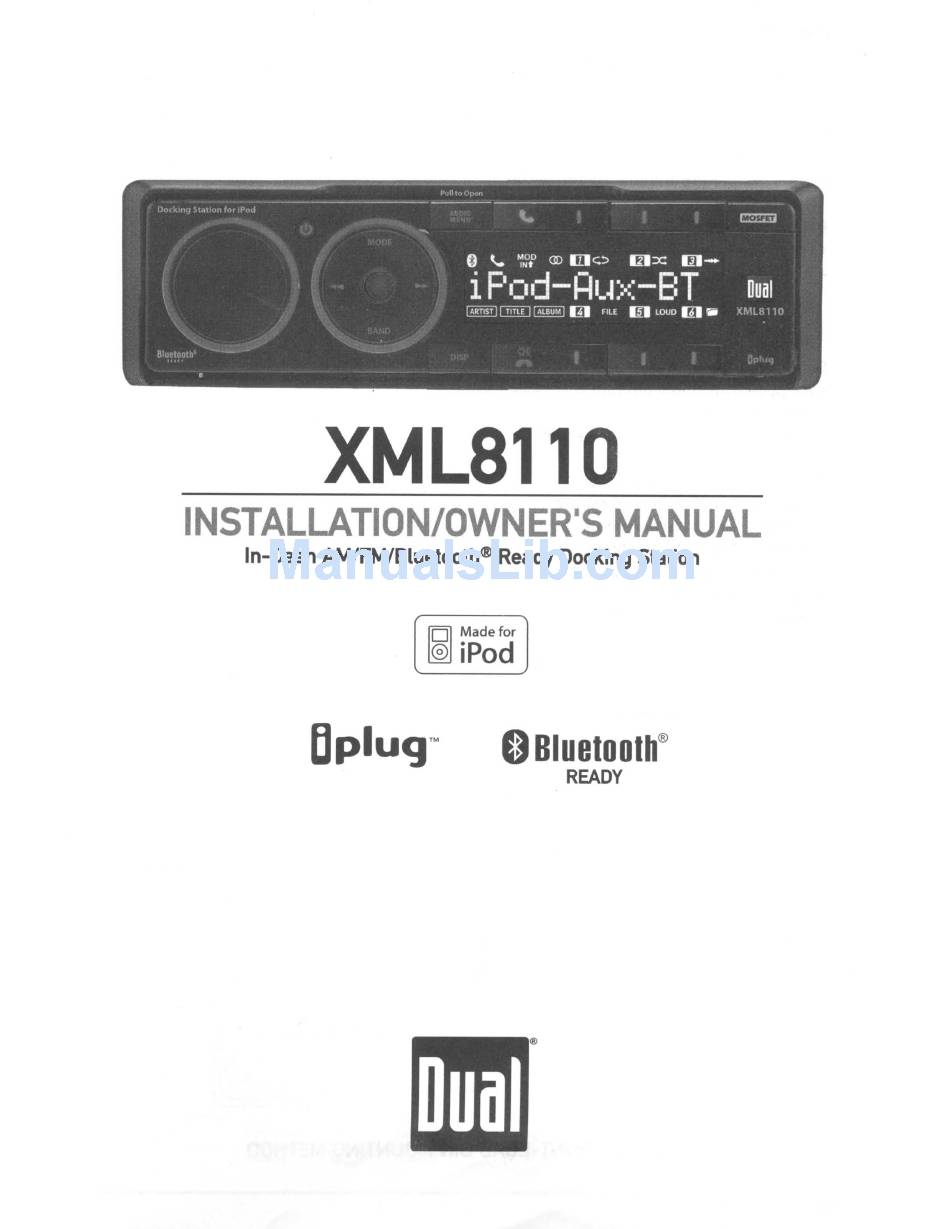

- Page 1 XML8110 INSTALLATION/OWNER1S MANUAL In-Dash AM/FM/Bluetooth® Ready Docking Station Madefor iPod Bluetooth® READY Dual...
- Page 2 . . XML8110 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures. such as from direct sunlight.
-
Page 3: Wiring Diagram
XML8110 INSTALLATION . . Wiring Diagram BLACK 8-pin Female Mini-DIN B'TIo46O Connection <sold " _.. tely) FRONT RCA Preamp Output RCA Preamp Connections REAR/SUB Preamp Output - - -..GREEN 8-pin Male Mini-DIN <_bIo) Emmlll Aa:usory Connoctlon ,..,--- RCA Auxiliary Input... - Page 4 XML811 0 OPERATION Control Locations - Receiver (Closed) Preset 3 Volume Preset 6 Power Preset 5 Tune / Track Down Preset4 Mode © ® End Call / Mute Audio / Menu Display Talk Tune / Track Up Preset 1 Band Preset 2...
- Page 5 XML8110 OPERATION . . Control Locations - Receiver (Open) Tune / Track Down LCD Display Dock for iPod® Reset End Call / Mute Expansion Slot Volume Down Tune / Track Up ® Volume Up Mode Talk Play / Pause...
-
Page 6: Control Locations - Remote
XML8110 OPERATION Control Locations - Remote Mode Key 9 Power (C»)/Select Mute / End Call Volume Up Key 0 / Display ® Audio / Menu Talk ® Tune / Track Up KeyS ® Volume Down Key 7 ® Sea n / PS / Key Preset 4 / Play / Pause ®... -
Page 7: General Operation
The clock will display 12-hour AM/PM time in USA frequency spacing mode (PM 10:00). In European frequency spacing mode. the clock will display 24-hour time (22:00). Expansion Slot The expansion slot provides an easy way to upgrade the XML8110 with new features. Check www.dualav.com for more details. -
Page 8: Setup Menu
. .XML811 0 OPERATION General Operation Setup Menu Press and hold AUDIO/MENU for more than 3 seconds to access the setup menu. then press AUDIO/MENU to cycle through menu options. When desired option appears in the display. rotate the volume knob left/right to adjust or activate the desired function. - Page 9 1m" XML8110 OPERATION General Operation Audio Press AUDIO/MENU momentarily to select between Bass. Treble. Balance. Fader. EO. Subwoofer* and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER' SOURCE LEVEL - , Bass Press AUDIO/MENU until Bass appears. then rotate the volume knob left/right to adjust (-6 minimum / +6 maximum).
-
Page 10: Am/Fm Tuner Operation
. . XML8110 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE ..or TUNE for more than one second to seek the next strong station. Manual Tuning Press TUNE ..or TUNE momentariLy to move radio frequency up or down one step at a time. Press and hoLd to advance quickLy. - Page 11 XML8110 OPERATION . . Dock for iPod - Operation To open the XML811 0 and use the dock. pull outward from the top of the front panel. The front panel will rotate open. Continue rotating the front panel downward. The front lIanel stops when it...
- Page 12 . . XML811 0 OPERATION Dock for iPod - Operation Some iPod devices have a thinner design. and For the 1st generation. 2nd generation and 4th may require changing the rear rubber support at generation iPod nano devices. the left side dock the back of the dock for the best fit.
-
Page 13: Operation Of Ipod
XML8110 OPERATION . . Operation of iPod Using the In-Dash Insert the iPod device into the XML811 D's Docking Station Dock for iPod following the instructions on pages 11 and 12. Control of iPod The iPod device can be controlled directly from the iPod device controls. -
Page 14: Bluetooth Operation
. . XML81100PERATION Bluetooth® Operation Overview Connecting a Bluetooth device requires first installing and connecting the Dual BTM60 Bluetooth interface module (sold separately). When connected to a Dual Bluetooth ready head unit. the BTMbO supports the HFP (hands-free profile). A2DP (advanced audio distribution profile) and AVRCP (audio video remote control profile). - Page 15 XML8110 OPERATION . . Bluetooth® Operation Press \,. once. "Enter Number" will be shown. then An "_" will appear on the display. Input the desired phone number using the 0-9. buttons on the *. # remote controL. Press \,. to begin dialing.
- Page 16 . . XML8110 OPERATION Bluetooth® Operation ~". Despription,: To view the 10 most recent calls. press \.. then press \. a second time. "Recent Calls" will be displayed. A list of the most recent missed. dialed. or received calls will appear.
- Page 17 After pairing. connecting and enabling streaming audio from a compatible mobile device. begin playing music using the music player on your mobile device. Once the music is playing. the following functions can be used to control music: XML8110 front panel: • The button will skip to the next available audio track.
-
Page 18: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. -
Page 19: Troubleshooting - General
XML8110 OPERATION Troubleshooting - General Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not tum on voltage (11-16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 20: Specifications
• • XML8110 OPERATION Specifications FM Tuner ng range: 87.5MHz-107.9MHz II· Usable sensitivity: 8.5dBf quieting sensitivity: 10dBf 50dB Stereo separation 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 22uV Frequency response: 30Hz-2.2kHz General Operating voltage: 11-16 VDC. negative ground... -
Page 21: Fcc Compliance
XML8110 OPERATION . - , - - - - ' Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received. including interference that may cause undesired operation. - Page 22 Toll Free: 1-866-382-5476 www.dualav.com ©201 0 Dual Electronics Corp. All rights reserved. iPod is a trademark of Apple Inc.. registered in the U.S. and other countries. "Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
- Page 23 Important iPod Dock Information The iPod dock includes two additional rubber support brackets that may be changed to accommodate the various sizes of iPod devices. Use the included rubber support brackets to adjust the iPod dock and securely fit your iPod into the dock. fj,r iPod Touch iPod Nano...
