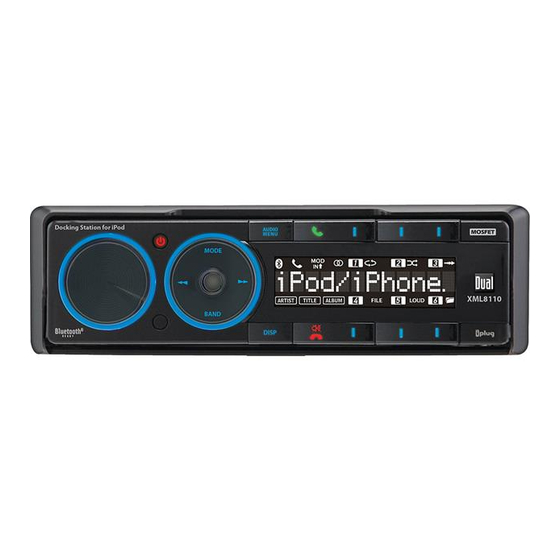

Dual XML8110 Installation & Owner's Manual
In-dash am/fm/bluetooth ready docking station for ipod, iplug
Hide thumbs
Also See for XML8110:
- Installation & owner's manual (25 pages) ,
- Installation & owner's manual (24 pages)
Related Manuals for Dual XML8110
Summary of Contents for Dual XML8110

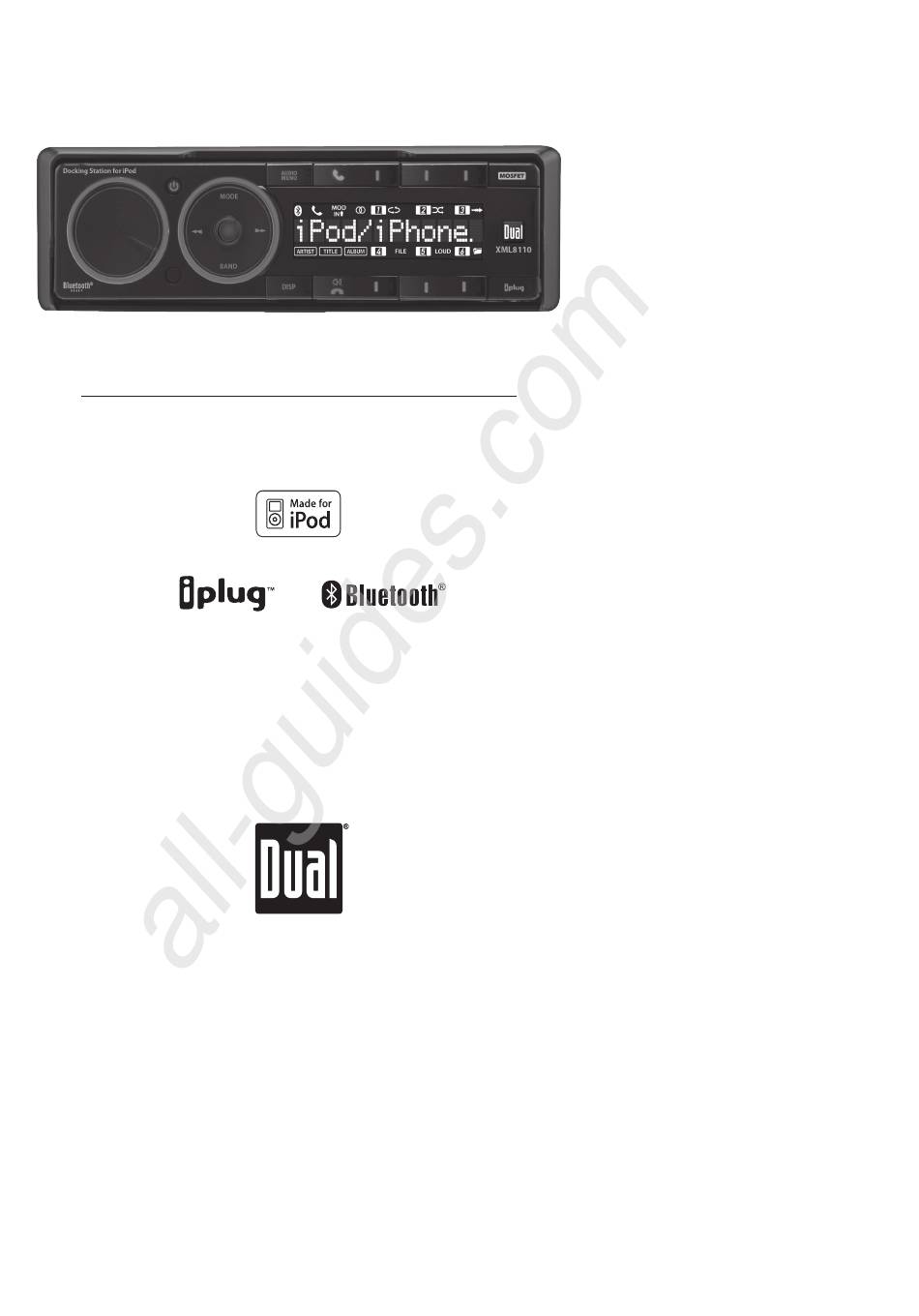

- Page 1 All manuals and user guides at all-guides.com XML8110 INSTALLATION/OWNER'S MANUAL In-Dash AM/FM/Bluetooth ® Ready Docking Station for iPod READY...
- Page 2 All manuals and user guides at all-guides.com XML8110 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
Steering Wheel Interface Input (PAC SWI-PS required) FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XML8110 uses one 10 amp ATM fuse located beside the wiring connector. - Page 4 All manuals and user guides at all-guides.com XML8110 OPERATION Control Locations - Receiver (Closed) Preset 3 Volume Preset 4 Power Preset 5 Tune / Track Down Preset 6 Mode End Call / Mute Audio / Menu Display Talk Tune / Track Up Preset 1 Band...
- Page 5 All manuals and user guides at all-guides.com XML8110 OPERATION Control Locations - Receiver (Open) Tune / Track Down LCD Display Reset iPod Dock End Call / Mute Expansion Slot Volume Down Tune / Track Up Volume Up Mode Talk Play / Pause...
-
Page 6: Control Locations - Remote
All manuals and user guides at all-guides.com XML8110 OPERATION Control Locations - Remote Mode Key 9 Power ( )/Select Mute / End Call Volume Up Key 0 / Display Audio / Menu Talk Tune / Track Up Key 8 Volume Down Key 7 Scan / PS / Key #... -
Page 7: General Operation
The clock will display 12-hour AM/PM time in USA frequency spacing mode (PM 10 : 00). In European frequency spacing mode, the clock will display 24-hour time (22:00). Expansion Slot The expansion slot provides an easy way to upgrade the XML8110 with new features. Check www.dualav.com for more details. -
Page 8: Setup Menu
All manuals and user guides at all-guides.com XML8110 OPERATION General Operation Setup Menu Press and hold AUDIO/MENU for more than 3 seconds to access the setup menu, then press AUDIO/MENU to cycle through menu options. When desired option appears in the display, rotate the volume knob left/right to adjust or activate the desired function. - Page 9 All manuals and user guides at all-guides.com XML8110 OPERATION General Operation Audio Press AUDIO/MENU momentarily to select between Bass, Treble, Balance, Fader, EQ, Subwoofer* and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER* SOURCE LEVEL Bass Press AUDIO/MENU until Bass appears, then rotate the volume knob left/right to adjust (-6 minimum / +6 maximum).
-
Page 10: Am/Fm Tuner Operation
All manuals and user guides at all-guides.com XML8110 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek the next strong station. Manual Tuning Press TUNE or TUNE momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly. - Page 11 All manuals and user guides at all-guides.com XML8110 OPERATION iPod Dock Operation To open the XML8110 and use the iPod dock, pull outward from the top of the front panel. The front panel will rotate open. Continue rotating the front panel downward. The front panel stops when it...
- Page 12 All manuals and user guides at all-guides.com XML8110 OPERATION iPod Dock Operation Some iPods have a thinner design, and may For the 1st generation, 2nd generation and 4th require changing the rear rubber support at the generation iPod Nano devices, the left side iPod back of the iPod dock for the best fit.
- Page 13 XML8110 OPERATION iPod Operation ® Using the In-Dash Insert the iPod into the XML8110's iPod Docking Station iPod Dock following the instructions on pages 11 and 12. iPod Control The iPod can be controlled directly from the iPod, or controlled using the inside panel buttons shown below: Song Select...
-
Page 14: Bluetooth Operation
The BTM60 device name is "DUAL_BTM60." The password for the DUAL BTM60 is 1234. Paired Devices List The XML8110 will remember the last 8 devices that were paried. To access the list of previously paired devices, follow these instructions: • Disconnect any mobile device that may be connected by pressing once. • Press DISP momentarily to cycle through the list of 8 previously paired devices. - Page 15 All manuals and user guides at all-guides.com XML8110 OPERATION Bluetooth Operation ® Description Function Press once. "Enter Number" will be shown, then An "_" will appear on the display. Input the desired phone number using the 0-9, *, # buttons on the Making a Phone Call...
- Page 16 All manuals and user guides at all-guides.com XML8110 OPERATION Bluetooth Operation ® Description Function To view the 10 most recent calls , press , then press a second time. "Recent Calls" will be displayed. A list of the most recent missed, dialed, or received calls will appear, sorted by time, beginning with the most recent call.
- Page 17 ® Bluetooth Streaming Audio Operation The XML8110 supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).
-
Page 18: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. -
Page 19: Troubleshooting - General
All manuals and user guides at all-guides.com XML8110 OPERATION Troubleshooting - General Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 20: Specifications
All manuals and user guides at all-guides.com XML8110 OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 22uV Frequency response: 30Hz-2.2kHz General Operating voltage: 11-16 VDC, negative ground... -
Page 21: Fcc Compliance
All manuals and user guides at all-guides.com XML8110 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 22 All manuals and user guides at all-guides.com Notes...
- Page 23 All manuals and user guides at all-guides.com Notes...
- Page 24 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under license.
