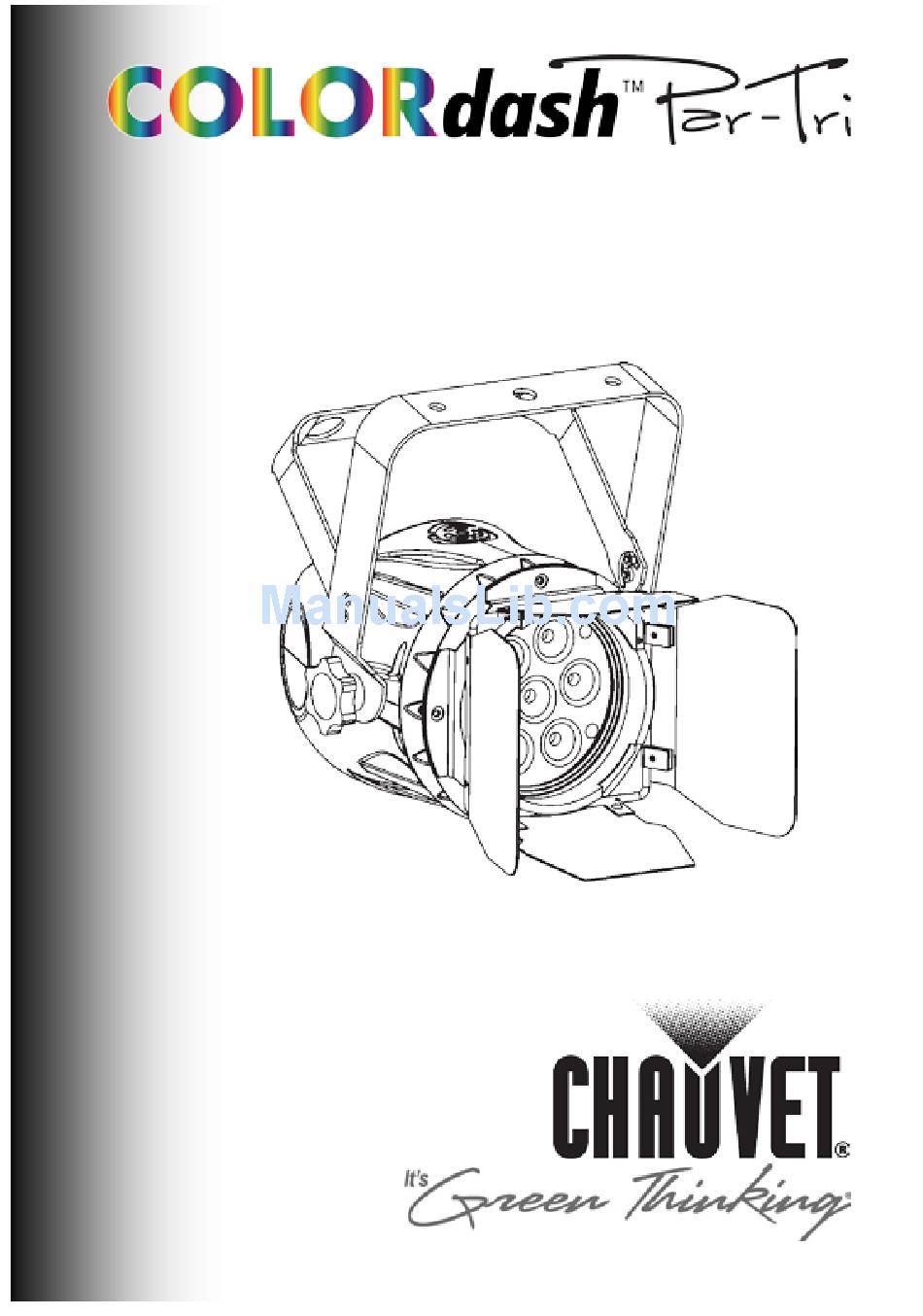

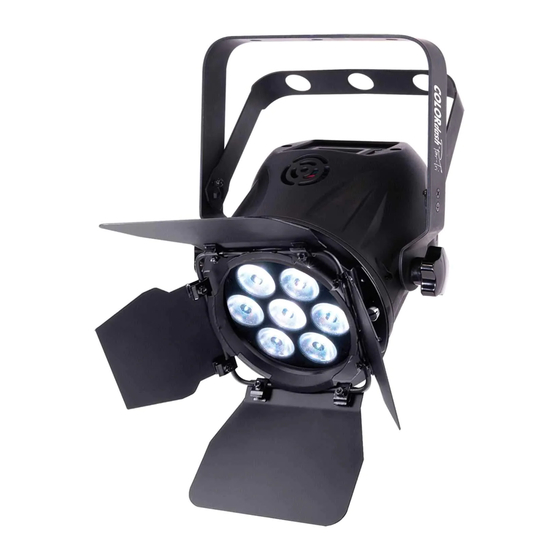

- Page 1 Quick Reference Guide...
-
Page 2: Safety Notes
COLORdash™ Par-Tri QRG About this The COLORdash™ Par-Tri Quick Reference Guide (QRG) only contains the product’s connection and mounting information as well as the menu Guide options and the DMX values. · This Quick Reference Guide DOES NOT replace the product’s User Manual, which you can download from www.chauvetlighting.com. - Page 3 COLORdash™ Par-Tri QRG · Features 3, 4, or 9-channel tri color LED wash fixture with ID addressing · Operating modes: 3-channel: RGB control 4-channel: RGB, dimmer 9-channel: RGB, dimmer, color macro, strobe, auto/custom, auto speed, ID addressing · RGB color mixing with or without DMX control ·...
- Page 4 COLORdash™ Par-Tri QRG Mounting Before mounting this product, read the Safety Notes at the beginning of this guide and in the product’s user manual. Then, follow the mounting procedure indicated in the Setup chapter of the User Manual. Product Mounting Diagram Floor Mounting Overhead Mounting...
-
Page 5: Menu Options
COLORdash™ Par-Tri QRG Menu Options Main Level Level Level Description Combine red, green, and blue to generate a Green 000~255 custom color. STATIC Blue Strobe 00~20 Select a strobe frequency (0~20 Hz) Auto 1~10 Choose from 10 automatic programs AUTO 0~255 Custom 1~10 Choose from 10 customizable programs... -
Page 6: Dmx Values
COLORdash™ Par-Tri QRG DMX Values STAGE 1 Channel Function Value Percent/Setting 000 ó 255 0~100% Dimmer 0~100% 000 ó 255 Step Time Only if playing a custom program Green 0~100% 000 ó 255 Fade Time Only if playing a custom program 000 ó... - Page 7 COLORdash™ Par-Tri QRG STAGE 1 Channel Function Value Setting Value Setting Value Setting (Cont.) 000 ó 009 All IDs ID 23 ID 46 010 ó 019 ID 1 ID 24 ID 47 020 ó 029 ID 2 ID 25 ID 48 030 ó...
- Page 8 Follow their instructions to request support or to return a product. Visit our website for contact details. COLORdash™ Par-Tri QRG – Rev. 03 © Copyright 2012 CHAUVET® All rights reserved. Printed in the P. R. C. Page 8 of 8...
