Summary of Contents for Chauvet COLORband Pix

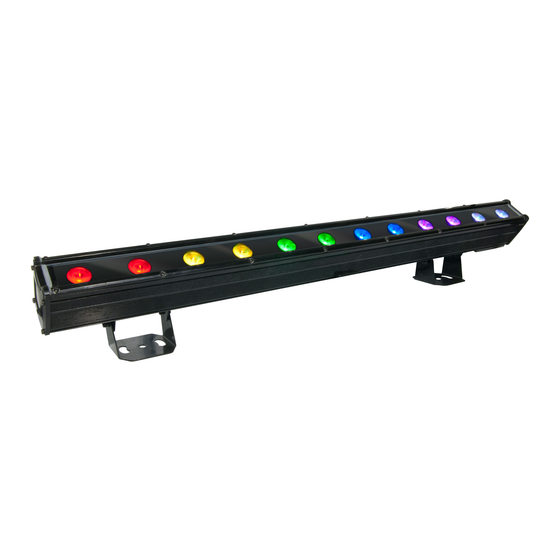

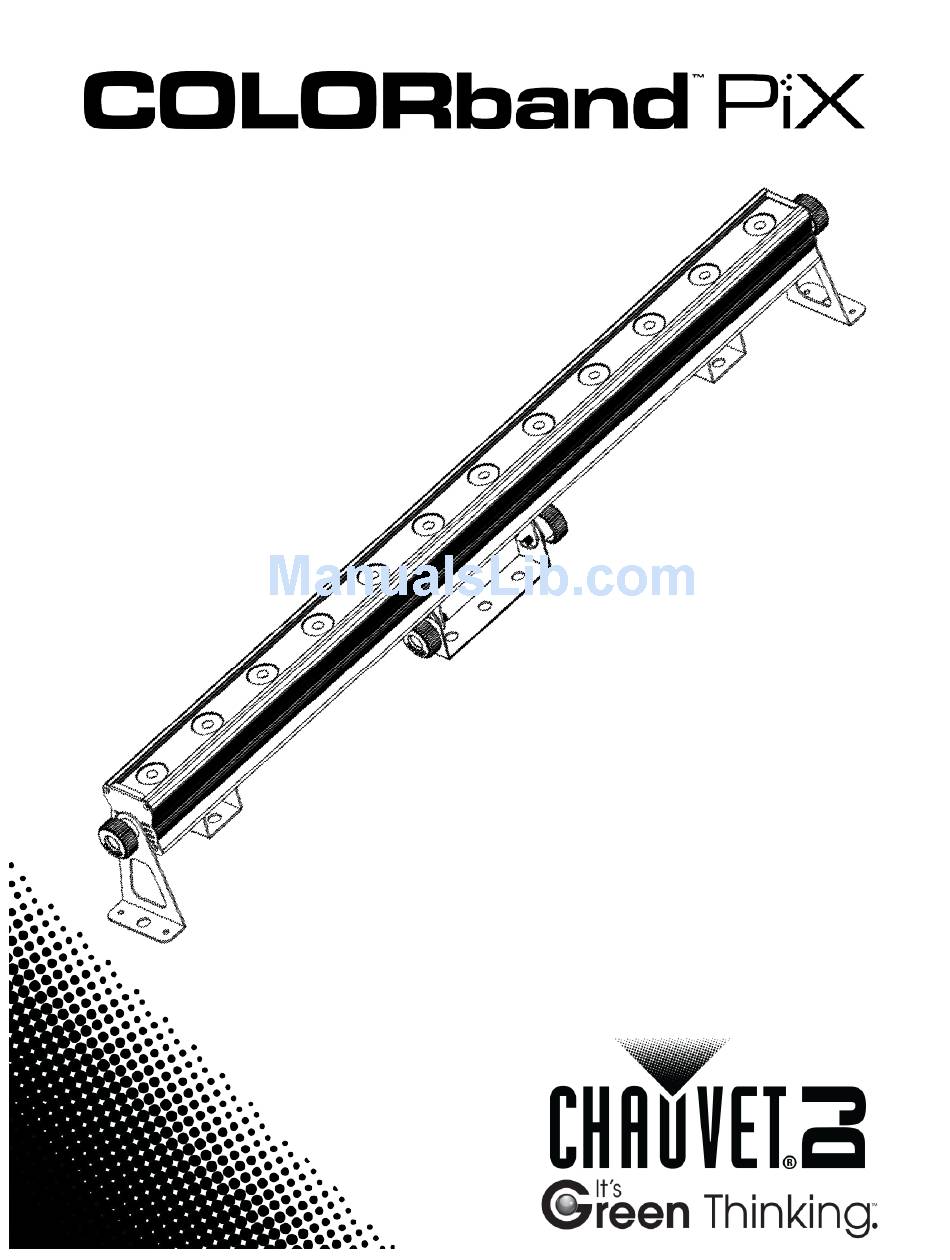

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ................3 What Is Included ....................3 Unpacking Instructions ..................3 Claims ........................3 Text Conventions ....................3 Icons ........................3 Document Information ..................3 Product at a Glance ..................4 Safety Notes ...................... 4 2. -
Page 3: Before You Begin
CHAUVET®. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection. -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Overview U-Bracket (x2) Power Out Bracket Adjustment Knob Fuser Holder Power In Microphone 3-pin DMX Connectors Display and Control 5-pin DMX Connectors Buttons Sound Sensitivity Knob Dimensions COLORband™ PiX User Manual Rev. 6 Page 5 of 21... -
Page 6: Setup
3. S ETUP AC Power The COLORband™ PiX has an auto-ranging power supply and can work with an input voltage range of 100–240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Power Linking
The power-linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 8: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in Safety Notes. Orientation The COLORband™ PiX may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Cbb-6 Instructions
When rigging the product onto truss, you should use a mounting clamp with the appropriate weight capacity. The CBB-6 bracket has multiple 13 mm holes which are appropriate for this purpose. CHAUVET® recommends the CLP-15 heavy-duty clamp (sold separately). COLORband™ PiX User Manual Rev. 6 Page 9 of 21... -
Page 10: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function Press to find an operation mode or to back out of the current menu <MENU> option <UP> Press to scroll up the list of options or to find a higher value <DOWN>... -
Page 11: Configuration (Dmx)
Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. (DMX) Turn the product on. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. -
Page 12: Dmx Channel Assignments And Values
DMX Channel Assignments and Values Channel Function Value Setting 7-CH 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 015 No function Color Macros 016 ó 255 Color Macros Speed (slow to fast) 000 ó... -
Page 13: 6-Ch
Channel Function Value Setting Zone 6-CH 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue Channel Function Value Setting Zone 9-CH 000 ó... -
Page 14: 12-Ch
Channel Function Value Setting Zone 12-CH 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó... -
Page 15: 36-Ch
Channel Function Value Setting Zone 36-CH 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó... -
Page 16: Configuration (Standalone)
Configuration Set the product in one of the standalone modes to control without a DMX controller. · Connect the product to a suitable power outlet. (Standalone) Never connect a product that is operating in any standalone mode (either Static, Auto, or Sound-Active) to a DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. -
Page 17: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single COLORband™ PiX unit (the master) to control the actions of one or more COLORband™ PiX units (the slaves) without the need of a Mode DMX controller. The master unit will be set to operate in either Automatic or Sound Active mode, while the slave units will be set to operate in Slave mode. -
Page 18: Technical Information
5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life. To maintain optimum performance and Maintenance minimize wear, clean lighting products at least twice a month. However, be aware that usage and environmental conditions are contributing factors to increasing the cleaning frequency. -
Page 19: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number. -
Page 20: Contact Us
Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - CHAUVET® Europe Ltd. General Information Technical Support Address:Unit 1C Email: Brookhill Road Industrial uktech@chauvetlighting.com Estate Pinxton, Nottingham, UK World Wide Web NG16 6NT www.chauvetlighting.co.uk... -
Page 21: Technical Specifications
6. T ECHNICAL PECIFICATIONS Length Width Height Weight Dimensions and Weight 41.6 in (1,057 mm) 2.5 in (64 mm) 6.1 in (154 mm) 8.9 lb (4 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (internal)
