ROTH Sub ZeRO

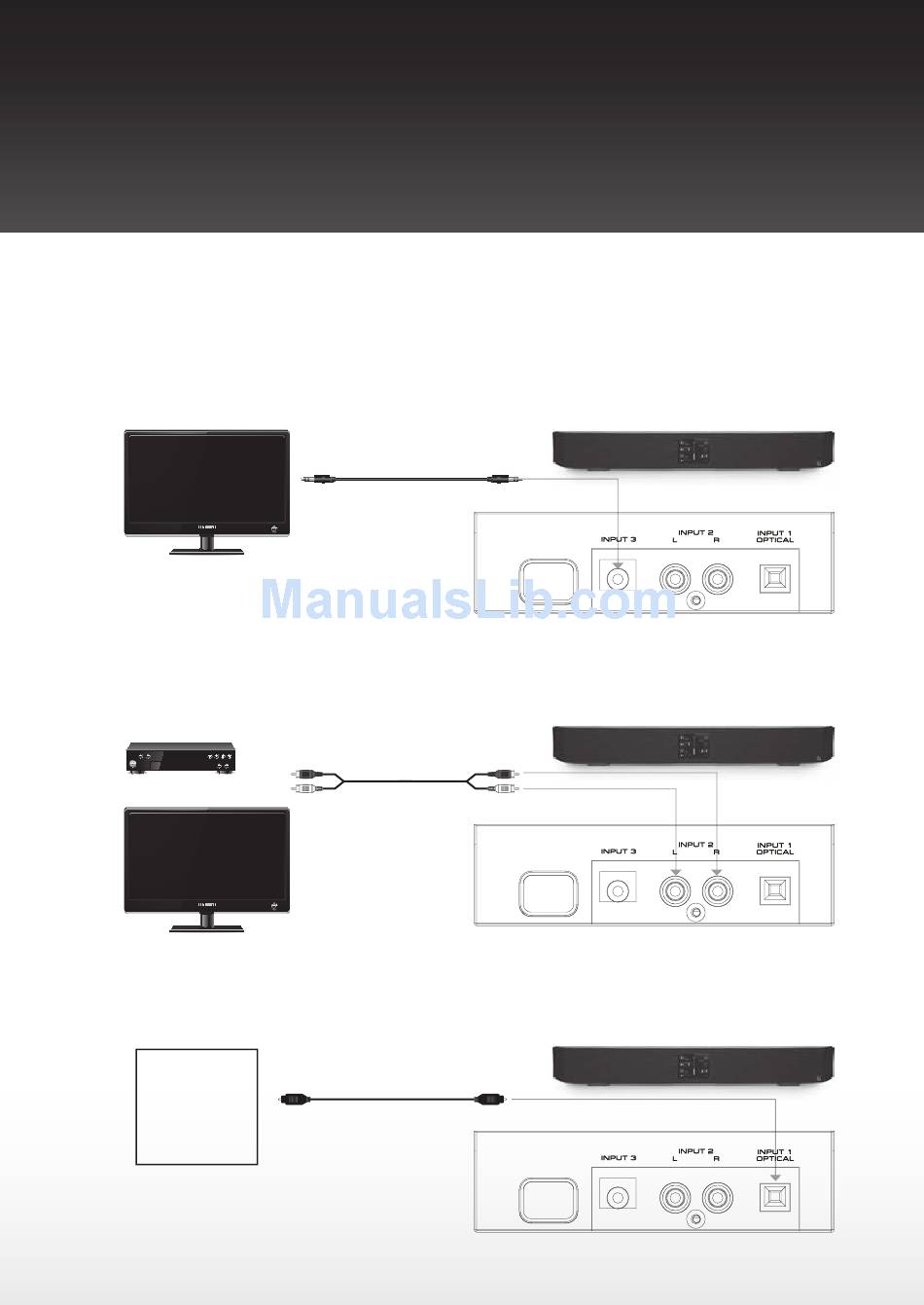

Hookup Diagram

TV audio Hookup - Case 1
If your TV has a headphone output, plug the supplied 3.5 mm mini stereo cable into the headphone output from your
TV and plug the other end to the Input 3 jack on the back of your Sub Zero.
TV audio Hookup - Case 2
If your TV does not have a headphone output and you are using a set top box, plug one end of the included RCA cable
into the audio outputs from your set top box and plug the other end into Input 2 on the back of your Sub Zero.
Set Top box
or TV
audio Hookup - other Device
The Input 1 can be attached to Blu-ray, DVD or CD players or Home Video Game systems.
other Device
Blu-ray Players
DVD Players
CD Players
Home Video Game
Systems
12 | Roth Sub Zero User Manual
To Headphone
output of TV
3.5 mm Mini Stereo Cable
(Supplied)
To Audio Output of
Set Top Box or TV
RCA Cable (Supplied)
[Note]
Some TV's do not have a headphone
output but do have Audio outputs with
RCA jacks. You can connect them to
Input 2 by using the RCA cable. This will
also work fine except that the Sub Zero
volume must now be adjusted using the
Sub Zero remote.
To Audio Output
Optical Cable
To Input 3 (Mini Stereo
jack) of Sub Zero
To Input 2 (RCA jack) of Sub Zero
To Input 1 (Optical) of Sub Zero
Sub Zero
Sub Zero Rear Connectors
Sub Zero
Sub Zero Rear Connectors
Sub Zero
Sub Zero Rear Connectors
