Wall Mounting

Determine how you want to set up your Sub Zero Soundbar.
The Sub Zero Soundbar comes with a wall mounting kit to be used with a wall mounted TV. The input jacks and power
cord are designed to allow a flush mount where the Soundbar extends only 89 mm from the wall. Also, the Soundbar is
provided with an extra-long power cord so the user may hide the AC line by using a wall track that could be painted to
match the wall.
Follow these steps to mount the Sub Zero
Soundbar on a wall:

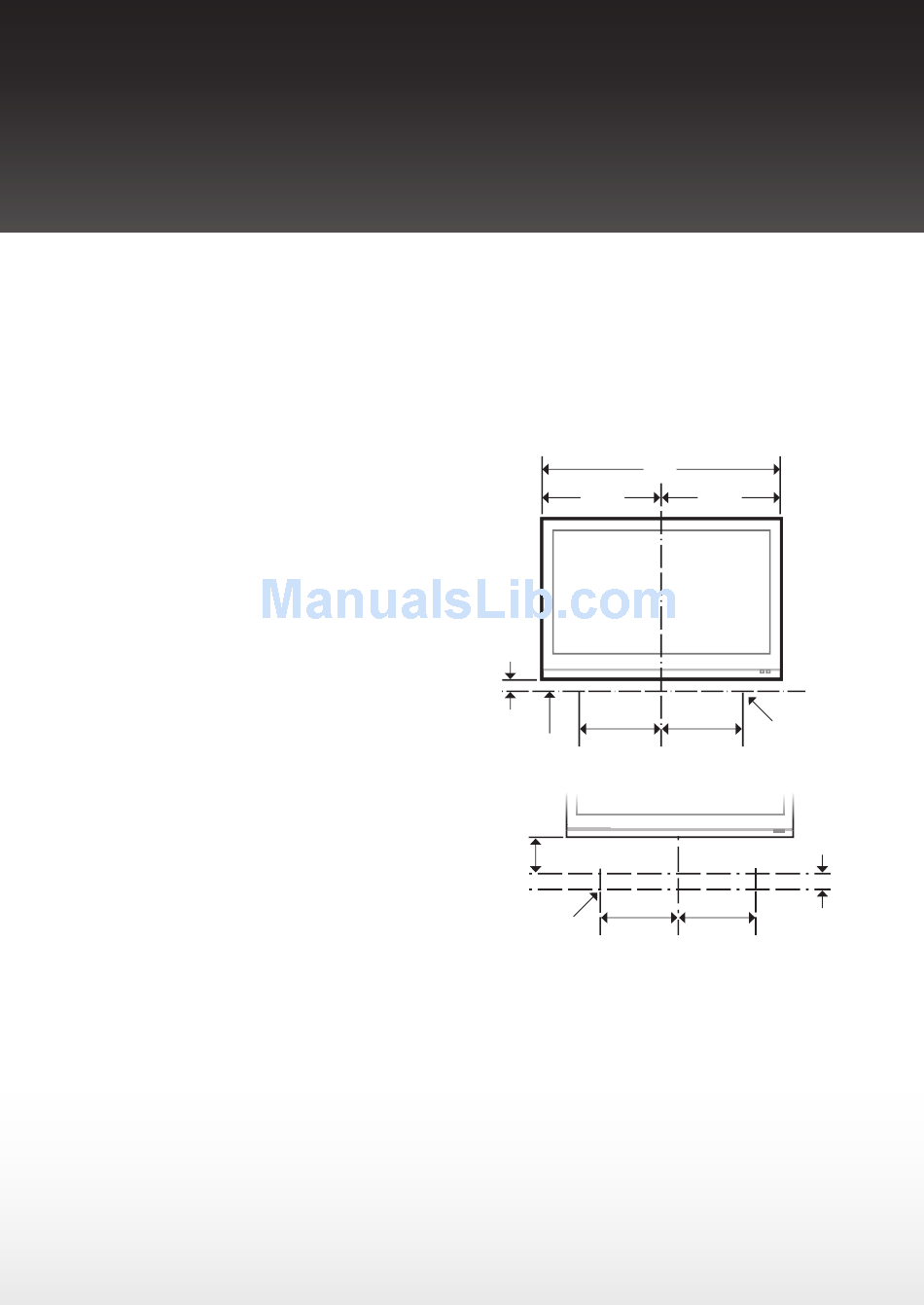

1. Measure the width of the TV – the Sub Zero should be
mounted so it is centered with the TV. Divide the TV
width measurement by 2 - that will be the centerline
distance from the edges of the TV.
2. If the Sub Zero is to be mounted below the TV, measure
from the TV edge to the centerline distance on the open
wall below the TV.
Mark the distance with a pencil 1-1/2" (38 mm) or
more below the bottom of the TV.
3. Make a pencil mark 10-7/16" (265 mm) on each
side of the centerline. Make sure the mark is the
same distance down from the TV on each side.
4. Make another mark 25/32" (20 mm) directly
below the 1st mark on each side.
5. Drill a ¼" hole in the wall at each of the four
pencil marks.
6. Hammer the 4 wall mount anchors into the holes
- the anchors should be flush with the wall.
7. Now, using a Philips screwdriver, screw
the wall brackets in place with the
screws going into the anchors.
8. Tilting the bottom of the Sub Zero
slightly away from the wall, guide the
brackets into the matching holes on the
back of the Sub Zero. The Sub Zero is
now securely wall mounted.
8 | Roth Sub Zero User Manual
+
1-1/2"
or more
2. Make a pencil mark
1-1/2" or more below the
bottom of TV.
1-1/2"
or more
4. Make another pencil mark
on each side of centerline.
The supplied mounting kit can be used for typical drywall construction. Mounting to wood, concrete,
brick or other types of wall construction will require different hardware. Roth AV recommends seeking
professional assistance for such installations. The instructions on this page and the supplied wall mount kit
are only for the vertical wall mount. Professional assistance is required for other mounting or installation
X"
X/2" X/2"
1. Find centerline
of TV.
+
10-7/16" 10-7/16"
+ +
+ +
10-7/16" 10-7/16"
orientations (e.g., horizontal, tilted).
3. Make a pencil
mark on each side
of centerline.
25/32"
