Sub Zero III
TV Soundbar with HDMI and bluetooth aptX

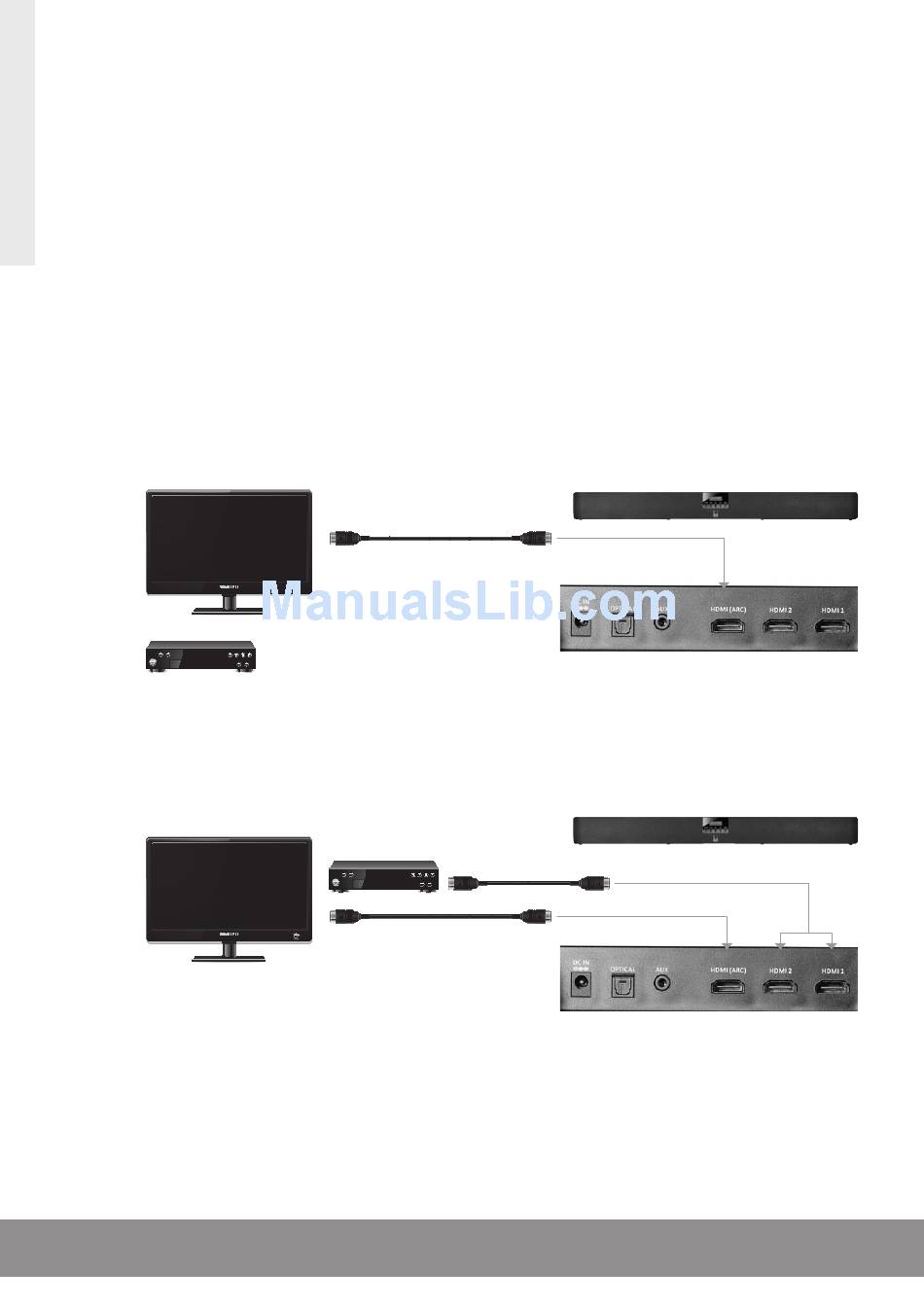

Hookup Diagram

TV/DVD/Set Top Box hookup - Case 1 hDmi ARC
HDMI with ARC - Use this output to connect your SZIII to your TV. Please note if your TV is not ARC (Audio Return
Channel) enabled you will not be able to connect this way - if this is the case, please refer to either case 2 or 3 below.
TV
Set Top Box
TV/DVD/Set Top Box - Case 2 hDmi
HDMI Inputs 1 & 2 - Use these inputs to connect any HDMI enabled device - you will also have to
connect an HDMI lead via ARC to you TV as this will act as an output to stream video to your TV.
TV
10 | Roth SUB ZERO III User Manual
To HDMI (ARC)
connection of TV
HDMI Cable
Set Top Box
To any HDMI enabled device
HDMI Cable
To HDMI (ARC)
connection
of TV
To HDMI (ARC) connection
of Sub Zero III
HDMI Cable
To HDMI (ARC) connection of Sub Zero III
Sub Zero iii
Sub Zero III Rear Connectors
Sub Zero iii
To HDMI inputs of Sub Zero III
Sub Zero III Rear Connectors
