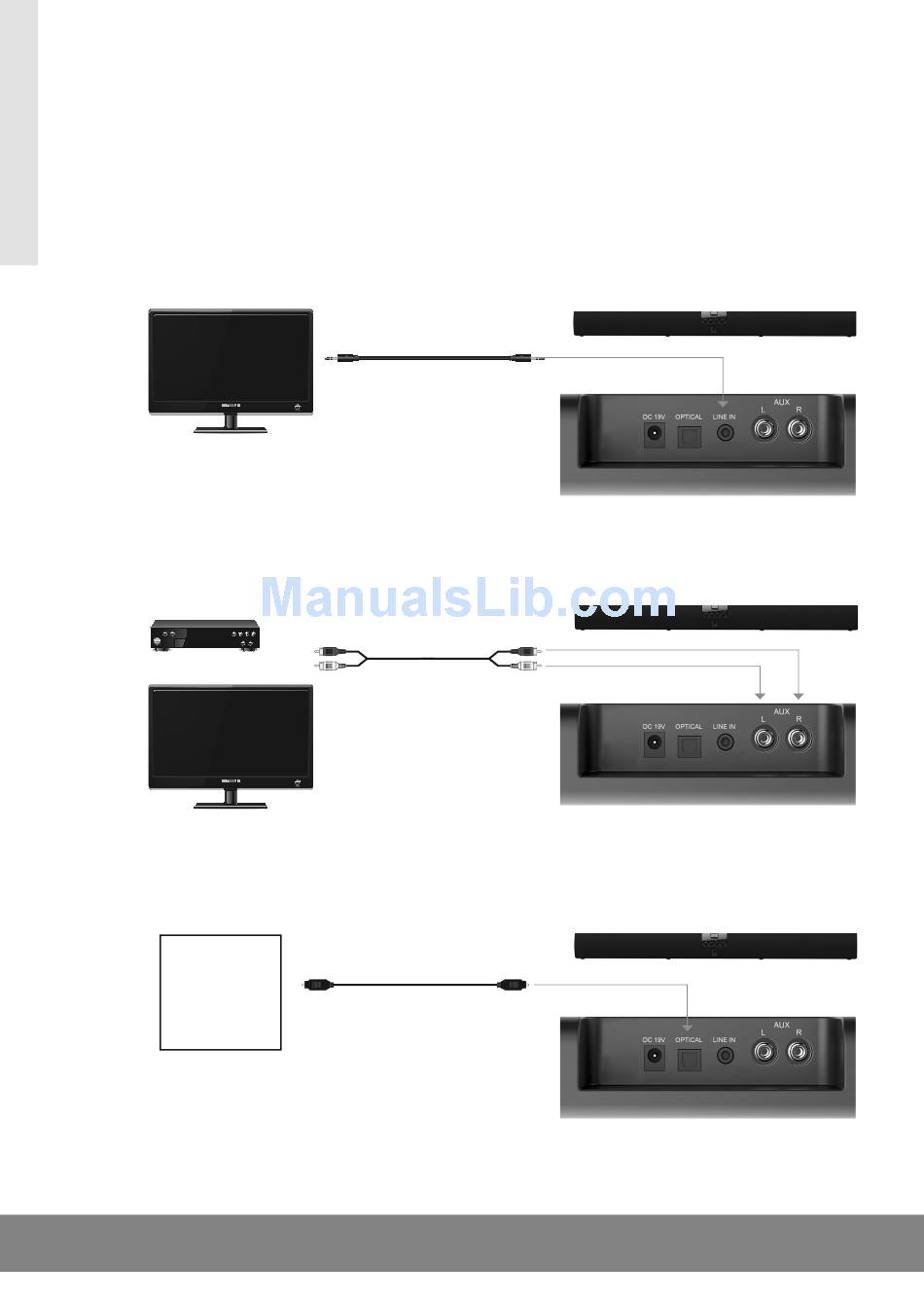

Hookup Diagram

TV Audio hookup - Case 1
If your TV has a headphone output, plug a 3.5 mm mini stereo cable into the headphone output from your TV and plug the other end
to the Input 2 jack on the back of your Sub Zero II.
TV Audio hookup - Case 2
If your TV does not have a headphone output and you are using a set top box, plug one end of an RCA cable into the outputs from your
top box and plug the other end into Input 1 on the back of your Sub Zero II.
Set Top Box
Or TV
Audio hookup - Other Device
The input 3 can be attached to Blu-ray, DVD or CD players or Home Video Game systems.
Other Device
Blu-ray Players
DVD Players
CD Players
Home Video
Game Systems
12 | Roth SUB ZERO II User Manual
To Headphone
output of TV
3.5 mm Mini Stereo Cable
(Supplied)
To Audio Output of Set
Top Box or TV
RCA Cable (Supplied)
[Note]
Some TV's do not have a headphone output
but do have Audio outputs with RCA jacks.
You can connect them to Input 1 by using
the RCA cable. This will also work fine except
that the Sub Zero II volume must now be
adjusted using the Sub Zero II remote.
To Audio Output
Optical Cable
To Input 2 (Mini Stereo
jack) of Sub Zero II
To Input 1 (RCA jack) of Sub Zero II
To Input 3 (Optical) of Sub Zero II
Sub Zero ii
Sub Zero II Rear Connectors
Sub Zero ii
Sub Zero II Rear Connectors
Sub Zero ii
Sub Zero II Rear Connectors
