  • Page 1: Auto Volume Layout Examples

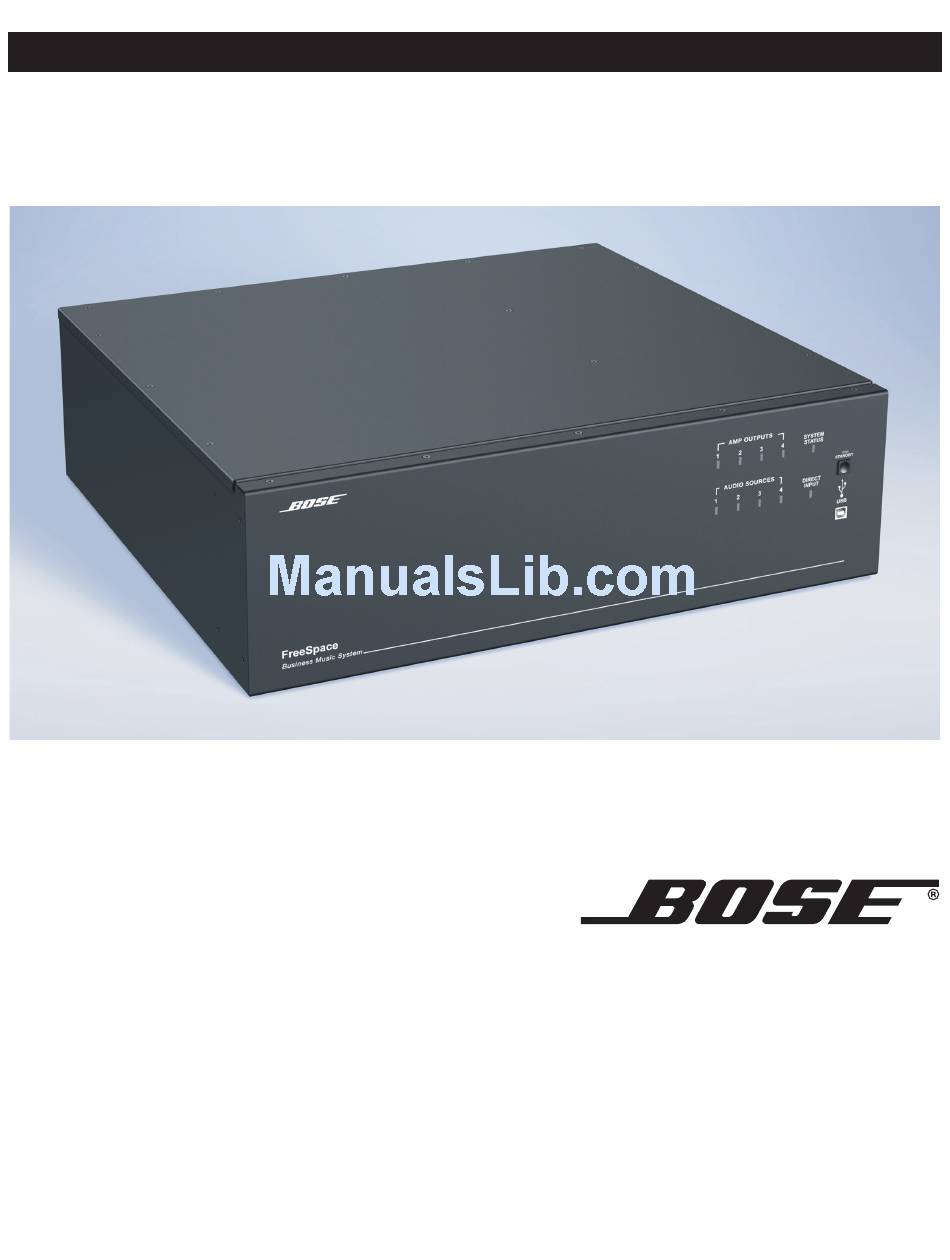

    FreeSpace E-4 Business Music System ® OWNER ’S GUIDE...

  • Page 2: Table Of Contents

    1.0 Introduction ....... 13 5.0 Using FreeSpace ® System Installer™ Software . . . 34 1.1 The Bose ® FreeSpace ®...
  • Page 3 Contents 8.4 Common problems ..... . 67 8.4.1 Communications port error ... 67 8.4.2 No audio in zone .

  • Page 4: Freespace

    3.0 E-4 Hardware Description 3.1 Front panel AMP OUTPUTS SYSTEM STATUS STANDBY AUDIO SOURCES DIRECT INPUT FreeSpace Business Music System 3.1.1 Controls AUDIO SOURCES – These LEDs indicate the operating status of the four input sources: STANDBY – The STANDBY button switches the unit between standby and active.

  • Page 5: Rear Panel

    This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1)This device may not cause harmful interference and (2)this device must accept any interference Bose Corporation, Framingham, MA 01701-9168 received,including interference which may cause undesired operation. Made in the U.S.A.

  • Page 6: Hardware Installation

    The following accessories are shipped with the E-4 unit in the • Make sure that air can circulate freely behind, beside, and FreeSpace E-4 System Accessory Kit (PC030105). above the unit. Allow six inches on all sides. • 2-terminal input connectors (6) – For wiring Installer’s Note: Do not allow the chassis to exceed the...

  • Page 7: Rack Mounting The E-4 Unit

    4.0 Hardware Installation 4.5 Rack mounting the E-4 unit Required accessory: FreeSpace ® E-4 System Rack Mount Kit (PC029858) (8) #8-32 x 1/2 in Rack ears Attaching rack ears to the E-4 chassis The E-4 unit requires three 1.75" (4.4 cm) rack space units with a 16"...

  • Page 8: Installing Accessories

    4.0 Hardware Installation 4.6 Installing accessories 4.6.2 User interfaces Required accessory: FreeSpace E-4 System User Interface Kit 4.6.1 Sensing microphones [PC029856 (U.S.), PC029857 (Euro)] or Required accessory: FreeSpace E-4 Auto Volume Interface Kit [PC030101 (U.S.), PC030102 (Euro)] FreeSpace ® E-4 System Auto Volume Mic Kit [PC029859 (U.S.),...
  • Page 9 4.0 Hardware Installation Keypad schematic: Recommended cable lengths: RJ-45 2000 ft (610 m) max. One wall plate 1 2 3 4 5 6 7 8 using CAT 5 +5VD +5VD .33µF 1300 ft (396 m) max. Two wall plates using CAT 5 +5VD Volume Up Disabling keypad keys:...

  • Page 10: System Wiring

    4.0 Hardware Installation 4.7 System wiring 4.7.3 User interface connections Connect the user interface from each zone to the appropriate Installer’s Note: Disconnect the E-4 unit from the AC WALL PLATE CONNECTION jack. (mains) power before making any input/output connections. Installer’s Note: Only use standard ethernet (Cat 5) cable to connect the user interface to the E-4 unit.

  • Page 11: Line 1/Line 2 Source Input

    4.0 Hardware Installation 4.7.5 LINE 1/LINE 2 source input 4.7.6 AUX MIC/LINE 3 source input Audio sources can be connected to the LINE 1 and LINE 2 inputs A microphone or an audio source can be connected to the MIC/ using one of the following cable types.

  • Page 12: Page/Mic/Line 4 Source Input

    4.0 Hardware Installation 4.7.7 PAGE/MIC/LINE 4 source input 4.7.8 DIRECT IN/CONTROL source input A microphone or an audio source can be connected to the PAGE/ A microphone or an audio source can be connected to the MIC/LINE 4 input using one of the following cable types. DIRECT IN input using one of the following cable types.

  • Page 13: Amplifier Zone Out Outputs

    4.0 Hardware Installation 4.7.9 Amplifier ZONE OUT outputs 4.7.10 Output voltage setting (70/100V) Speaker systems in up to four zones can be connected to the Check the OUTPUT VOLTAGE switch setting and change if ZONE OUT amplifier outputs. needed. OUTPUT Installer’s Note: Please notice the polarity markings on VOLTAGE the ZONE OUT 1-4 connectors.

  • Page 14: Zone 4 Line Out Output

    Bose ® amplifier installed for a large zone. The 12V selected for 220-240VAC. control output is used to connect to Bose amplifier sequence inputs. Fuse box configuration The fuse box is configured at the factory according to the specifi-...
  • Page 15 ©2003 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA 268134 AM Rev.01 JN31022...
