Gefen CAT-5 Quick Start Manual

1-800-545-6900
CAT-5 WALL PLATE EXTENDER FOR
HDMI 1.3 QUICK START GUIDE
Congratulations on your purchase of the Gefen CAT-5 Wall Plate Extender
for HDMI 1.3. Your complete satisfaction is very important to us. Please
read these instructions thoroughly before installing and operating your new
extension cable.
Installation:
1. Connect one CAT-5e or CAT-6 to the Cable 1 port on the Output wall
plate jack and connect the opposite end of the CAT-5e or CAT-6 cable
to the Cable 1 port on the Input wall plate jack.
2. Connect one CAT-5e or CAT-6 to the Cable 2 port on the Output wall
plate jack and connect the opposite end of the CAT-5e or CAT-6 cable
to the Cable 2 port on the Input wall plate jack.
3. Connect an HDMI cable from the Input wall plate jack to your source.
4. Connect an HDMI cable from the Output wall plate jack to your display.

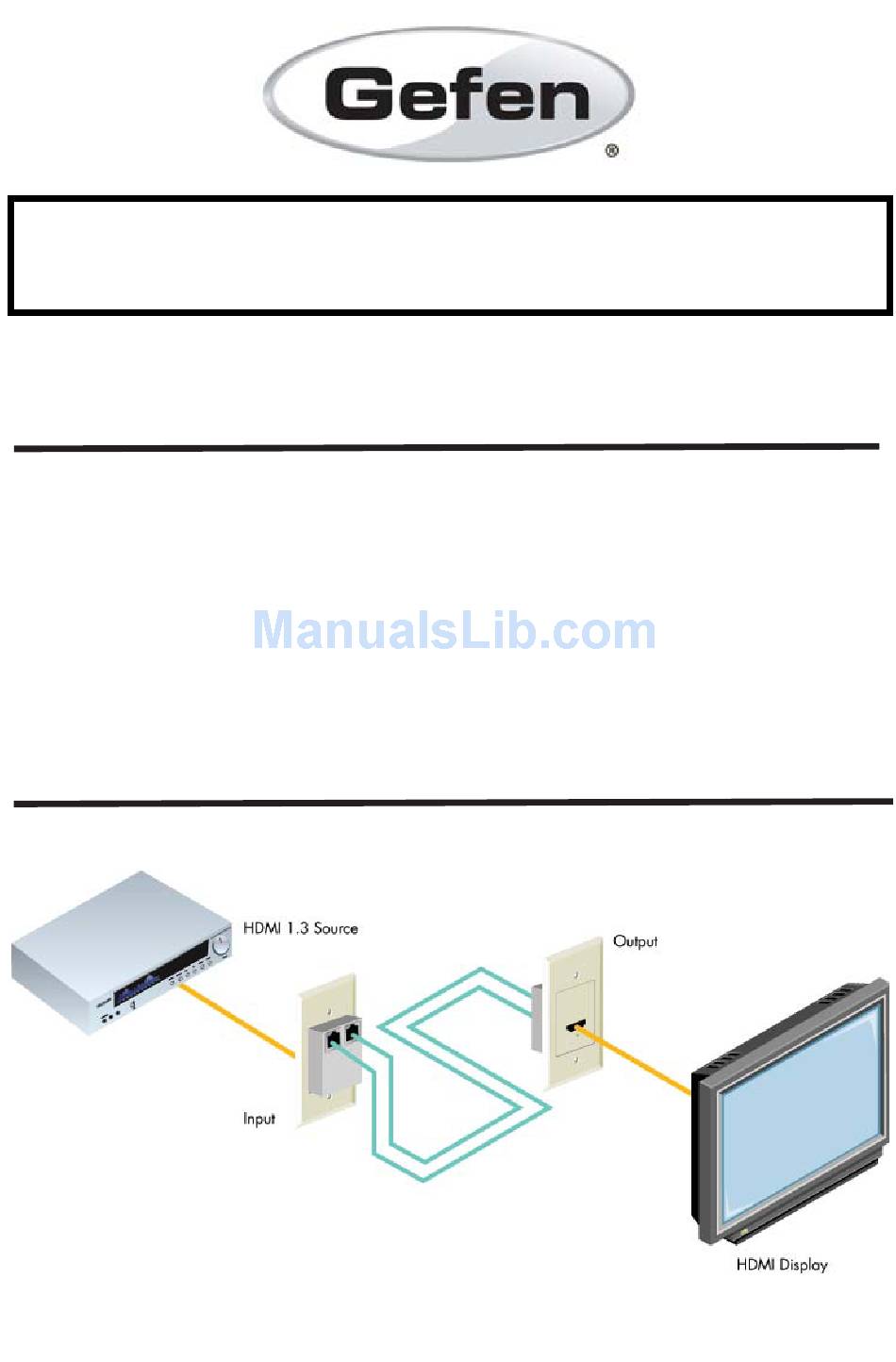

Connection Diagram
